2  From Capture to Pixel - Sampling, Quantization, and Connectivity

This chapter deepens the understanding of the digital image, transitioning from the physical nature of capture to its discrete mathematical representation. We investigate how light becomes data and how the spatial organization of pixels defines the neighborhood relations and connectivity essential for advanced Computer Vision (CV) algorithms.

2.1 Objectives

At the end of this chapter, you will be able to:

• Explain the physical model of image formation based on illumination and reflectance.
• Differentiate the mechanisms of human vision and digital sensors.
• Understand the processes of sampling (discretization of space) and quantization (discretization of intensity).
• Describe the topological relationships between pixels: neighborhood, adjacency, connectivity, and distances.

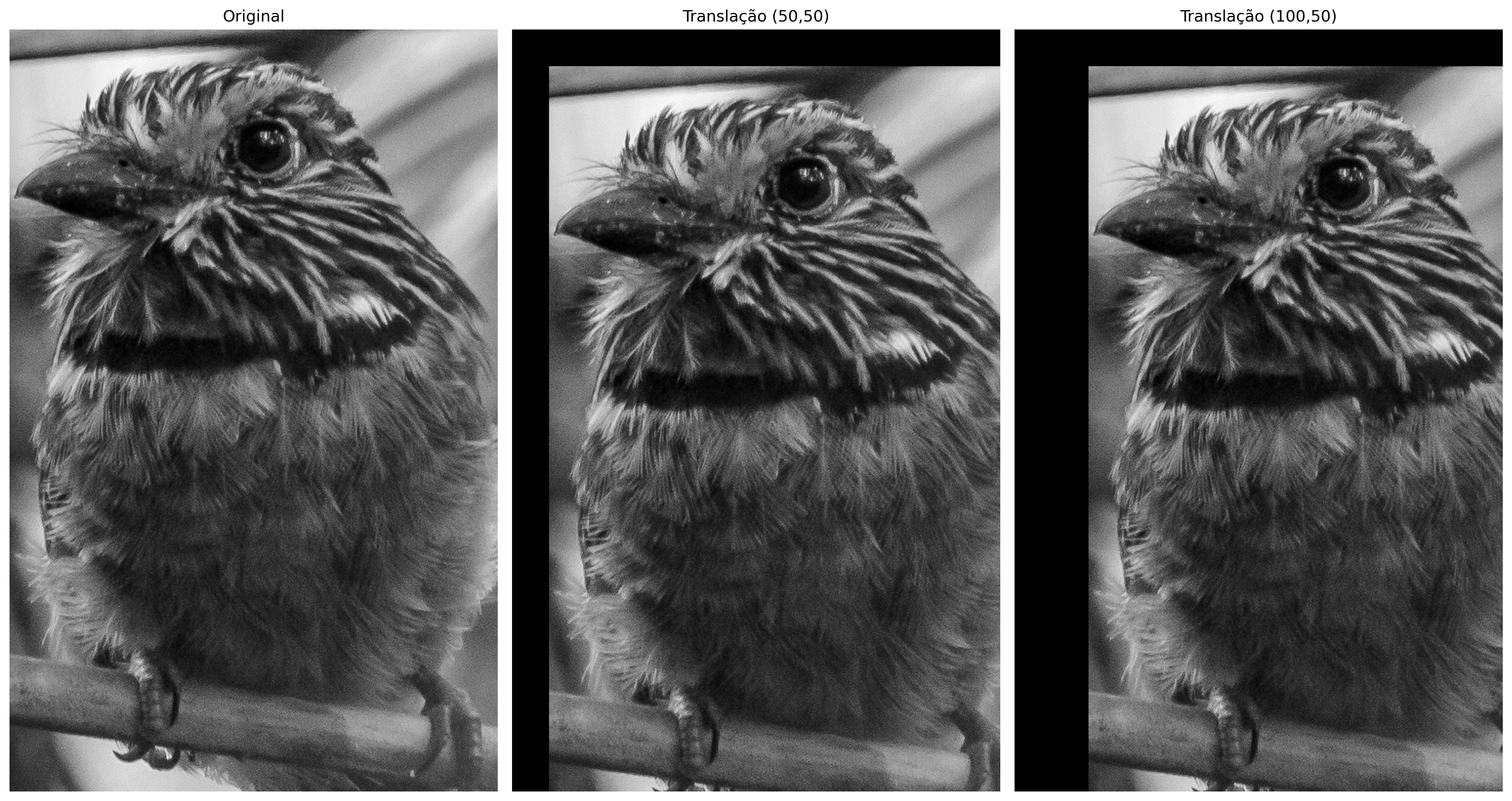

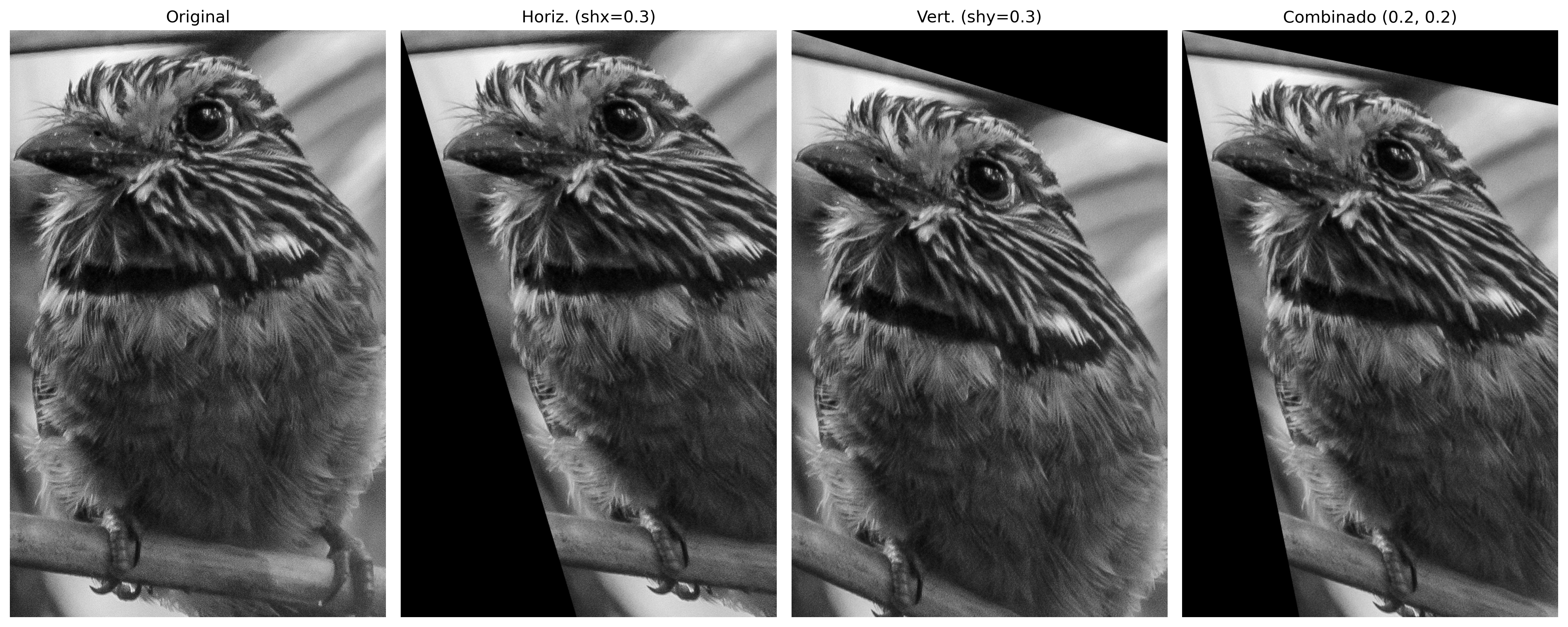

• Perform basic geometric transformations (translation, rotation, scaling) while preserving quality.
• Visualize in practice the effects of varying spatial resolution and bit depth.

2.2 The Eye and the Camera - Elements of Visual Perception

The formation of a digital image begins with the capture of light reflected by objects. As illustrated in Figure 2.1, both the human eye and digital cameras follow similar optical principles to focus light onto a sensitive surface, although they employ distinct biological and electronic mechanisms for signal transduction.

2.2.1 Human vision

The eye functions as a complex optical system: light passes through the cornea, the aqueous humor, the pupil (controlled by the iris), and the lens — which adjusts focus dynamically — until it reaches the retina. In the retina, photoreceptors are found: the cones (≈6 million), concentrated in the fovea, are responsible for color and detail vision, while the rods (≈120 million) ensure vision under low illumination (scotopic vision), detecting only shades of gray. The blind spot is the region from which the optic nerve originates, lacking receptors.

2.2.2 Digital sensors

In cameras, image sensors play the role of the retina. The two most common types are the CCD (Charge-Coupled Device) and the CMOS (Complementary Metal-Oxide-Semiconductor). The sensor is composed of an array of photosites (pixels) that accumulate electrical charge proportional to the incident light.

For color reconstruction, the Bayer Filter is used, a matrix of color filters that allows each pixel to capture only one color component: red, green, or blue (RGGB - Red, Green, Green, Blue). Subsequently, an ADC (Analog-to-Digital Converter) quantizes this charge into numerical values, defined by a bit depth (e.g., 8 bits, resulting in 256 intensity levels).

NoteCuriosity

Although the human eye has millions of receptors, high-definition resolution is confined to the fovea (central vision), equivalent to approximately \(120 \times 120\) pixels. The perception of a complete scene in high resolution is the result of intensive post-processing performed by the brain.

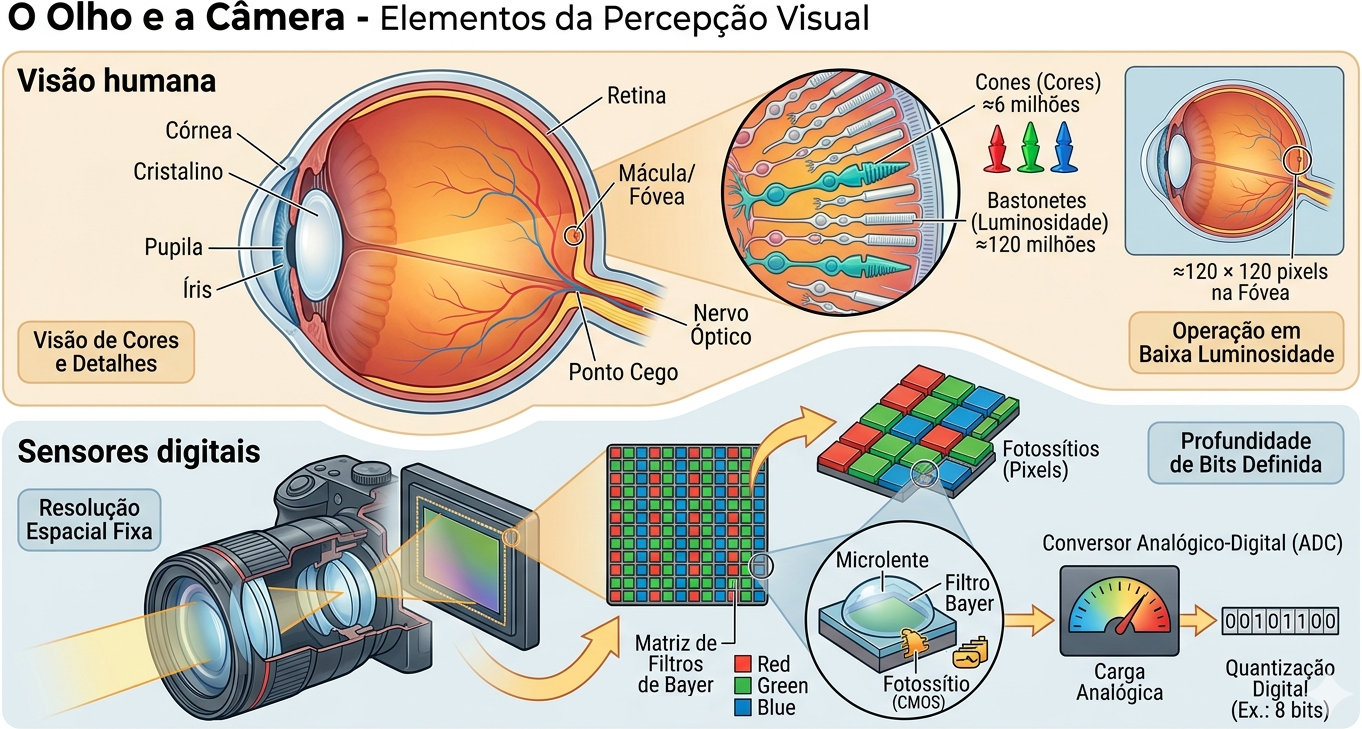

Figure 2.1: Didactic comparison between the biological and electronic visual systems: at the top, the anatomy of the human eye highlighting the retina and photoreceptors (cones and rods); below, the structure of a digital camera detailing the CMOS sensor, the Bayer filter array (RGGB), and the digital quantization process carried out by the ADC.

2.3 Optical Illusions: The Challenges of Visual Perception

While digital sensors capture light intensity in a linear and objective manner, the human visual system interprets the scene based on context, prior experiences, and biological survival mechanisms. Optical illusions are not “errors” of the eye but evidence of the intense brain post-processing carried out in the visual cortex.

2.3.1 Ambiguity and Context

The brain constantly seeks to make sense of ambiguous patterns. In the example of the Rubin Vase (see Figure 2.2), perception alternates between the figure (vase) and the background (two faces), demonstrating that we cannot process both interpretations simultaneously. The Shepard Elephant illusion, in turn, plays on our inability to reconcile contour lines that suggest volume in logically impossible positions.

2.3.2 Brightness and Local Contrast

Many illusions arise from lateral inhibition, a mechanism by which neighboring neurons in the retina compete with one another to enhance edges. In the Scintillating Grid, “ghostly” dark spots seem to appear at the white intersections due to this local contrast processing.

The Adelson Checker Shadow illusion is perhaps the most striking for computer vision: square “A” and square “B” have exactly the same gray value in the sensor (or digital file), but the brain “corrects” the brightness of “B” by understanding that it lies under a cast shadow, perceiving it as lighter.

2.3.3 Geometry and Perspective

Depth perception can be deceived by geometric constructions that challenge three-dimensional logic from a specific viewing angle. The Schröder Staircase exploits perspective ambiguity to create an object that appears to ascend or descend depending on how it is observed, highlighting how our interpretation of “up” and “down” depends on the vanishing point.

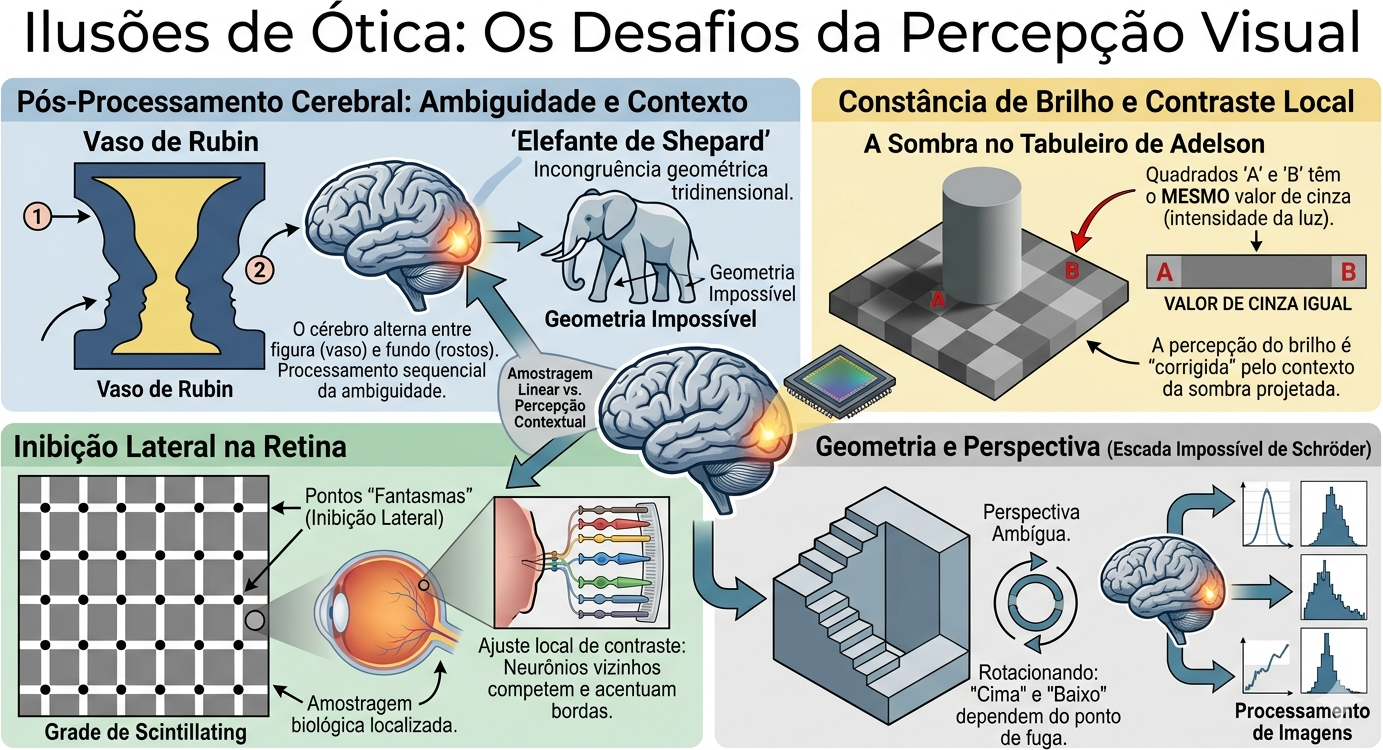

Figure 2.2: Collection of perceptual challenges: (top left) Rubin Vase — figure-ground ambiguity; (top center) Shepard Elephant — geometric incongruity; (top right) Adelson Shadow — brightness constancy based on context; (bottom left) Dot grid — lateral inhibition; (bottom right) Schröder Staircase.

2.4 The Mathematical Model of Image Formation

An image can be modeled as the product of two functions:

\[ f(x,y) = i(x,y) \cdot r(x,y) \tag{2.1}\]

where:

• \(i(x,y)\) is the illumination incident upon the scene (light energy per unit area), determined by the light source;
• \(r(x,y)\) is the reflectance of the object (fraction of reflected light), determined by the optical properties of the surface, with \(0 < r(x,y) < 1\).

In practice, the two components vary at distinct spatial scales: \(i(x,y)\) tends to vary slowly across space, whereas \(r(x,y)\) may exhibit abrupt variations associated with textures, edges, and fine details. Digital image processing (DIP) techniques often seek to separate or compensate for these components, as in methods for non-uniform illumination correction.

Figure 2.3 illustrates how this model manifests in digital color images, represented by multiple spectral channels (RGB) and, optionally, by an additional transparency channel (RGBA).

2.4.1 Digital Representation and Spectral Channels

In digital color images, the function \(f(x,y)\) from Equation 2.1 is represented by multiple spectral channels. In the RGB standard, each pixel stores three independent samples:

\[\mathbf{f}(x,y) = \bigl[R(x,y),\; G(x,y),\; B(x,y)\bigr]\]

corresponding to the intensities of the red, green, and blue components. In RGBA images, a fourth channel is added:

\[\mathbf{f}(x,y) = \bigl[R(x,y),\; G(x,y),\; B(x,y),\; A(x,y)\bigr]\]

where \(A(x,y)\) represents the alpha channel, responsible for encoding the pixel’s opacity. By convention, the value \(A = 0\) indicates a fully transparent pixel, while \(A = 255\) (or \(1\)) represents a fully opaque pixel.

Thus, a digital color image is structured as a multidimensional matrix with dimensions:

• RGB: \(M \times N \times 3\)
• RGBA: \(M \times N \times 4\)

where each position \((x,y)\) stores the samples associated with the optical properties of that spatial coordinate.

The conversion between intensity ranges is straightforward and given by:

\[f_{\text{norm}}(x,y) = \frac{f(x,y)}{255}\]

where \(f(x,y) \in [0,\,255]\) and \(f_{\text{norm}}(x,y) \in [0,\,1]\).

Representation convention in morph.hpp: the library in this book adopts a single convention (Table 2.1), without the range and channel-order ambiguities that arise when combining multiple Python libraries.

Table 2.1: Image representation convention in morph.hpp — range, band order, no. of channels, and memory layout.

Aspect	morph.hpp
Sample type	unsigned char (uint8), range \([0, 255]\)
Band order	RGB (via stb_image; no BGR inversion)
No. of channels	1 (grayscale) or 3 (RGB)
Memory layout	\(H \times W \times C\) interleaved (data[(y*w + x)*channels + c])

The Image struct stores the pixels in a linear std::vector<unsigned char>, with the fields h, w, and channels. The mm::read function decodes with stb_image forcing 3 channels (or 1, when grayscale=true); therefore any alpha channel in the file is discarded on reading. To work in floating point, the same relation \(f_{\text{norm}} = f/255\) holds.

In the following example cell, the RGBA version (\(M \times N \times 4\)) is assembled by stacking a synthetic alpha channel onto the read array — the notebook kernel is Python, and the display receives the ndarray in this \(H \times W \times C\) layout.

2.4.2 Preparing the Practical Environment

The following block loads the morph.py module from the repository and demonstrates, for a synthetic pixel, the different scaling conventions and channel orders adopted by the main image processing libraries.

import os, urllib.request

os.makedirs("tmp/state", exist_ok=True)  # C++ track build artifacts (.cpp, binary, PNGs)

url = "https://raw.githubusercontent.com/fzampirolli/pdi-vc/master/morph/config.py"
if not os.path.exists("config.py"):
    urllib.request.urlretrieve(url, "config.py")

# The kernel is Python even in the C++ track: `mm` (morph.py) is used by the
# simulators, by the display of figures generated by the C++ binary, and by
# the mm::Image state between cells. cpp=True also downloads the compiled track
# (morph.hpp + stb_image*.h), used in the #include of %%writefile *.cpp cells.
import config
config.setup(demo=True, cpp=True)
from morph import mm

✅ Environment ready. Morph: 1.1.9 | OpenCV: 5.0.0

── Scale conventions by library ──
  NumPy / Pillow / OpenCV (uint8): [200 100  50] → [0, 255]
  scikit-image / PyTorch (float):  [0.78431373 0.39215686 0.19607843] → [0.0, 1.0]
  OpenCV: watch out — reads as BGR: [ 50 100 200] (channels reversed)

2.4.3 Implementation of Image Reading in morph.hpp

The following excerpt shows the source code of the mm::read function, allowing you to directly verify how the morph.hpp library implements image reading.

# morph.hpp is header-only; below, the body of the function mm::read().
import re, pathlib
hpp = pathlib.Path("morph.hpp").read_text()
m = re.search(r"inline Image read\(.*?\n\}", hpp, re.S)
print(m.group(0) if m else "(mm::read não encontrada em morph.hpp)")

inline Image read(const std::string& path_or_url, bool grayscale = false) {
    std::string local_path = path_or_url;
    bool is_url = path_or_url.rfind("http://", 0) == 0 ||
                  path_or_url.rfind("https://", 0) == 0;
    if (is_url) {
        local_path = "_mm_download_tmp.img";
        if (!_download(path_or_url, local_path))
            throw std::runtime_error("mm::read: falha ao baixar '" + path_or_url + "'");
    }

    int w, h, ch;
    int desired = grayscale ? 1 : 3;
    unsigned char* data = stbi_load(local_path.c_str(), &w, &h, &ch, desired);
    if (!data) {
        Image fallback;
        if (_try_read_ascii_pgm(local_path, fallback)) return fallback;
        throw std::runtime_error("mm::read: falha ao decodificar '" + path_or_url + "'");
    }

    Image img(h, w, desired);
    std::copy(data, data + (size_t)w * h * desired, img.data.begin());
    stbi_image_free(data);
    return img;
}

2.4.4 RGB and RGBA: Practical Example with the Mandrill Image

The following example loads the Mandrill image in RGB format, artificially constructs an alpha channel with a horizontal gradient, and displays both representations, concretely illustrating the matrix structures \(M \times N \times 3\) and \(M \times N \times 4\).

%%writefile tmp/fig_02_rgb_rgba.cpp
#define MM_OUT "tmp/fig_02_rgb_rgba.png"
//| label: fig-02-rgb-rgba
//| fig-cap: "Imagem RGB (3 canais, $M \\times N \\times 3$) e versão RGBA (4 canais, $M \\times N \\times 4$) com transparência alfa gradual da esquerda para a direita. Imagem Mandrill — [USC SIPI Image Database](https://sipi.usc.edu/database/database.php?volume=misc) (domínio público)."
//| echo: true

#include "morph.hpp"
#include <iostream>
#include <filesystem>

int main() {
    // https://commons.wikimedia.org/wiki/File:Mandrill-k-means.png
    mm::Image img_rgb = mm::read("https://upload.wikimedia.org/wikipedia/commons/a/ab/Mandrill-k-means.png");  // (M, N, 3), uint8

    // Canal alfa: gradiente horizontal 0 -> 255 (esquerda -> direita)
    int h = img_rgb.h, w = img_rgb.w;
    mm::Image alpha(h, w);
    for (int x = 0; x < w; x++) {
        for (int y = 0; y < h; y++) {
            alpha.at(y, x) = static_cast<unsigned char>(255.0 * x / (w - 1));
        }
    }

    // Empilha RGB + alfa -> RGBA (M, N, 4)
    mm::Image img_rgba(h, w, 4);
    for (int y = 0; y < h; y++) {
        for (int x = 0; x < w; x++) {
            for (int c = 0; c < 3; c++) {
                img_rgba.at(y, x, c) = img_rgb.at(y, x, c);
            }
            img_rgba.at(y, x, 3) = alpha.at(y, x);
        }
    }

    std::cout << "RGB   -> shape=" << h << " x " << w << " x 3\n";
    std::cout << "RGBA  -> shape=" << h << " x " << w << " x 4\n";

    mm::show(std::vector<mm::Image>{img_rgb, img_rgba},
             MM_OUT,
             std::vector<std::string>{"RGB  —  M x N x 3", "RGBA  —  M x N x 4"}, 2);


// [pdi:panel-io] auto-generated — do not edit by hand
std::filesystem::create_directories("tmp");
mm::write(img_rgb, "tmp/fig_02_rgb_rgba_0.png");
mm::write(img_rgba, "tmp/fig_02_rgb_rgba_1.png");
// [pdi:panel-io:end]
return 0;
}

Overwriting tmp/fig_02_rgb_rgba.cpp

!g++ -I. -std=c++17 tmp/fig_02_rgb_rgba.cpp -o tmp/fig_02_rgb_rgba \
  && ./tmp/fig_02_rgb_rgba \
  && test -f "tmp/fig_02_rgb_rgba.png" \
  || echo "⚠ mm::show não gravou tmp/fig_02_rgb_rgba.png"

RGB   -> shape=512 x 512 x 3
RGBA  -> shape=512 x 512 x 4
[1] RGB  —  M x N x 3
[2] RGBA  —  M x N x 4

try:
    mm.show(
        [
            mm.read("tmp/fig_02_rgb_rgba_0.png"),
            mm.read("tmp/fig_02_rgb_rgba_1.png"),
        ],
        titles=[
            'RGB  —  M x N x 3',
            'RGBA  —  M x N x 4',
        ],
        cols=2,
    )
except Exception as _e:
    print("figura indisponivel nesta trilha (C++): " + repr(_e) + " tmp/fig_02_rgb_rgba_0.png (ver a versao Python)")

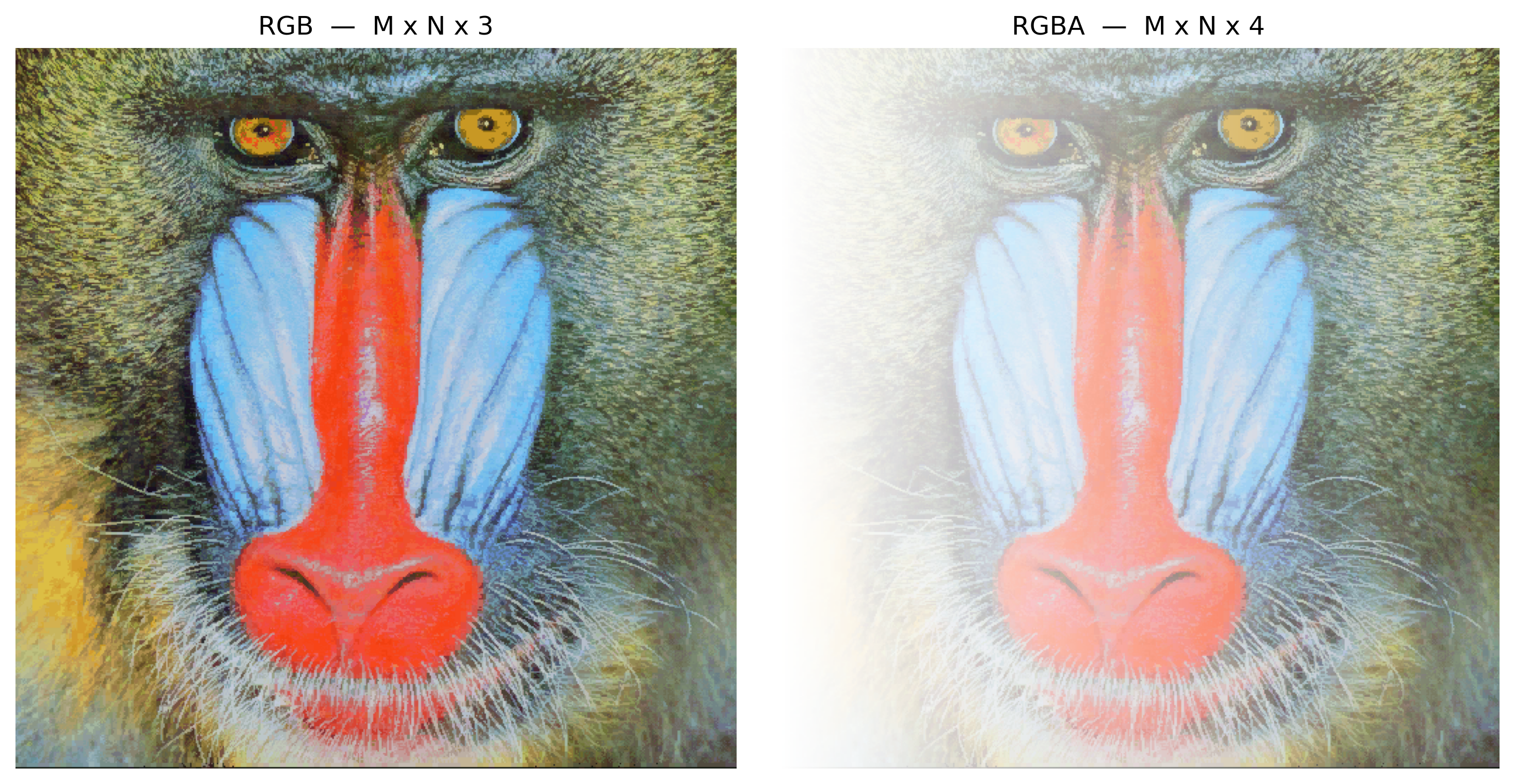

Figure 2.3: Imagem RGB (3 canais, \(M \times N \times 3\)) e versão RGBA (4 canais, \(M \times N \times 4\)) com transparência alfa gradual da esquerda para a direita. Imagem Mandrill — USC SIPI Image Database (domínio público).

2.5 Digitization: Sampling and Quantization

To transform a continuous scene into a digital image, two processes are required: sampling and quantization.

2.5.1 Sampling - Discretization of Space

Sampling consists of measuring the value of the function \(f(x,y)\) at equally spaced points, forming a matrix of \(M\) rows (height) and \(N\) columns (width). Each element of this matrix is a pixel. The spatial resolution is given by \(M \times N\). The higher the resolution, the more spatial details are preserved, but also the greater the computational and storage cost.

2.5.2 Quantization - Discretization of Intensity

Quantization assigns to each pixel a discrete numerical value, usually represented by an integer of \(b\) bits. The bit depth defines the number of intensity levels: \(2^b\). Grayscale images typically use 8 bits (256 levels). Color images use three 8-bit channels (24 bits in total).

Illustration: If we use only 1 bit per pixel (black and white), we lose all intermediate tones. With 2 bits (4 levels), coarse gradients are already noticeable. With 8 bits, the human eye can hardly perceive the discretization (continuous vision).

WarningQuantization Error

Quantization error is the difference between the actual analog value and the assigned discrete value. It manifests as quantization noise, visible in regions with smooth gradients when few bits are used.

2.5.3 Effects of Sampling and Quantization

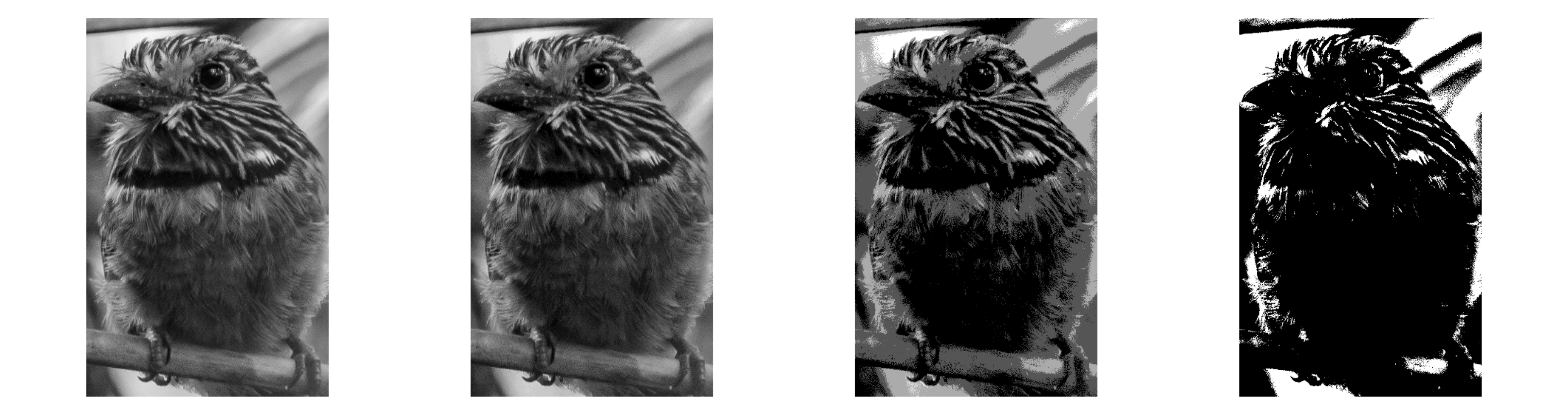

The following experiments show how reducing spatial resolution (subsampling) and bit depth degrade visual quality. Use the code to explore different factors and gray levels.

%%writefile tmp/mm_out_1.cpp
#include "morph.hpp"
#include <iostream>
#include <filesystem>

int main() {
    // Imagem de exemplo (barbudo-rajado) — base das figuras de amostragem,
    // quantização e transformações geométricas deste capítulo.
    mm::Image img_color = mm::read("https://upload.wikimedia.org/wikipedia/commons/c/c5/Area_de_Prote%C3%A7%C3%A3o_Ambiental_Quilombos_do_M%C3%A9dio_Ribeira_-_Thomas-Fuhrmann_%282023-_02%29_Malacoptila_striata.jpg");

    mm::Image img_gray0 = mm::gray(img_color);
    mm::Image img_gray = mm::crop(img_gray0, 820, 1850, 890, 1550);  // recorte p/ ver detalhes
    std::cout << "Imagem original: " << img_color.h << "x" << img_color.w << "\n";


// [pdi:state-io] auto-generated — do not edit by hand
std::filesystem::create_directories("tmp/state");
mm::write(img_gray, "tmp/state/img_gray_22.png");
// [pdi:state-io:end]
return 0;
}

Overwriting tmp/mm_out_1.cpp

!g++ -I. -std=c++17 tmp/mm_out_1.cpp -o tmp/mm_out_1 \
  && ./tmp/mm_out_1

Imagem original: 3067x2047

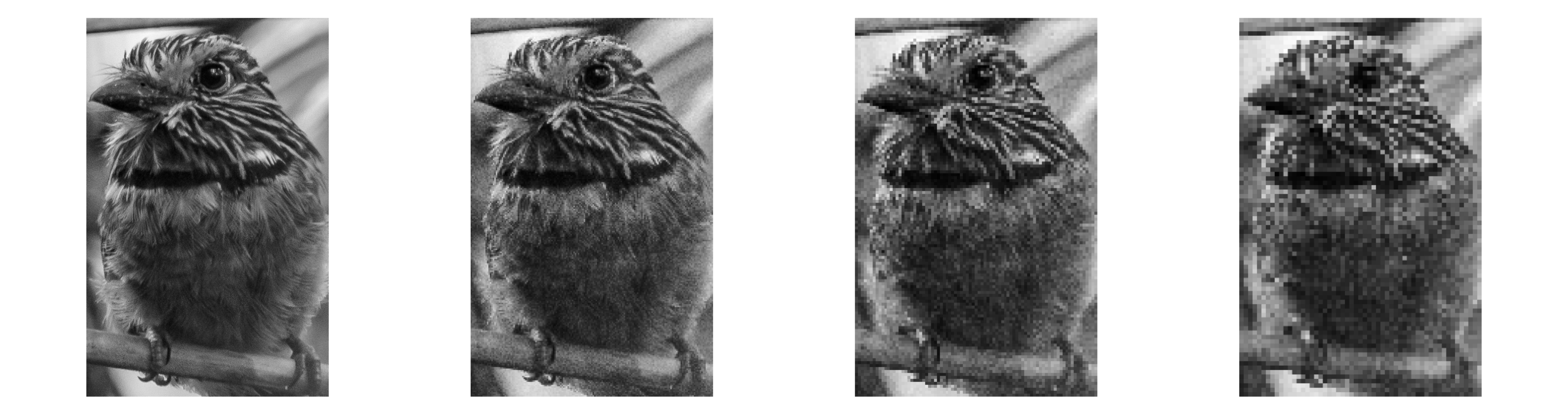

The experiment presented in Figure 2.4 illustrates the trade-off between spatial resolution and storage cost in memory. The code employs the subsampling technique via slicing to reduce the original pixel matrix according to a factor \(f\), resulting in memory savings — for example, a factor \(f=8\) reduces the data size by 64 times (\(8^2\)). For visual comparison purposes, the reduced images are restored to their original dimensions (\(512 \times 512\)) through nearest-neighbor interpolation (nearest). This process does not recover the lost information, but it makes evident the effect of aliasing and the block structure (pixelation) generated by the low data density of the sampled matrix.

%%writefile tmp/fig_02_subamostragem.cpp
#define MM_OUT "tmp/fig_02_subamostragem.png"
#include "morph.hpp"
#include <iostream>
#include <vector>
#include <string>
#include <cmath>

// #|
// #| label: fig-02-subamostragem
// #| fig-cap: "Efeito da subamostragem. Os títulos exibem as dimensões (W x H) e o tamanho da matriz em memória (KB)."
// #| echo: true
// #| output: true

struct SubsampleResult {
    mm::Image res;
    std::string label;
};

SubsampleResult subsample_simple(const mm::Image& image, int f) {
    // Subsampling via slicing
    mm::Image reduced = mm::subsample(image, f);

    // Memory calculation in KB
    double mem_kb = (reduced.h * reduced.w * reduced.channels) / 1024.0;
    std::string label = std::to_string(reduced.w) + "x" + std::to_string(reduced.h) + ", " +
                        std::to_string(static_cast<int>(mem_kb)) + " KB\n(Factor " + std::to_string(f) + ")";

    // Restore size for visualization (original H, W)
    mm::Image res = mm::resize(reduced, image.w, image.h, "nearest");
    return {res, label};
}

int main() {
// [pdi:state-io] auto-generated — do not edit by hand
mm::Image img_gray = mm::_read_state("tmp/state/img_gray_22.png");
// [pdi:state-io:end]

    std::vector<int> factors = {1, 4, 8, 12};

    // Generate results and separate into lists for mm::show
    std::vector<mm::Image> imgs_list;
    std::vector<std::string> titles_list;
    for (int f : factors) {
        SubsampleResult r = subsample_simple(img_gray, f);
        imgs_list.push_back(r.res);
        titles_list.push_back(r.label);
    }

    mm::show(imgs_list, MM_OUT, titles_list, 4);

    return 0;
}

Overwriting tmp/fig_02_subamostragem.cpp

!g++ -I. -std=c++17 tmp/fig_02_subamostragem.cpp -o tmp/fig_02_subamostragem \
  && ./tmp/fig_02_subamostragem \
  && test -f "tmp/fig_02_subamostragem.png" \
  || echo "⚠ mm::show não gravou tmp/fig_02_subamostragem.png"

[1] 660x1030, 663 KB
(Factor 1)
[2] 165x258, 41 KB
(Factor 4)
[3] 83x129, 10 KB
(Factor 8)
[4] 55x86, 4 KB
(Factor 12)

try:
    mm.show(mm.read("tmp/fig_02_subamostragem.png"), figsize=(16, 12))
except Exception as _e:
    print("figura indisponivel nesta trilha (C++): " + repr(_e) + " tmp/fig_02_subamostragem.png (ver a versao Python)")

Figure 2.4: Efeito da subamostragem. Os títulos exibem as dimensões (W x H) e o tamanho da matriz em memória (KB).

The experiment in Figure 2.5 focuses on intensity quantization, the process of discretizing the amplitude of the function \(f(x,y)\). While subsampling affects the spatial grid, reducing the bit depth limits the number of gray levels available to represent brightness.

By reducing the depth from 8 bits (256 levels) to smaller values, the posterization effect arises, where smooth gradients in a scene are replaced by abrupt transitions. At the 1-bit limit, the image becomes strictly binary, preserving only the silhouette and losing texture and volume details.

%%writefile tmp/fig_02_quantizacao.cpp
#define MM_OUT "tmp/fig_02_quantizacao.png"
//| label: fig-02-quantizacao
//| fig-cap: "Efeito da redução da profundidade de bits. Os títulos exibem a quantidade de bits, níveis e o tamanho em memória (KB)."
//| echo: true
//| output: true

#include "morph.hpp"
#include <vector>
#include <string>
#include <cmath>
#include <iostream>

int main() {
// [pdi:state-io] auto-generated — do not edit by hand
mm::Image img_gray = mm::_read_state("tmp/state/img_gray_22.png");
// [pdi:state-io:end]

    // img_gray is already defined as mm::Image

    // Function to quantize and calculate metadata
    auto quantizeSimple = [](const mm::Image& image, int bits) {
        // levels = 2^bits
        int levels = (int)std::pow(2, bits);

        // Quantized image
        mm::Image quantized(image.h, image.w, image.channels);

        // Normalization and uniform quantization: floor(image/256 * levels)/levels * 255
        for (int y = 0; y < image.h; y++) {
            for (int x = 0; x < image.w; x++) {
                for (int c = 0; c < image.channels; c++) {
                    double val = (double)image.at(y, x, c) / 256 * levels;
                    double qval = std::floor(val) / levels * 255;
                    quantized.at(y, x, c) = (unsigned char)std::min(255, std::max(0, (int)std::round(qval)));
                }
            }
        }

        // Memory calculation in KB
        double mem_kb = (double)(quantized.h * quantized.w * quantized.channels) / 1024;
        std::string label = std::to_string(bits) + " bits (" + std::to_string(levels) + " níveis)\n"
                          + std::to_string((int)mem_kb) + " KB";

        return std::make_pair(quantized, label);
    };

    // List of bits for testing
    std::vector<int> bits_test = {8, 4, 2, 1};

    // Results containers
    std::vector<mm::Image> imgs_q;
    std::vector<std::string> titles_q;

    // Generate results
    for (int b : bits_test) {
        auto result = quantizeSimple(img_gray, b);
        imgs_q.push_back(result.first);
        titles_q.push_back(result.second);
    }

    mm::show(imgs_q, MM_OUT, titles_q, 4);

    return 0;
}

Overwriting tmp/fig_02_quantizacao.cpp

!g++ -I. -std=c++17 tmp/fig_02_quantizacao.cpp -o tmp/fig_02_quantizacao \
  && ./tmp/fig_02_quantizacao \
  && test -f "tmp/fig_02_quantizacao.png" \
  || echo "⚠ mm::show não gravou tmp/fig_02_quantizacao.png"

[1] 8 bits (256 níveis)
663 KB
[2] 4 bits (16 níveis)
663 KB
[3] 2 bits (4 níveis)
663 KB
[4] 1 bits (2 níveis)
663 KB

try:
    mm.show(mm.read("tmp/fig_02_quantizacao.png"), figsize=(16, 12))
except Exception as _e:
    print("figura indisponivel nesta trilha (C++): " + repr(_e) + " tmp/fig_02_quantizacao.png (ver a versao Python)")

Figure 2.5: Efeito da redução da profundidade de bits. Os títulos exibem a quantidade de bits, níveis e o tamanho em memória (KB).

2.5.4 Technical Analysis

• Domain vs. Codomain: Note that the spatial resolution (matrix dimensions) remains constant at 512x512; only the codomain of the image function changes.
• Memory Constancy: Observe in the titles that the size in KB does not decrease. This occurs because NumPy stores each quantized pixel in an 8-bit container (uint8), regardless of whether the actual value is only 0 or 1.
• Perception: Visual degradation becomes critical below 4 bits, where the human eye begins to perceive the artificial “boundaries” created by the lack of intermediate tones.

The limitation of data types smaller than a byte in the Python/NumPy ecosystem stems from hardware architecture, which addresses memory in blocks of 8 bits (Bytes). To maintain compatibility with OpenCV and ensure efficiency, even binary elements are mapped to 1-byte containers (uint8 or bool8).

Although languages such as ANSI C allow the packing of 8 pixels per byte (bit-packing), this approach requires constant unpacking for computations and imposes high complexity in pointer manipulation. As per Table 2.2, the use of uint8 is favored for ease of neighbor access and versatility in geometric transformations. Furthermore, native NumPy and OpenCV methods execute processing internally at a low level (C/C++), making vectorized operations faster than manual implementations with nested loops in Python.

Table 2.2: Comparison between packing strategies and processing efficiency.

Feature	Python (NumPy/OpenCV)	ANSI C (Bit-packing)
Smallest Unit	1 Byte (8 bits)	1 Bit
Memory (Binary)	256 KB (for 512x512)	32 KB (for 512x512)
Speed	High (C vectorization)	Variable (Slow if bit-shifting)
Complexity	Low: Ready-made methods	High: Pointers and Masks

2.6 Relationships Between Pixels - Image Topology

Pixels are not isolated elements; their relative positions define important concepts for processing.

2.6.1 Neighborhood

Given a pixel with coordinates \((x,y)\), two main types of neighborhood are defined (for images on a rectangular \(grid\)):

• 4-Neighborhood (von Neumann): includes the pixels at positions \((x-1,y)\), \((x+1,y)\), \((x,y-1)\), \((x,y+1)\).
• 8-Neighborhood (Moore): includes all eight adjacent pixels (adds the four diagonal ones).

The choice of neighborhood influences operations such as edge detection, gradient computation, and connectivity.

%%writefile tmp/fig_02_vizinhanca.cpp
#define MM_OUT "tmp/fig_02_vizinhanca.png"
#include "morph.hpp"
#include <iostream>

int main() {
    //| label: fig-02-vizinhanca
    //| fig-cap: "Ilustração de vizinhanças 4 em uma matriz 3x3. No centro (1,1), o pixel de interesse."
    //| echo: true
    //| output: true

    // # Creation of a 3x3 matrix for topological example
    // viz = np.zeros((3, 3), dtype='uint8')

    // # Defining Neighborhood-4 (N4) with different value for highlight
    // viz[0, 1] = viz[2, 1] = viz[1, 0] = viz[1, 2] = viz[1, 1] = 255

    // or simply (test with numbers as arguments):
    mm::Image viz = mm::secross();

    // Display of the matrix for coordinate analysis
    mm::drawImgPlt(viz, MM_OUT);

    return 0;
}

Overwriting tmp/fig_02_vizinhanca.cpp

!g++ -I. -std=c++17 tmp/fig_02_vizinhanca.cpp -o tmp/fig_02_vizinhanca \
  && ./tmp/fig_02_vizinhanca \
  && test -f "tmp/fig_02_vizinhanca.png" \
  || echo "⚠ mm::show não gravou tmp/fig_02_vizinhanca.png"

0 1 0
1 1 1
0 1 0

try:
    mm.show(mm.read("tmp/fig_02_vizinhanca.png"))
except Exception as _e:
    print("figura indisponivel nesta trilha (C++): " + repr(_e) + " tmp/fig_02_vizinhanca.png (ver a versao Python)")

Figure 2.6: Ilustração de vizinhanças 4 em uma matriz 3x3. No centro (1,1), o pixel de interesse.

2.6.2 Adjacency, connectivity, and paths

Two pixels are adjacent if they are in contact according to a defined neighborhood and satisfy a value criterion (e.g., same intensity level). A connectivity defines an equivalence relation between pixels that form a connected region. A path is a sequence of adjacent pixels.

4-connectivity (N4) and 8-connectivity (N8) can produce different results in segmentation and in the computation of connected components (labeling). For example, a checkerboard pattern can be completely disconnected under N4 but fully connected under N8.

2.6.3 Distances Between Pixels

Distance metrics are fundamental for quantifying physical proximity and connectivity among the elements that make up the digital grid. As demonstrated in Table 2.3, the choice of metric defines the movement cost between pixels and alters the behavior of segmentation algorithms and morphological analysis.

To measure the distance between two pixels \(p(x_1, y_1)\) and \(q(x_2, y_2)\), different metric functions are used, each imposing distinct movement constraints on the grid:

Table 2.3: Comparison of distance metrics applied to the pixel grid.

Metric	Definition	Interpretation
Euclidean	\(\sqrt{(x_1-x_2)^2 + (y_1-y_2)^2}\)	Exact straight-line distance (continuous)
Manhattan (City block)	\(|x_1-x_2| + |y_1-y_2|\)	Horizontal + vertical movements
Chebyshev (Chessboard)	\(\max(|x_1-x_2|, |y_1-y_2|)\)	Largest displacement among the axes

These distances are applied in various DIP contexts, including geometric interpolation algorithms, distance transforms, region growing, and shape analysis.

NotePractical Example

Considering two pixels with relative displacements \(\Delta x = 3\) and \(\Delta y = 4\):

• Euclidean: \(\sqrt{3^2 + 4^2} = 5\) (hypotenuse of the right triangle).
• Manhattan: \(3 + 4 = 7\) (sum of the legs).
• Chebyshev: \(\max(3, 4) = 4\) (dominance of the largest displacement).

2.7 Image Storage

The choice of file format is a decisive step in the processing pipeline, as it determines how sampling and quantization data will be preserved or discarded. As presented in Table 2.4, each extension balances data fidelity and storage efficiency in a distinct manner.

Table 2.4: Main digital image storage formats and their applications in DIP.

Format	Characteristics	Typical Use
PGM	Simple grayscale map format (text or binary).	Academic research and Unix tools.
BMP	Uncompressed (or simple compression).	Windows, legacy applications.
PNG	Lossless compression.	Web, images with transparency.
JPEG	Lossy compression, ideal for photographs.	Photos, digital cameras.
TIFF	Supports multiple layers and varied compression.	Publishing, archiving.
RAW	Raw sensor data, unprocessed.	Professional photography.
DICOM	Medical standard with embedded clinical metadata (patient, equipment, protocol).	Radiology, tomography, magnetic resonance imaging.

Image metadata includes parameters such as width, height, bit depth, and color encoding. In scientific formats, calibration information and capture details are also preserved. When using the mm::read() function, the morph library automatically preserves this data so that the original properties of the image are respected.

In scientific and hospital contexts, the DICOM (Digital Imaging and Communications in Medicine) standard is favored to ensure that there is no loss of diagnostic precision. Public repositories such as The Cancer Imaging Archive (TCIA), the Alzheimer’s Disease Neuroimaging Initiative (ADNI), and PhysioNet provide vast datasets in this format, including anonymized clinical metadata that is essential for scientific research.

2.7.1 Example: Metadata Extraction and GPS Location

Unlike the pure pixel matrix obtained through conventional reading—as in the bird image presented at the beginning of this chapter—the use of the pil=True argument in the mm::read() method changes the nature of the returned object (see Figure 2.7). While the default (pil=False) returns an RGB numpy.ndarray, reading with pil=True returns a specialized object from the Pillow library, capable of interpreting the EXIF header.

The EXIF header (Exchangeable Image File Format) functions as a technical repository of the capture, allowing the Pillow object to interpret a vast range of information that goes far beyond GPS coordinates. By using pil=True, the system gains access to the “DNA” of the image, including hardware metadata (camera brand and model), optical settings (aperture, focal length, and exposure time), and lighting parameters (flash usage and white balance).

This distinction is important in digital image processing, as it transforms the sampling matrix into a contextualized dataset, where the physical characteristics of the sensor and lens can be used to normalize brightness or correct geometric distortions.

NoteC++ Track: Why EXIF Extraction Remains in Python

Metadata extraction is container parsing — decoding the EXIF header embedded in the file — rather than pixel processing: it is orthogonal to the sampling and quantization pipeline. morph.hpp decodes images with stb_image, which returns only the pixel matrix and discards the EXIF header. Since the kernel for this notebook is Python, even in the C++ track, this example uses Pillow-mode reading (pil=True) in both tracks. In a standalone C++ program, the equivalent path would involve vendoring a dedicated library: easyexif (read-only EXIF/GPS for JPEG, single header, zero dependencies) or exiv2 (read and write, including IPTC/XMP).

%%writefile tmp/fig_01_natureza.cpp
#define MM_OUT "tmp/fig_01_natureza.png"
// Compile: g++ -std=c++17 -o program program.cpp -lmorph

#include "morph.hpp"
#include <iostream>
#include <string>
#include <vector>
#include <cmath>
#include <filesystem>

int main() {
    // | label: fig-01-natureza
    // | fig-cap: "Area de Proteção Ambiental Quilombos do Médio Ribeira - Barbudo-rajado (Malacoptila striata). Crédito: Thomas Fuhrmann (CC BY-SA 4.0)."
    // | echo: true

    std::string base = "https://upload.wikimedia.org/wikipedia/commons";
    std::string arquivo =
        "Area_de_Prote%C3%A7%C3%A3o_Ambiental_"
        "Quilombos_do_M%C3%A9dio_Ribeira_-_Thomas-"
        "Fuhrmann_%282023-_02%29_Malacoptila_striata.jpg";
    std::string url = base + "/c/c5/" + arquivo;
    std::string caminho = "imagens/barbudo-rajado.jpg";

    // 1. Reading — preserves PIL object with EXIF
    mm::Image img_obj;
    if (!std::filesystem::exists(caminho)) {
        std::filesystem::create_directories("imagens");
        img_obj = mm::read(url);
        mm::write(img_obj, caminho);      // saves preserving EXIF
    } else {
        img_obj = mm::read(caminho);
    }

    // Note: mm::Image doesn't preserve EXIF metadata
    // GPS extraction from EXIF is not available in this library

    // 2. Type diagnosis, dimensions and pixel access
    std::cout << "\nTipo PIL  : Image | Dimensões (x,y): " << img_obj.w << ", " << img_obj.h << std::endl;
    std::cout << "Pillow (0,0): (" << (int)img_obj.at(0, 0, 0) << ", " << (int)img_obj.at(0, 0, 1) << ", " << (int)img_obj.at(0, 0, 2) << ")" << std::endl;
    std::cout << "Tipo NumPy: Image | Dimensões [y,x,c]: " << img_obj.h << ", " << img_obj.w << ", " << img_obj.channels << std::endl;
    std::cout << "NumPy [0,0]: (" << (int)img_obj.at(0, 0, 0) << ", " << (int)img_obj.at(0, 0, 1) << ", " << (int)img_obj.at(0, 0, 2) << ")" << std::endl;

    // 3. Display
    mm::show(img_obj, MM_OUT);

    return 0;
}

Overwriting tmp/fig_01_natureza.cpp

!g++ -I. -std=c++17 tmp/fig_01_natureza.cpp -o tmp/fig_01_natureza \
  && ./tmp/fig_01_natureza \
  && test -f "tmp/fig_01_natureza.png" \
  || echo "⚠ mm::show não gravou tmp/fig_01_natureza.png"

Tipo PIL  : Image | Dimensões (x,y): 2047, 3067
Pillow (0,0): (58, 96, 0)
Tipo NumPy: Image | Dimensões [y,x,c]: 3067, 2047, 3
NumPy [0,0]: (58, 96, 0)

try:
    mm.show(mm.read("tmp/fig_01_natureza.png"))
except Exception as _e:
    print("figura indisponivel nesta trilha (C++): " + repr(_e) + " tmp/fig_01_natureza.png (ver a versao Python)")

Figure 2.7: Area de Proteção Ambiental Quilombos do Médio Ribeira - Barbudo-rajado (Malacoptila striata). Crédito: Thomas Fuhrmann (CC BY-SA 4.0).

NotePedagogical Note: The Subtle Difference in Dimensions

Notice that the representation of dimensions changes depending on the data structure used:

• In Pillow (.size): Returns (Width, Height) — in the example: (2047, 3067). This is a view oriented toward the image file.
• In NumPy (.shape): Follows the mathematical matrix convention: (Rows/Height, Columns/Width, Channels) — in the example: (3067, 2047, 3).

This distinction is fundamental to avoid indexing errors when implementing manual filters. While the Pillow object carries the “where” and “when” (context), the NumPy array carries the “how much” light (intensity) at each point of the image.

2.7.2 Why Is This Separation Important?

When loading an image through the conventional path (pil=False), the result is a numpy.ndarray, which strictly contains the numerical values resulting from quantization and sampling. However, when using pil=True, the mm::read() returns an object of class PIL.JpegImagePlugin.JpegImageFile.

This class keeps the file “open” to allow access to the capture context before the data are converted into a raw matrix. Note that the pixel at (0, 0) is identical in both representations — (58, 96, 0) in Pillow and [58, 96, 0] in NumPy — confirming that both describe the same data, only with different interfaces. This separation is vital: pixels serve algorithms; metadata serve georeferencing, scientific cataloging, and corrections based on the acquisition hardware.

To inspect all EXIF metadata of a Pillow object:

from PIL import ExifTags

exif_raw = img_obj._getexif()
if exif_raw:
    for tag_id, valor in sorted(exif_raw.items()):
        tag_nome = ExifTags.TAGS.get(tag_id, f"TAG_{tag_id}")
        print(f"  {tag_nome:40s} : {valor}")

2.8 Basic Geometric Transformations

Geometric transformations alter the position of pixels while maintaining intensity values. They are fundamental for alignment, distortion correction, and data augmentation in machine learning.

An affine transformation is any mapping that preserves collinearity (points on a line remain on a line) and ratios of distances between collinear points. In 2D, every affine transformation can be expressed in homogeneous coordinates by a \(3 \times 3\) matrix:

\[ \begin{bmatrix} x' \\ y' \\ 1 \end{bmatrix} = \underbrace{\begin{bmatrix} a_{11} & a_{12} & t_x \\ a_{21} & a_{22} & t_y \\ 0 & 0 & 1 \end{bmatrix}}_{\mathbf{T}} \begin{bmatrix} x \\ y \\ 1 \end{bmatrix} \tag{2.2}\]

The upper-left \(2 \times 2\) submatrix \(\mathbf{A} = \begin{bmatrix} a_{11} & a_{12} \\ a_{21} & a_{22} \end{bmatrix}\) controls rotation, scaling, and shearing; the vector \((t_x, t_y)^\top\) controls translation. The most commonly used geometric transformations in DIP — translation, rotation, and scaling — are special cases of \(\mathbf{T}\), and can be composed through matrix multiplication, in the order \(\mathbf{T} = \mathbf{T}_n \cdots \mathbf{T}_2 \mathbf{T}_1\).

NoteInverse transformation and interpolation

In practical implementation (cv2.warpAffine), the inverse transformation is applied: for each pixel \((x', y')\) of the destination image, the source position \((x, y) = \mathbf{T}^{-1}(x', y')\) is computed and the value is interpolated. This avoids holes in the resulting image caused by directly mapping integer pixels to non-integer positions.

2.8.1 Translation

Translation is the simplest affine transformation: it shifts all pixels by a vector \((t_x, t_y)\). In homogeneous coordinates, it is expressed by the matrix:

\[ \begin{bmatrix} x' \\ y' \\ 1 \end{bmatrix} = \begin{bmatrix} 1 & 0 & t_x \\ 0 & 1 & t_y \\ 0 & 0 & 1 \end{bmatrix} \begin{bmatrix} x \\ y \\ 1 \end{bmatrix} \quad \Rightarrow \quad \begin{cases} x' = x + t_x \\ y' = y + t_y \end{cases} \tag{2.3}\]

The third row of the matrix ensures that the operation remains in affine space, allowing translation, rotation, and scaling to be combined by simple matrix multiplication. In practice, cv2.warpAffine uses only the first two rows (a \(2 \times 3\) matrix), since the third row is always \([0, 0, 1]\).

Pixels shifted beyond the original area are discarded; uncovered areas are filled with 0 (black). See an example in Figure 2.8.

%%writefile tmp/fig_02_translacao.cpp
#define MM_OUT "tmp/fig_02_translacao.png"
//#| label: fig-02-translacao
//#| fig-cap: "Exemplo de translação da imagem do pássaro com deslocamentos (50,50) e (100,50)."
//#| echo: true
//#| output: true
#include "morph.hpp"
#include <vector>
#include <string>
#include <filesystem>

int main() {
// [pdi:state-io] auto-generated — do not edit by hand
mm::Image img_gray = mm::_read_state("tmp/state/img_gray_22.png");
// [pdi:state-io:end]

    // img_gray is already initialized here

    mm::Image img_tx1 = mm::translate(img_gray, 50, 50);
    mm::Image img_tx2 = mm::translate(img_gray, 100, 50);
    mm::show(std::vector<mm::Image>{img_gray, img_tx1, img_tx2}, MM_OUT,
             std::vector<std::string>{"Original", "Translação (50,50)", "Translação (100,50)"}, 3);


// [pdi:panel-io] auto-generated — do not edit by hand
std::filesystem::create_directories("tmp");
mm::write(img_gray, "tmp/fig_02_translacao_0.png");
mm::write(img_tx1, "tmp/fig_02_translacao_1.png");
mm::write(img_tx2, "tmp/fig_02_translacao_2.png");
// [pdi:panel-io:end]
return 0;
}

Overwriting tmp/fig_02_translacao.cpp

!g++ -I. -std=c++17 tmp/fig_02_translacao.cpp -o tmp/fig_02_translacao \
  && ./tmp/fig_02_translacao \
  && test -f "tmp/fig_02_translacao.png" \
  || echo "⚠ mm::show não gravou tmp/fig_02_translacao.png"

[1] Original
[2] Translação (50,50)
[3] Translação (100,50)

try:
    mm.show(
        [
            mm.read("tmp/fig_02_translacao_0.png"),
            mm.read("tmp/fig_02_translacao_1.png"),
            mm.read("tmp/fig_02_translacao_2.png"),
        ],
        titles=[
            'Original',
            'Translação (50,50)',
            'Translação (100,50)',
        ],
        cols=3,
        figsize=(16, 12),
    )
except Exception as _e:
    print("figura indisponivel nesta trilha (C++): " + repr(_e) + " tmp/fig_02_translacao_0.png (ver a versao Python)")

Figure 2.8: Exemplo de translação da imagem do pássaro com deslocamentos (50,50) e (100,50).

2.8.2 Rotation

Rotation by angle \(\theta\) around a central point \((c_x, c_y)\) is composed of three affine transformations: translation to the origin, pure rotation, and translation back. The resulting matrix is:

\[ \mathbf{T}_{\text{rot}} = \begin{bmatrix} \cos\theta & -\sin\theta & c_x(1-\cos\theta) + c_y\sin\theta \\ \sin\theta & \cos\theta & c_y(1-\cos\theta) - c_x\sin\theta \\ 0 & 0 & 1 \end{bmatrix} \tag{2.4}\]

In the implementation, cv2.getRotationMatrix2D directly generates the first two rows of \(\mathbf{T}_{\text{rot}}\) (a \(2 \times 3\) matrix for warpAffine), also accepting a scale factor \(s\) that multiplies \(\cos\theta\) and \(\sin\theta\). See the example in Figure 2.9.

Since rotation moves pixels to new non-integer positions, cv2.warpAffine must estimate the color of each destination pixel from its neighbors — a process called interpolation. The interp parameter controls this behavior:

• nearest (INTER_NEAREST): assigns the value of the nearest pixel. Fast, but produces jagged edges (aliasing) on diagonal borders.
• bilinear (INTER_LINEAR, default): weighted average of the 4 nearest neighbors. Balances quality and performance — suitable for most cases.
• bicubic (INTER_CUBIC): considers the 16 neighbors on a cubic surface. Produces smoother edges at the cost of greater processing.

%%writefile tmp/fig_02_rotacao.cpp
#define MM_OUT "tmp/fig_02_rotacao.png"
//| label: fig-02-rotacao
//| fig-cap: "Exemplo de rotação da imagem do pássaro em 30° e 45° usando interpolação bilinear."
//| echo: true
//| output: true

#include "morph.hpp"
#include <iostream>
#include <vector>
#include <string>
#include <filesystem>

int main() {
// [pdi:state-io] auto-generated — do not edit by hand
mm::Image img_gray = mm::_read_state("tmp/state/img_gray_22.png");
// [pdi:state-io:end]

    // img_gray is already available (provided externally)

    mm::Image img_rot30 = mm::rotate(img_gray, 30, 1.0, "bilinear");
    mm::Image img_rot45 = mm::rotate(img_gray, 45, 1.0, "bilinear");

    mm::show(std::vector<mm::Image>{img_gray, img_rot30, img_rot45},
             MM_OUT,
             std::vector<std::string>{"Original", "Rotação 30°", "Rotação 45°"},
             3);


// [pdi:panel-io] auto-generated — do not edit by hand
std::filesystem::create_directories("tmp");
mm::write(img_gray, "tmp/fig_02_rotacao_0.png");
mm::write(img_rot30, "tmp/fig_02_rotacao_1.png");
mm::write(img_rot45, "tmp/fig_02_rotacao_2.png");
// [pdi:panel-io:end]
return 0;
}

Overwriting tmp/fig_02_rotacao.cpp

!g++ -I. -std=c++17 tmp/fig_02_rotacao.cpp -o tmp/fig_02_rotacao \
  && ./tmp/fig_02_rotacao \
  && test -f "tmp/fig_02_rotacao.png" \
  || echo "⚠ mm::show não gravou tmp/fig_02_rotacao.png"

[1] Original
[2] Rotação 30°
[3] Rotação 45°

try:
    mm.show(
        [
            mm.read("tmp/fig_02_rotacao_0.png"),
            mm.read("tmp/fig_02_rotacao_1.png"),
            mm.read("tmp/fig_02_rotacao_2.png"),
        ],
        titles=[
            'Original',
            'Rotação 30°',
            'Rotação 45°',
        ],
        cols=3,
        figsize=(16, 12),
    )
except Exception as _e:
    print("figura indisponivel nesta trilha (C++): " + repr(_e) + " tmp/fig_02_rotacao_0.png (ver a versao Python)")

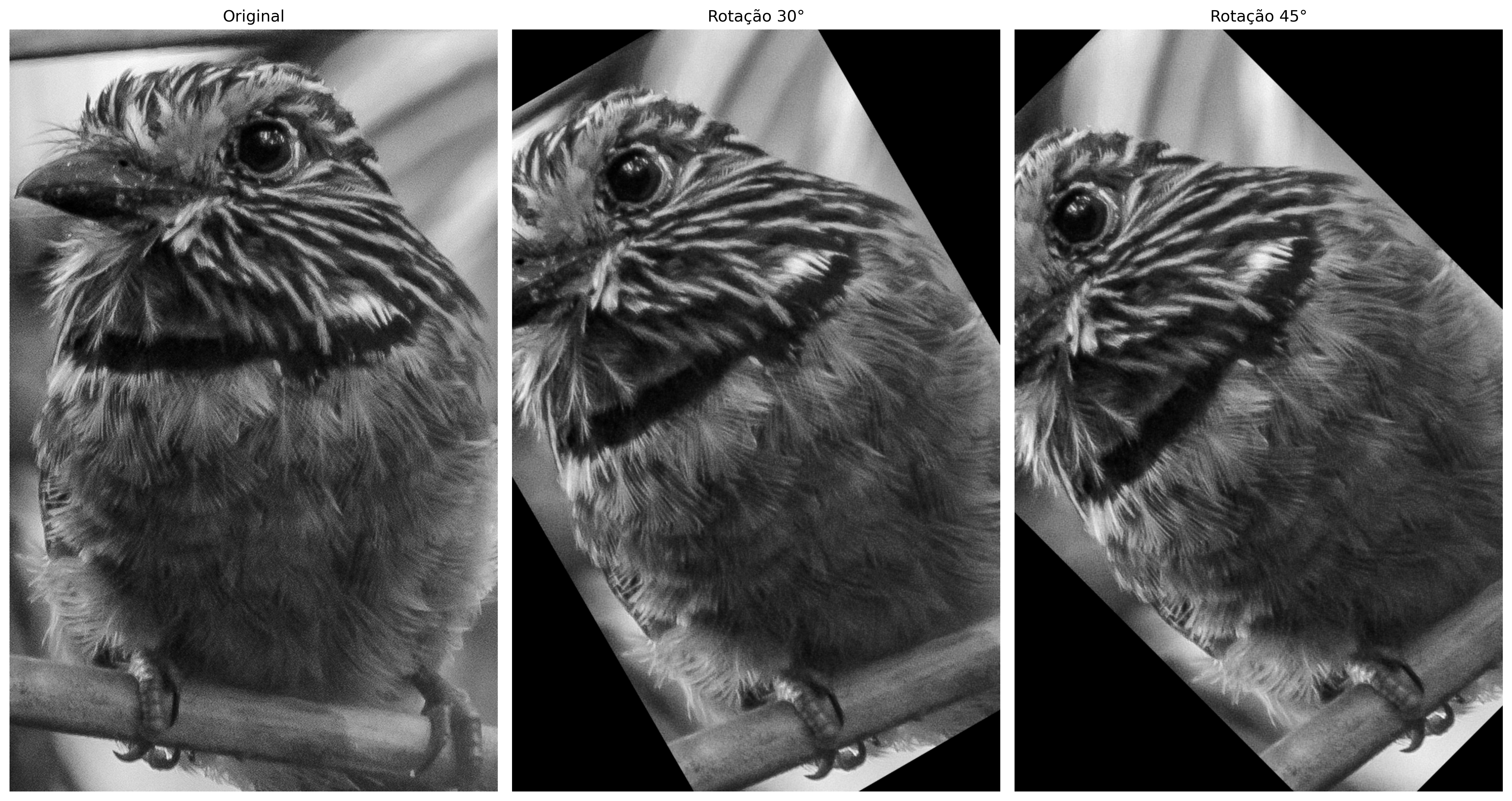

Figure 2.9: Exemplo de rotação da imagem do pássaro em 30° e 45° usando interpolação bilinear.

2.8.3 Scaling (Resizing)

Resizing by factors \((s_x, s_y)\) is an affine transformation with matrix:

\[ \mathbf{T}_{\text{scale}} = \begin{bmatrix} s_x & 0 & 0 \\ 0 & s_y & 0 \\ 0 & 0 & 1 \end{bmatrix} \tag{2.5}\]

When \(s > 1\) (enlargement), pixels of the destination image map to non-integer positions in the source — requiring interpolation to estimate the value. When \(s < 1\) (reduction), multiple source pixels contribute to a single destination pixel — requiring decimation. The same three methods described for rotation are available in mm::resize, with the difference that here the visual impact is more noticeable: in enlargement, nearest produces a blocky effect (pixelation), whereas bicubic better preserves edge sharpness, as shown in Table 2.5:

Table 2.5: Interpolation methods available in mm.resize and their respective numbers of neighbors used in the calculation.

Method	Neighbors used	Characteristic
'nearest'	1	Fast; produces a blocky effect (pixelation)
'bilinear'	4	Good quality/cost trade-off; smooth edges
'bicubic'	16	Greater sharpness; preferred in professional software

The size_or_factor parameter accepts either a scalar (uniform factor, e.g. 0.5 to reduce to half) or a tuple (width, height) for absolute dimensions.

%%writefile tmp/fig_02_escala_detalhe.cpp
#define MM_OUT "tmp/fig_02_escala_detalhe.png"
#include "morph.hpp"
#include <iostream>
#include <filesystem>

int main() {
// [pdi:state-io] auto-generated — do not edit by hand
mm::Image img_gray = mm::_read_state("tmp/state/img_gray_22.png");
// [pdi:state-io:end]

    // 1. Crop of the beak region
    int y = 210, x = 40, offset = 40;
    mm::Image crop = mm::crop(img_gray, y - offset, y + offset, x - offset, x + offset);
    std::cout << "Imagem: " << img_gray.h << "x" << img_gray.w << " | Crop: " << crop.h << "x" << crop.w << "\n";

    // 2. Enlarge 4x with mm.resize
    mm::Image crop_nearest  = mm::resize(crop, (double)4, "nearest");
    mm::Image crop_bilinear = mm::resize(crop, (double)4, "bilinear");

    // 3. Comparative display
    mm::show(
        std::vector<mm::Image>{crop, crop_nearest, crop_bilinear},
        MM_OUT,
        std::vector<std::string>{"Original (recorte)", "Vizinho mais próximo (4x)", "Bilinear (4x)"},
        3
    );


// [pdi:panel-io] auto-generated — do not edit by hand
std::filesystem::create_directories("tmp");
mm::write(crop, "tmp/fig_02_escala_detalhe_0.png");
mm::write(crop_nearest, "tmp/fig_02_escala_detalhe_1.png");
mm::write(crop_bilinear, "tmp/fig_02_escala_detalhe_2.png");
// [pdi:panel-io:end]
return 0;
}

Overwriting tmp/fig_02_escala_detalhe.cpp

!g++ -I. -std=c++17 tmp/fig_02_escala_detalhe.cpp -o tmp/fig_02_escala_detalhe \
  && ./tmp/fig_02_escala_detalhe \
  && test -f "tmp/fig_02_escala_detalhe.png" \
  || echo "⚠ mm::show não gravou tmp/fig_02_escala_detalhe.png"

Imagem: 1030x660 | Crop: 80x80
[1] Original (recorte)
[2] Vizinho mais próximo (4x)
[3] Bilinear (4x)

try:
    mm.show(
        [
            mm.read("tmp/fig_02_escala_detalhe_0.png"),
            mm.read("tmp/fig_02_escala_detalhe_1.png"),
            mm.read("tmp/fig_02_escala_detalhe_2.png"),
        ],
        titles=[
            'Original (recorte)',
            'Vizinho mais próximo (4×)',
            'Bilinear (4×)',
        ],
        cols=3,
        figsize=(16, 12),
        dpi=200,
    )
except Exception as _e:
    print("figura indisponivel nesta trilha (C++): " + repr(_e) + " tmp/fig_02_escala_detalhe_0.png (ver a versao Python)")

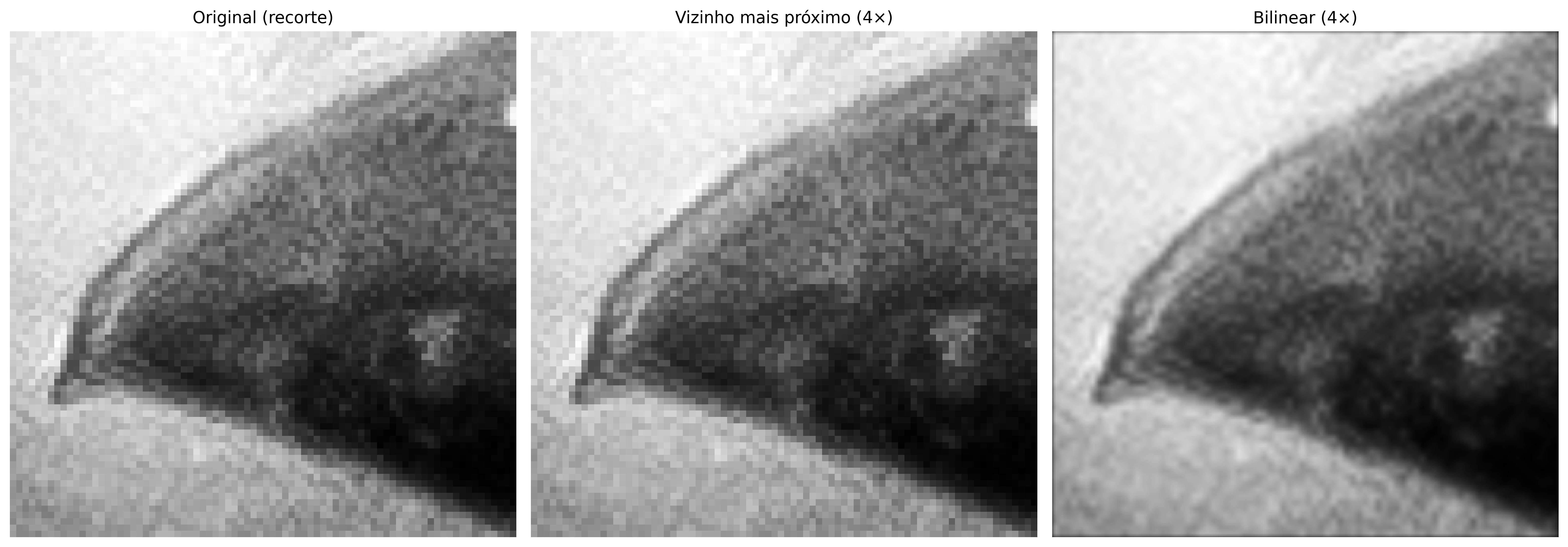

Figure 2.10: Comparação de interpolação com zoom no detalhe do olho (recorte 60×60, ampliado 4×). Note o efeito de blocos no vizinho mais próximo vs. a suavização na bilinear.

2.8.4 Shearing

Shearing is an affine transformation that distorts the image by shifting each pixel proportionally to its position along one axis. The general matrix combines horizontal shear (\(sh_x\)) and vertical shear (\(sh_y\)):

\[ \mathbf{T}_{\text{shear}} = \begin{bmatrix} 1 & sh_x & 0 \\ sh_y & 1 & 0 \\ 0 & 0 & 1 \end{bmatrix} \tag{2.6}\]

For \(sh_x \neq 0\) and \(sh_y = 0\), each row is shifted horizontally proportionally to its vertical position — producing the characteristic “tilt” effect. See the example in Figure 2.11.

%%writefile tmp/fig_02_cisalhamento.cpp
#define MM_OUT "tmp/fig_02_cisalhamento.png"
//| label: fig-02-cisalhamento
//| fig-cap: "Exemplo de cisalhamento da imagem do pássaro: horizontal (shx=0.3), vertical (shy=0.3) e combinado (shx=0.2, shy=0.2)."
//| echo: true
//| output: true

#include "morph.hpp"
#include <iostream>
#include <vector>
#include <filesystem>

int main() {
// [pdi:state-io] auto-generated — do not edit by hand
mm::Image img_gray = mm::_read_state("tmp/state/img_gray_22.png");
// [pdi:state-io:end]

    mm::Image img_shx = mm::shear(img_gray, 0.3, 0.0, "bilinear");
    mm::Image img_shy = mm::shear(img_gray, 0.0, 0.3, "bilinear");
    mm::Image img_shc = mm::shear(img_gray, 0.2, 0.2, "bilinear");

    mm::show(
        std::vector<mm::Image>{img_gray, img_shx, img_shy, img_shc},
        MM_OUT,
        std::vector<std::string>{"Original", "Horiz. (shx=0.3)", "Vert. (shy=0.3)", "Combinado (0.2, 0.2)"},
        4
    );


// [pdi:panel-io] auto-generated — do not edit by hand
std::filesystem::create_directories("tmp");
mm::write(img_gray, "tmp/fig_02_cisalhamento_0.png");
mm::write(img_shx, "tmp/fig_02_cisalhamento_1.png");
mm::write(img_shy, "tmp/fig_02_cisalhamento_2.png");
mm::write(img_shc, "tmp/fig_02_cisalhamento_3.png");
// [pdi:panel-io:end]
return 0;
}

Overwriting tmp/fig_02_cisalhamento.cpp

!g++ -I. -std=c++17 tmp/fig_02_cisalhamento.cpp -o tmp/fig_02_cisalhamento \
  && ./tmp/fig_02_cisalhamento \
  && test -f "tmp/fig_02_cisalhamento.png" \
  || echo "⚠ mm::show não gravou tmp/fig_02_cisalhamento.png"

[1] Original
[2] Horiz. (shx=0.3)
[3] Vert. (shy=0.3)
[4] Combinado (0.2, 0.2)

try:
    mm.show(
        [
            mm.read("tmp/fig_02_cisalhamento_0.png"),
            mm.read("tmp/fig_02_cisalhamento_1.png"),
            mm.read("tmp/fig_02_cisalhamento_2.png"),
            mm.read("tmp/fig_02_cisalhamento_3.png"),
        ],
        titles=[
            'Original',
            'Horiz. (shx=0.3)',
            'Vert. (shy=0.3)',
            'Combinado (0.2, 0.2)',
        ],
        cols=4,
        figsize=(16, 12),
    )
except Exception as _e:
    print("figura indisponivel nesta trilha (C++): " + repr(_e) + " tmp/fig_02_cisalhamento_0.png (ver a versao Python)")

Figure 2.11: Exemplo de cisalhamento da imagem do pássaro: horizontal (shx=0.3), vertical (shy=0.3) e combinado (shx=0.2, shy=0.2).

2.9 Summary

This chapter presented the fundamentals of image digitization and topology:

• Image formation: \(f(x,y) = i(x,y) \cdot r(x,y)\).
• Sampling: discretization of space → spatial resolution \(M \times N\).
• Quantization: discretization of intensity → bit depth \(b\).
• Topological relations: 4-neighborhood, 8-neighborhood, connectivity, distances (Euclidean, Manhattan, Chebyshev).
• Geometric transformations: translation, rotation, scaling (with bilinear or nearest-neighbor interpolation).
• File formats: BMP, PNG, JPEG, TIFF, RAW; each with different trade-offs between quality and size.

Chapter 3 will address spatial operations such as convolution, filtering, and mathematical morphology (erosion, dilation).

2.10 🤖 Using Gemini Notebook as a Complementary Tutor

In this edition, we encourage the use of Gemini Notebook as a complementary learning tool. This AI tool relies exclusively on the documents provided by the author as its knowledge base, ensuring responses consistent with the book’s content.

For each chapter, we have prepared a specific project on the platform. For an enhanced study experience, use the access link below:

Important🎓 Study with the Intelligent Tutor

To interact with the content of this chapter, access the link below. The environment contains teaching materials in different formats, generated from the chapter’s PDF. On the platform, especially explore the Study Guide and Conversation options to deepen your understanding.

🚀 ACCESS GEMINI NOTEBOOK: CHAPTER 02

🌐 Language and Programming Language

The project for this chapter in Gemini Notebook was built using only the text in Portuguese and code examples in Python. If you are studying from the English or French edition, or following the C++ track, the tutor’s responses may not exactly match the version you are reading.

⚠️ Notice on AI-Generated Content

AI is a powerful ally in studying, but the generated content may contain errors or inaccuracies. Always consult books, scientific articles, and other reliable academic sources to validate the information. Whenever possible, run the practical examples provided in this chapter to verify the results.

2.11 Exercise List

1. (15%) Explain, in your own words, the difference between sampling and quantization. Give a concrete example of each in the context of a digital image.

2. (15%) Consider an image with a spatial resolution of 1024 × 768 pixels and a bit depth of 24 bits (8 bits per RGB channel). Calculate the total uncompressed size of the image in bytes and in megabytes.

3. (20%) Using the laboratory code, modify the subsampling factor to 3 and to 6. Visually describe what happens to the edges of objects. What is the aliasing effect?

4. (20%) For the grayscale image, apply quantization with 3 bits (8 levels) and 5 bits (32 levels). Compare the results and explain why 5 bits can already be considered sufficient for many applications.

5. (15%) Given two pixels \(A=(10,20)\) and \(B=(15,25)\), calculate the Euclidean, Manhattan, and Chebyshev distances between them.

6. (15%) Using the mm::rotate function, rotate the bird image at angles of 90°, 180°, and 270° with bilinear interpolation. Compare this with rotation using method='nearest'. In which situations is nearest-neighbor interpolation still useful?

Chapter References

The theoretical foundation of this chapter is based on the following works:

• Gonzalez (2018) for the concepts of sampling, quantization, and relationships between pixels.
• Szeliski (2022) for geometric transformations and connectivity.
• Bradski (2008) for the practical implementation with OpenCV and morph.py.

---

2.12 Chapter 2 - Digital Image Processing: Exercises Proposed (EPs)

This chapter presents a series of proposed exercises (EPs) that complement the theoretical content discussed in the main textbook. These activities aim to consolidate the concepts of digital image representation, color models, and basic operations on pixels, with a focus on practical implementation in Python.

2.13 2.1 - Objectives

• To understand the fundamental concepts of digital images and their representation in computational environments.
• To manipulate images through the Python programming language, using libraries such as NumPy and OpenCV.
• To apply basic operations, including reading, displaying, converting, and saving images.
• To explore different color models and their applications in image processing.
• To develop computational thinking skills by solving problems within the scope of image processing.

2.14 2.2 - Proposed Exercises

For each of the proposed exercises, implement the requested functionality, validating your solution with the provided test cases.

2.14.1 EP 2.1 - Basic Image Reading

Write a program that reads an image from a file, displays it in a window, and saves a copy in another format. Utilize the libraries cv2 and matplotlib as needed.

2.14.2 EP 2.2 - Conversion Between Color Models

Implement a function that converts an image from the RGB model to the HSV model without using the built-in conversion functions from specialized libraries. Compare your result with the output generated by OpenCV’s cvtColor function.

2.14.3 EP 2.3 - Pixel Manipulation

Develop a script that inverts the colors of an image (negative effect), both on the entire image and on a specific region of interest (ROI). Display the original and processed images side by side.

2.14.4 EP 2.4 - Arithmetic Operations

Explore the effect of arithmetic operations (addition, subtraction, multiplication, and division) on image brightness and contrast. Apply these operations to two distinct images or to a constant value, and discuss the observed results.

2.15 2.3 - Additional Challenges

1. Implement a program that creates a color gradient image based on pixel coordinates.
2. Simulate the effect of the “sepia” filter by applying a linear transformation to the RGB channels.
3. Compare the performance of a pixel-by-pixel operation (using loops) with a vectorized implementation using NumPy.

2.16 2.4 - Submission and Evaluation Guidelines

• All code must be properly commented and organized into functions.
• The use of numpy and opencv-python is recommended. To install the dependencies, run:

!pip install numpy opencv-python matplotlib

• Test your solutions using the provided image datasets, available in the course’s repository.
• The final notebook must be submitted via the associated Google Colab link at the beginning of this chapter.

---

This concludes the proposed exercises for Chapter 2. In the following chapter, the focus will shift to the study of spatial filtering techniques.

2.17 💻 Practical Part with Programming Exercises

🎯 Objective of this Notebook

The notebook allows you to develop, validate, organize, and test solutions for Programming Exercises (PEs) in interactive environments, such as Colab, with the same test cases as Moodle, copying them there only when it is time to record the official grade.

Download

Download morph.py and testsuite.py by running the cell below:

import os, urllib.request

os.makedirs("tmp/state", exist_ok=True)  # C++ track build artifacts (.cpp, binary, PNGs)

url = "https://raw.githubusercontent.com/fzampirolli/pdi-vc/master/morph/config.py"
if not os.path.exists("config.py"):
    urllib.request.urlretrieve(url, "config.py")

# The kernel is Python even in the C++ track: `mm` (morph.py) is used by the
# simulators, by the display of figures that the C++ binary generates, and by the
# mm::Image state between cells. cpp=True also downloads the compiled track
# (morph.hpp + stb_image*.h), used in the #include of %%writefile *.cpp cells.
import config
config.setup(testsuite=True, cpp=True)
from morph import mm
from testsuite import TestSuite

✅ Environment ready. Morph: 1.1.9 | OpenCV: 5.0.0 | TestSuite: 1.1.2

Executing Tests

To evaluate the tests, run TestSuite("EP04_01.extension").run() in a new cell, replacing the extension with that of the language used (.py, .java, .c, .cpp, .js, or .r). The system downloads the test cases from GitHub, runs the program, and computes the grade automatically.

To test Python code directly, without saving a file, use run_code(code) by passing the code as a string in a variable code:

code = """
from morph import mm
# ... your code here ...
"""
TestSuite("EP04_01").run_code(code)

2.17.1 EP02_01 ☀️ Brightness and Contrast Adjustment

In this activity, the goal is to implement a point operator for linear intensity transformation, applying dynamic brightness and contrast adjustment to a digital image.

2.17.1.1 📋 Implementation Guidelines

The algorithm should follow the execution flow below:

1. Dimensions: Read the integers \(L\) (rows) and \(C\) (columns) of the matrix.
2. Parameters: Read the real value \(\alpha\) (contrast factor) and the integer \(\beta\) (brightness factor).
3. Data: Read the integer values of the original matrix.
4. Mapping: For each pixel \(p\), compute the new value \(p'\) using the equation:

\[p' = \text{clip}(\text{round}(\alpha \cdot p + \beta))\]

5. Output: Display the resulting matrix with dimensions \(L \times C\).

2.17.1.2 📌 Computational Constraints

• Rounding (Round): Mathematical rounding to the nearest integer is applied before type conversion.
• Clipping (Saturation): Values must be confined to the range \([0, 255]\) to preserve the 8-bit standard:

\[\text{clip}(x) = \max(0, \min(255, x))\]

• Simulation: The effect of the parameters \(\alpha\) and \(\beta\) on histogram correction can be observed in Figure 2.12.

2.17.1.3 🧠 Theoretical Background

These changes modify the image histogram to adjust the illumination profile and tonal distinction.

Parameter	Function	Visual Impact
\(\alpha\) (Alpha)	Scalar	Modulates Contrast. If \(\alpha > 1\), it expands the histogram; if \(0 \le \alpha < 1\), it compresses it.
\(\beta\) (Beta)	Additive	Modulates Brightness. If positive, it shifts the histogram to the right; if negative, to the left.
\(\text{clip}\)	Limiter	Restricts the dynamic range, preventing underflow and overflow errors.

2.17.1.4 📦 Input and Output Specification (VPL)

Input:

• Line 1: Integer \(L\).
• Line 2: Integer \(C\).
• Line 3: Values of alpha (\(\alpha\)) and beta (\(\beta\)).
• Following lines: Numeric elements of the original matrix.

Output:

• Transformed matrix structured into \(L\) rows and \(C\) columns.

2.17.1.5 📌 Examples

The following table presents a practical example of the algorithm’s expected behavior, highlighting the action of the rounding and clipping operators.

Input	Output	Observation
1 4 1.5 -30 0 100 180 255	0 120 240 255	Note the clipping effect on the last pixel

Running the Tests

To evaluate the tests, run TestSuite("EP02_01.extensão").run() in a new cell, replacing the extension with that of the language used (.py, .java, .c, .cpp, .js, or .r). The system downloads the test cases from GitHub, runs the program, and calculates the grade automatically.

☀️ Simulator EP02_01: Linear Brightness and Contrast Adjustment p' = clip(α·p + β)

Adjust the contrast (α) and brightness (β) parameters to apply the point intensity transformation and observe the saturation clipping in the range [0, 255].

α (Contrast / Gain) 1.0

β (Brightness / Offset) 0

Original Input (p)

Transformed Result (p')

Formula applied: clip( round(1.0 · p + (0)) )

Figure 2.12: Simulator EP02_01: Linear Brightness and Contrast Adjustment (p’ = αp + β)

%%writefile EP02_01.cpp
// your solution

Overwriting EP02_01.cpp

TestSuite("EP02_01.cpp").run()

✔️ EP02_01.cases already exists in casos/
📋 8 case(s) loaded from casos/EP02_01.cases

🔍 Testing C++: EP02_01.cpp
⚠️ EP02_01.cpp: Empty file (fewer than 3 lines). Tests skipped.

2.17.2 EP02_02 🔬 Spatial Subsampling

In this activity, you must implement the reduction of the spatial resolution of an image through the subsampling process.

• Read two integers L and C, representing the dimensions of the original matrix.
• Read an integer value \(f\) (\(f \ge 1\)), which represents the sampling factor.
• Read the integer values of the original matrix.
• The new image must be constructed by selecting the pixel at position \((f \cdot i, f \cdot j)\) of the original image.
• Print the resulting matrix with the new dimensions.
• See a simulation of this EP in Figure 2.13.

📌 Important:

• Final Dimensions: The sampled image will have dimensions \(\lceil L/f \rceil \times \lceil C/f \rceil\). In programming terms, this is equivalent to the resulting size of a slice with step \(f\).
• Implementation: Do not use ready-made functions from image processing libraries (such as OpenCV or PIL) for resizing. Implement the pixel selection logic manually or via matrix slicing.
• Aliasing: Note that this process may cause the aliasing effect (jagged edges), where fine details are lost or unwanted patterns appear.

2.17.2.1 🧠 Discretization of Space

Subsampling reduces the spatial resolution of an image by selecting only one pixel every \(f\) pixels in each direction. It is the inverse process of interpolation:

Parameter	Function	Effect
Factor \(f\)	Sampling step	Defines the selection interval. A factor of \(2\) reduces the width and height by half.
Resolution	Pixel density	Decreases the total amount of spatial information in the image.
Aliasing	Side effect	Emergence of staircase patterns or blocks due to the loss of fine details.

2.17.2.2 📋 Task (specification for VPL)

Input:

The first line contains L.

The second line contains C.

The third line contains the factor f.

The following lines contain the elements of the \(L \times C\) matrix.

Output:

The reduced matrix with dimensions corresponding to the slicing by f.

2.17.2.3 📌 Examples

Input	Output	Observation
2 4 2 10 20 30 40 50 60 70 80	10 30	Factor 2 selects pixels (0,0) and (0,2) from the first row. The second row is ignored.

🔽 Simulator EP02_02: Spatial Image Subsampling p'(i, j) = p(i·f, j·f)

Adjust the subsampling factor (f) to observe the reduction in the spatial dimension of the matrix and the skip-sampling of the top-left pixels of each f × f block.

Subsampling Factor (f) 1

f = 1 → Original Resolution (4×4)  |  f = 2 → Half (2×2)  |  f = 3 or 4 → Single Sample (1×1)

Original (4×4)

Subsampled (Variable Size)

Factor f = 1 → keeps all original pixels (4×4)

Figure 2.13: EP02_02 Simulator: Spatial Subsampling (Resolution Reduction by f-Step)

%%writefile EP02_02.cpp
// your solution

Overwriting EP02_02.cpp

TestSuite("EP02_02.cpp").run()

✔️ EP02_02.cases already exists in casos/
📋 5 case(s) loaded from casos/EP02_02.cases

🔍 Testing C++: EP02_02.cpp
⚠️ EP02_02.cpp: Empty file (fewer than 3 lines). Tests skipped.

2.17.3 EP02_03 🎨 Gray Level Quantization

In this activity, you must implement uniform quantization of an image, reducing the number of original gray intensity levels to a new scale based on a smaller number of bits.

• Read two integers L and C, representing the dimensions of the matrix.
• Read an integer \(k\) (\(1 \le k \le 8\)), representing the new number of bits of the image.
• Calculate the number of levels (\(N = 2^k\)) and the interval size (step).
• For each pixel \(p\), calculate the new value \(p'\) by mapping it to the index of the corresponding discretized level (ranging from \(0\) to \(2^k-1\)).
• Print the resulting matrix with the same original dimension values.
• See Figure 2.14 for a simulation of this EP.

📌 Important:

• Posterization: When drastically reducing the number of levels (e.g., \(k=2\)), you will notice that smooth gradients become abrupt color bands due to the loss of amplitude resolution.
• Step Calculation: The interval between each level is defined by \(step = 256 / 2^k\).
• Mapping: The uniform quantization method by truncation that maps the pixel to the index of its respective discretized level is given by:

\[p' = \left\lfloor \frac{p}{step} \right\rfloor\]

In terms of implementation (as in Python), this is equivalent to integer division: p' = p // step.

2.17.3.1 🧠 Amplitude Discretization

While subsampling deals with spatial resolution, quantization focuses on the precision of color (amplitude). Reducing bits means simplifying the chromatic information:

Parameter	Function	Effect
Bits (\(k\))	Color depth	Defines how many different tones the image can have (\(2^k\)).
Step	Tone interval	Spacing between the allowed gray levels.
Posterization	Visual phenomenon	Transformation of continuous variations into blocks of solid color.

2.17.3.2 📋 Task (VPL specification)

Input:

The first line contains L.

The second line contains C.

The third line contains the number of bits k.

The following lines contain the elements of the \(L \times C\) matrix.

Output:

The transformed matrix with the indices of the quantized levels, maintaining the original size \(L \times C\).

2.17.3.3 📌 Examples

Input	Output	Observation
1 4 2 0 80 170 255	0 1 2 3	With \(k=2\), we have \(2^2=4\) discrete levels available (\(0,1,2,3\)). The step is \(256/4=64\). Applying integer division element-wise: \(0 // 64 = 0\), \(80 // 64 = 1\), \(170 // 64 = 2\), \(255 // 64 = 3\).
1 5 1 10 50 120 200 250	0 0 0 1 1	With \(k=1\), we have \(2^1=2\) levels (\(0\) and \(1\)). Step \(=256/2=128\). Pixels less than \(128\) result in \(0\), and pixels greater than or equal to \(128\) result in \(1\).

🎚️ EP02_03 Simulator: Quantization and Bit Depth q = round(p · (L − 1) / 255)

Adjust the number of output bits (b) to observe the mapping of the 256 continuous gray levels to L = 2ᵇ discrete quantization levels.

Number of Output Bits (b) 8

Discrete levels (L = 2ᵇ): 256  |  Values shown: 0 a 255

Original (8 bits → 0…255)

Quantized (Range 0…255)

Output bits = 8 → 256 levels (original values preserved)

Figure 2.14: EP02_03 Simulator: Quantization and Bit Depth (Reduction of Gray Levels)

%%writefile EP02_03.cpp
// your solution

Overwriting EP02_03.cpp

TestSuite("EP02_03.cpp").run()

✔️ EP02_03.cases already exists in casos/
📋 5 case(s) loaded from casos/EP02_03.cases

🔍 Testing C++: EP02_03.cpp
⚠️ EP02_03.cpp: Empty file (fewer than 3 lines). Tests skipped.

2.17.4 EP02_04 📐 Distance Transform in Binary Images

Given a binary image where pixels with value 1 represent the object and pixels with 0 represent the background, the distance of a background pixel is the smallest distance to the nearest object pixel. Object pixels are assigned a distance of 0. For simplicity, consider that the image has only a single object consisting of one pixel with value 1.

Problem: Read a binary image \(L \times C\) and a metric, and compute this simplified distance by applying one of the three formulas:

\[d_{\text{Euclidean}} = \sqrt{(\Delta r)^2 + (\Delta c)^2}\]

\[d_{\text{City-block}} = |\Delta r| + |\Delta c|\]

\[d_{\text{Chessboard}} = \max(|\Delta r|,\; |\Delta c|)\]

where \(\Delta r\) is the row difference and \(\Delta c\) is the column difference between two pixels.

2.17.4.1 🖼️ Why does this matter? - Applications of the DT

The Distance Transform (DT) appears in dozens of computer vision pipelines:

Metric	Complexity	Typical application
Euclidean	🔴 \(O(n^2)\) naive	Skeletonization, shape matching
City-block	🟡 \(O(n)\) with 2 passes	Morphology, dilation/erosion
Chessboard	🟢 \(O(n)\) with 2 passes	Morphology, dilation/erosion

2.17.4.2 📌 Technical Requirements

• Input: * First line: \(L\) and \(C\) (integers).
  • Second line: metric name (euclidean, cityblock, or chessboard).

  • Then, the binary matrix \(L \times C\) (values 0 or 1).
• Object pixels (1): distance \(= 0\) (or \(0.00\) for Euclidean).

• Background pixels (0): distance to the single object pixel in the image.

• Rounding (Euclidean): print with 2 decimal places (format :.2f). City-block and Chessboard produce integers — print without decimals.

• Output: space-separated values, one row of the matrix per line.
• See Figure 2.15 for a simulation of this EP.

2.17.4.3 📌 Examples

Input	Output	Observation
4 4 chessboard 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0	2 2 2 2 2 1 1 1 2 1 0 1 2 1 1 1	The Chessboard distance is \(\max(\|dx\|, \|dy\|)\). The only object pixel is \((2,2)=0\); the others store their minimum distance to it.

2.17.4.4 📌 Final Remarks

• Since the image has only one single-pixel object, the distance of each background pixel is simply the distance from that pixel to the single object point.
• The implementation may use brute force (iterate over all image pixels and compute the distance directly), since \(L\) and \(C\) are small in the test cases.
• This problem serves as a warm-up for the general Distance Transform, which will be addressed in later chapters with multiple objects and optimized algorithms.

📐 Simulator EP02_04: Interactive Distance Transform Metrics: L₁, L₂ and L_∞

Click on the cells of the Binary Image to toggle object pixels (1) and observe the minimum distance map computed in the resulting matrix.

Metric: Chessboard (L_∞) City-block (L₁) Euclidean (L₂)

Binary Image (Click to Edit)

Distance Transform

5×5 grid · 1 object pixel(s) · Metric: Chessboard (integer)

Figure 2.15: EP02_04 Simulator: Distance Transform in Binary Image (Chessboard, City-block and Euclidean)

%%writefile EP02_04.cpp
// your solution

Overwriting EP02_04.cpp

TestSuite("EP02_04.cpp").run()

✔️ EP02_04.cases already exists in casos/
📋 5 case(s) loaded from casos/EP02_04.cases

🔍 Testing C++: EP02_04.cpp
⚠️ EP02_04.cpp: Empty file (fewer than 3 lines). Tests skipped.

2.17.5 EP02_05 ➡️ Image Translation

In this activity, you must implement the spatial displacement of an image. Translation moves each pixel of the original image to a new position based on a displacement vector.

• Read two integers L and C, representing the dimensions of the matrix.
• Read two integers \(t_x\) (horizontal displacement) and \(t_y\) (vertical displacement).
• Read the integer values of the original matrix.
• Calculate the new position \((x', y')\) for each original pixel \((x, y)\).
• Print the resulting matrix with the same dimensions as the original.
• See a simulation of this EP in Figure 2.16.

📌 Important:

• Filling: Pixels that “enter” the image due to displacement and have no corresponding pixel in the original must be filled with 0 (black).
• Discarding: Pixels that, after translation, fall outside the matrix boundaries (\(0 \dots L-1\) or \(0 \dots C-1\)) must be ignored.
• Coordinates: Consider \(x\) as the row index and \(y\) as the column index.

2.17.5.1 🧠 Spatial Displacement

Translating an image means moving all its points by a fixed distance in specified directions. Mathematically, using homogeneous coordinates, the operation is described as:

\[\begin{bmatrix} x' \\ y' \\ 1 \end{bmatrix} = \begin{bmatrix} 1 & 0 & t_x \\ 0 & 1 & t_y \\ 0 & 0 & 1 \end{bmatrix} \begin{bmatrix} x \\ y \\ 1 \end{bmatrix}\]

Which results in the simple equations:

• \(x' = x + t_x\)
• \(y' = y + t_y\)

2.17.5.2 📋 Task (specification for VPL)

Input:

The first line contains L.

The second line contains C.

The third line contains the integers tx and ty.

The following lines contain the elements of the \(L \times C\) matrix.

Output:

The resulting matrix with the same dimensions \(L \times C\) after displacement.

2.17.5.3 📌 Examples

Input	Output	Observation
2 2 1 1 10 20 30 40	0 0 0 10	Displacement (\(t_x=1, t_y=1\)): Each pixel moves one position to the right (horizontal) and one position down (vertical). Pixel \((0,0)=10\) moves to destination \((1,1)\) (bottom-right corner). Empty positions are filled with \(0\).
3 3 -1 0 1 2 3 4 5 6 7 8 9	2 3 0 5 6 0 8 9 0	Displacement (\(t_x=-1, t_y=0\)): Each pixel moves one position to the left (horizontal). The original first column (1, 4, 7) is discarded, the remaining columns move to the left, and the last resulting column is filled with zeros (\(0\)).

📍 Simulator EP02_05: 2D Geometric Translation p'(i, j) = p(i − ty, j − tx)

Adjust the horizontal (tx) and vertical (ty) shifts to observe the reverse coordinate mapping and zero-filling (black) for pixels outside the original image boundaries.

tx (Horizontal → Columns) 0

ty (Vertical ↓ Rows) 0

Original (4×4)

Translated (tx, ty)

tx = 0, ty = 0 → no shift (original image preserved)

Figure 2.16: EP02_05 Simulator: Geometric Image Translation (Displacement tx and ty with Border Filling)

%%writefile EP02_05.cpp
// your solution

Overwriting EP02_05.cpp

TestSuite("EP02_05.cpp").run()

✔️ EP02_05.cases already exists in casos/
📋 5 case(s) loaded from casos/EP02_05.cases

🔍 Testing C++: EP02_05.cpp
⚠️ EP02_05.cpp: Empty file (fewer than 3 lines). Tests skipped.

2.17.6 EP02_06 🔄 Image Rotation

In this activity, you must implement the rotation of an image around its geometric center. This operation requires coordinate mapping and the use of interpolation techniques to determine the new pixel values.

• Read two integers L and C, representing the dimensions of the matrix.
• Read a real value \(\theta\) (angle in degrees) and a string representing the interpolation method (nearest or bilinear).
• Read the integer values of the original matrix.
• Perform the rotation around the image center \((L/2, C/2)\).
• Print the resulting matrix with the same dimensions as the original.
• See Figure 2.17 for a simulation of this EP.

📌 Important:

• Inverse Mapping: To avoid “holes” in the final image, iterate over each pixel \((x', y')\) of the destination image and compute its corresponding position \((x, y)\) in the original image using the inverse rotation matrix.

• Interpolation:

• nearest: Assigns the value of the pixel closest to the computed coordinate.

• bilinear: Computes a weighted average based on the 4 nearest neighbors.

• Borders: Pixels whose origin \((x, y)\) falls outside the bounds of the original image must be filled with 0.

2.17.6.1 🧠 Angle Transformation

The rotation of a point \((x, y)\) relative to the origin by an angle \(\theta\) is given by the transformation matrix. To rotate around a center \((x_c, y_c)\), we first translate the center to the origin, rotate, and translate back:

\[\begin{bmatrix} x' \\ y' \\ 1 \end{bmatrix} = \begin{bmatrix} \cos\theta & -\sin\theta & x_c \\ \sin\theta & \cos\theta & y_c \\ 0 & 0 & 1 \end{bmatrix} \begin{bmatrix} x-x_c \\ y-y_c \\ 1 \end{bmatrix}\]

Tip: Use inverse mapping to ensure that all pixels of the output image are correctly filled.

2.17.6.2 📋 Task (specification for VPL)

Input:

The first line contains L.

The second line contains C.

The third line contains the angle theta (in degrees) and the method interp (nearest or bilinear).

The following lines contain the elements of the \(L \times C\) matrix.

Output:

The rotated matrix with L rows and C columns.

2.17.6.3 📌 Examples

Input	Output	Observation
2 2 90 nearest 1 2 3 4	3 1 4 2	90° clockwise rotation: column 0 becomes row 0 (from bottom to top). \((0,0)=1→(1,0)\), \((1,0)=3→(0,0)\), \((0,1)=2→(1,1)\), \((1,1)=4→(0,1)\).
3 3 45 bilinear 0 0 0 0 255 0 0 0 0	0 180 0 180 255 180 0 180 0	45° rotation: the central pixel remains \(255\); the direct neighbors receive an interpolated value \(\approx 180\) via bilinear; the corners remain \(0\).

🔄 Simulator EP02_06: 2D Geometric Rotation x' = x·cosθ − y·sinθ | y' = x·sinθ + y·cosθ

Adjust the rotation angle (θ) via slider or quick shortcuts to observe the trigonometric transformation of coordinates around the image center.

Rotation Angle (θ in degrees) 0°

● Green square with orange marker (top-right corner) – rotation around the center.

θ = 0° → cos = 1.000, sin = 0.000 → Identity Matrix

Figure 2.17: EP02_06 Simulator: Image Rotation Around Origin by Angle θ

%%writefile EP02_06.cpp
// your solution

Overwriting EP02_06.cpp

TestSuite("EP02_06.cpp").run()

✔️ EP02_06.cases already exists in casos/
📋 5 case(s) loaded from casos/EP02_06.cases

🔍 Testing C++: EP02_06.cpp
⚠️ EP02_06.cpp: Empty file (fewer than 3 lines). Tests skipped.

2.17.7 EP02_07 🔍 Resizing (Scaling)

In this activity, you must implement image resizing using scale factors. Unlike simple subsampling, here we will use interpolation techniques to allow both image enlargement and reduction.

• Read two integers L and C, representing the dimensions of the original matrix.
• Read two real values \(s_x\) (scale along rows) and \(s_y\) (scale along columns).
• Read a string representing the interpolation method (nearest or bilinear).
• Read the integer values of the original matrix.
• Compute the new dimensions: \(L' = \text{round}(L \times s_x)\) and \(C' = \text{round}(C \times s_y)\).
• Print the resulting matrix with the new dimensions.
• See Figure 2.18 for a simulation of this EP.

📌 Important:

• Inverse Mapping: For each pixel \((x', y')\) of the destination image, find the corresponding position in the source using \((x, y) = (x'/s_x, y'/s_y)\).

• Interpolation:

• nearest: Selects the value of the nearest pixel (rounding the coordinates).

• bilinear: Performs double linear interpolation among the four nearest neighboring pixels in the original image.

• Boundaries: Ensure that the mapping does not attempt to access indices outside the range \([0, L-1]\) and \([0, C-1]\).

2.17.7.1 🧠 Interpolation for Enlargement/Reduction

Resizing an image by factors \((s_x, s_y)\) requires filling gaps (in enlargement) or merging information (in reduction). The interpolation method defines the visual quality of the result:

Method	Operation	Visual Effect
Nearest	Takes the value of the nearest neighbor.	Fast, but produces a “pixelated” or blocky effect.
Bilinear	Weighted average of the 4 neighbors (\(2 \times 2\)).	Smooths the image, reducing jaggedness.

2.17.7.2 📋 Task (specification for VPL)

Input:

The first line contains L.

The second line contains C.

The third line contains the factors sx and sy.

The fourth line contains the method interp (nearest or bilinear).

The following lines contain the elements of the \(L \times C\) matrix.

Output:

The resized matrix with dimensions \(L' \times C'\).

2.17.7.3 📌 Examples

Input	Output	Observation
2 2 2.0 2.0 nearest 1 2 3 4	1 1 2 2 1 1 2 2 3 3 4 4 3 3 4 4	2× enlargement: each original pixel is replicated in a 2×2 block. The \(2\times2\) image becomes \(4\times4\).
2 2 0.5 0.5 nearest 10 20 30 40	10	0.5× reduction: the \(2\times2\) image becomes \(1\times1\). With nearest, the only output pixel samples position \((0,0)=10\).

🔍 Simulator EP02_07: Resizing and Interpolation (sx = sy) Nearest vs Bilinear

Adjust the scale factor (s) to compare nearest-neighbor interpolation (discrete replica) with bilinear interpolation (weighted average of the 4 neighbors).

Scale Factor (sx = sy) 1.0

Factor = 1.0 → Original Size (3×3)  |  Factor = 2.0 → 6×6  |  Factor = 4.0 → 12×12

Original (3×3)

🔲 Nearest Neighbor

🌀 Bilinear Interpolation

Factor = 1.00 → size 3×3 (no change)

Figure 2.18: EP02_07 Simulator: Spatial Resizing and Interpolation (Nearest Neighbor vs Bilinear)

# Not yet ported to this language in this version — conceptual reference in Python.
%%writefile EP02_07.py
# Python code
import numpy as np
from morph import mm

# 1. Reading dimensions, factors, and method
l = int(input())
c = int(input())
sx, sy = map(float, input().split())
interp = input().strip()

# 2. Reading the original image
img = mm.readImg(l, c)

# 3. New dimensions
l_new = round(l * sx)
c_new = round(c * sy)

# 4. Resizing using mm.resize
# cv2.resize uses (width, height) = (columns, rows)
resultado = mm.resize(img, (c_new, l_new), method=interp)

# 5. Display
print(mm.drawImg(resultado))

TestSuite("EP02_07.cpp").run()

✔️ EP02_07.cases already exists in casos/
📋 5 case(s) loaded from casos/EP02_07.cases
💥 File EP02_07.cpp not found.

2.17.8 EP02_08 🔀 Shear Transformation

In this activity, you must implement the shear transformation on an image. Shear is an affine transformation that shifts each point in a fixed direction, by an amount proportional to its distance from a line parallel to that direction, resulting in a tilting effect.

• Read two integers L and C, representing the matrix dimensions.
• Read two real values \(sh_x\) (horizontal shear) and \(sh_y\) (vertical shear).
• Read a string representing the interpolation method (nearest or bilinear).
• Read the integer values of the original matrix.
• Apply the transformation while maintaining the original image size (cropping anything that exceeds the boundaries).
• Print the resulting matrix with dimensions \(L \times C\).
• See Figure 2.19 for a simulation of this EP.

📌 Important:

• Inverse Mapping: For each pixel \((x', y')\) of the destination image, compute the corresponding position in the source \((x, y)\) using the inverse shear matrix.
• Filling: Coordinates that result in positions outside the original matrix must be filled with 0.
• Coordinates: For the purposes of this implementation, consider \(x\) as the row index and \(y\) as the column index.

2.17.8.1 🧠 Affine Distortion

Shear alters the image geometry by tilting its axes. The relationship between the original coordinates \((x, y)\) and the transformed ones \((x', y')\) is given by:

\[\begin{bmatrix} x' \\ y' \\ 1 \end{bmatrix} = \begin{bmatrix} 1 & sh_x & 0 \\ sh_y & 1 & 0 \\ 0 & 0 & 1 \end{bmatrix} \begin{bmatrix} x \\ y \\ 1 \end{bmatrix}\]

This results in the following equations:

• \(x' = x + sh_x \cdot y\)
• \(y' = y + sh_y \cdot x\)

2.17.8.2 📋 Task (VPL specification)

Input:

The first line contains L.

The second line contains C.

The third line contains the factors shx and shy.

The fourth line contains the method interp (nearest or bilinear).

The following lines contain the elements of the \(L \times C\) matrix.

Output:

The transformed matrix with the same dimensions \(L \times C\).

2.17.8.3 📌 Examples

Input	Output	Observation
3 3 0.5 0.0 nearest 10 20 30 40 50 60 70 80 90	10 20 30 0 40 50 0 0 70	Horizontal shear: row \(i\) shifts by \(\lfloor i \cdot 0.5 \rfloor\) pixels. Row \(0→0\)px, row \(1→0\)px, row \(2→1\)px. Pixels shifted out are discarded, and empty positions are filled with \(0\).
2 2 0.0 1.0 nearest 10 20 30 40	10 0 30 20	Vertical shear: column \(j\) shifts down by \(\lfloor j \cdot 1.0 \rfloor\) pixels. Column \(0→0\)px (unchanged), column \(1→1\)px: \(20\) moves down to \((1,1)\) and \((0,1)\) becomes \(0\).

✂️ Simulator EP02_08: Shear 2D x' = x + shx·y | y' = y + shy·x

Adjust the horizontal (shx) and vertical (shy) shear coefficients to observe the angular deformation of the image via reverse coordinate mapping.

shx (Horizontal → f(y)) 0.00

shy (Vertical ↓ f(x)) 0.00

Original (4×4)

Sheared (Nearest Neighbor)

shx = 0.00, shy = 0.00 → no angular deformation (original image)

Figure 2.19: EP02_08 Simulator: 2D Shear Geometric Transformation (Horizontal and Vertical Shear)

%%writefile EP02_08.cpp
// your solution

Overwriting EP02_08.cpp

TestSuite("EP02_08.cpp").run()

✔️ EP02_08.cases already exists in casos/
📋 5 case(s) loaded from casos/EP02_08.cases

🔍 Testing C++: EP02_08.cpp
⚠️ EP02_08.cpp: Empty file (fewer than 3 lines). Tests skipped.

2.17.9 EP02_09 🧩 Generic Affine Transformation

In this activity, you must implement an arbitrary affine transformation on an image. This operation is the generalization of all linear transformations (scaling, rotation, shearing) combined with translation, allowing complex geometric manipulations through a single matrix.

• Read two integers L and C, representing the dimensions of the matrix.
• Read six real values (\(a, b, t_x, c, d, t_y\)) that compose the \(2 \times 3\) affine transformation matrix.
• Read a string representing the interpolation method (nearest or bilinear).
• Read the integer values of the original matrix.
• Apply the transformation while maintaining the original size \(L \times C\).
• Print the resulting matrix.
• See Figure 2.20 for a simulation of this EP.

📌 Important:

• Inverse Mapping: To compute the value of each pixel in the destination image, you must use the inverse of the provided affine transformation matrix to find the corresponding coordinate in the original image.
• Filling: Computed coordinates that fall outside the bounds \([0, L-1]\) and \([0, C-1]\) of the original image must result in a pixel with value 0.
• Flexibility: This implementation must be able to perform any of the previous tasks (translation, rotation, etc.) simply by changing the matrix parameters.

Hint:

flags = cv2.INTER_NEAREST if interp == 'nearest' else \
        cv2.INTER_CUBIC   if interp == 'bicubic'  else \
        cv2.INTER_LANCZOS4 if interp == 'lanczos' else \
        cv2.INTER_LINEAR

r = cv2.warpAffine(img, M, (C, L), flags=flags)

2.17.9.1 🧠 Combining Operations

The affine transformation preserves points, lines, and planes. In image processing, it maps the position \((x, y)\) to \((x', y')\) following the system:

\[\begin{bmatrix} x' \\ y' \end{bmatrix} = \begin{bmatrix} a & b \\ c & d \end{bmatrix} \begin{bmatrix} x \\ y \end{bmatrix} + \begin{bmatrix} t_x \\ t_y \end{bmatrix}\]

Or, compactly in homogeneous coordinates:

\[\begin{bmatrix} x' \\ y' \\ 1 \end{bmatrix} = \begin{bmatrix} a & b & t_x \\ c & d & t_y \\ 0 & 0 & 1 \end{bmatrix} \begin{bmatrix} x \\ y \\ 1 \end{bmatrix}\]

2.17.9.2 📋 Task (specification for VPL)

Input:

The first line contains L.

The second line contains C.

The third line contains six floats: a b tx c d ty.

The fourth line contains the method interp (nearest or bilinear).

The following lines contain the elements of the \(L \times C\) matrix.

Output:

The transformed matrix with the original dimensions \(L \times C\).

2.17.9.3 📌 Examples

Input	Output	Observation
2 2 1.0 0.0 0.5 0.0 1.0 0.5 bilinear 10 20 30 40	15 20 25 30	Fractional translation \((t_x=0.5, t_y=0.5)\): each output pixel \((i,j)\) samples the position \((i+0.5,\, j+0.5)\) from the input via bilinear interpolation. E.g., \((0,0)\) interpolates the four neighbors \(→15\).
3 3 2.0 0.0 0.0 0.0 2.0 0.0 nearest 1 2 3 4 5 6 7 8 9	1 1 2 1 1 2 4 4 5	\(2\times\) scaling via the affine matrix \((a=2, d=2)\): each output pixel \((i,j)\) samples the position \((2i, 2j)\) from the input with nearest. E.g., \((0,2)→(0,4)\) outside the image \(→\) nearest clips to \((0,2)=3\)… awaiting confirmation of the border logic.

📐 Simulator EP02_09: 2D Affine Transformation [x'] = [a b tx]·[x y 1]ᵀ

Adjust the parameters of the 2×3 affine matrix (rotation, scale, shear, and translation) and observe the effect applied to the reference figure.

2×3 affine matrix

a b tx

c d ty

● Orange arrow (triangular tip) + black rectangular body. The affine transformation is applied to the entire figure.

Matrix = [[1.0, 0.0, 0], [0.0, 1.0, 0]] → identity transformation.

Figure 2.20: Simulator EP02_09: Affine Transformation 2D (2×3 Matrix)

%%writefile EP02_09.cpp
// your solution

Overwriting EP02_09.cpp

TestSuite("EP02_09.cpp").run()

✔️ EP02_09.cases already exists in casos/
📋 5 case(s) loaded from casos/EP02_09.cases

🔍 Testing C++: EP02_09.cpp
⚠️ EP02_09.cpp: Empty file (fewer than 3 lines). Tests skipped.

2.17.10 EP02_10 🎯 Perspective Correction (Homography)

In this activity, you must implement the perspective transformation, also known as homography. Unlike affine transformations, perspective does not preserve parallelism, allowing you to “rectify” tilted objects, such as documents or signs captured at oblique angles.

• Read two integers L and C, representing the dimensions of the original matrix.
• Read four coordinate pairs \((x, y)\) representing the corners of the source quadrilateral (distorted object).
• Read four coordinate pairs \((x, y)\) representing the corners of the destination quadrilateral (where the object should be mapped).
• Read the values of the original matrix.
• Compute the \(3 \times 3\) homography matrix and apply the transformation.
• Print the resulting matrix with the specified output dimensions.
• See Figure 2.21 for a simulation of this EP.

📌 Important:

• Degrees of Freedom: The homography has 8 degrees of freedom (the ninth element of the \(3 \times 3\) matrix is a normalization constant, usually 1), requiring at least 4 corresponding points to be computed.
• Projection: After multiplying the coordinates by the matrix, you must divide the results \(x'\) and \(y'\) by the homogeneous component \(w\) to return to the 2D plane.
• Use of Libraries: For this task, you may use the functions cv2.getPerspectiveTransform to obtain the matrix and cv2.warpPerspective to apply the transformation, or implement the linear system and inverse mapping manually for an extra challenge.

# Output dimensions: bounding box of destination points + 1
w = int(max(pts2[:, 0])) + 1; h = int(max(pts2[:, 1])) + 1
# M = cv2.getPerspectiveTransform(pts1, pts2)
# dst = cv2.warpPerspective(img, M, (w, h))
# or
dst = mm.perspective_transform(img, pts1, pts2, size=(w, h))

2.17.10.1 🧠 Non-affine Deformation

While affine transformations map parallelograms to parallelograms, the homography maps any quadrilateral to another quadrilateral. This is essential for computer vision:

Operation	Characteristic	Typical Application
Homography	Plane projection	Document correction, plate scanning.
Vanishing Point	Line convergence	3D reconstruction from 2D images.
Warping	Mesh deformation	Video stabilization and panoramas (stitching).

2.17.10.2 📌 Examples

Input	Output	Observation
4 4 0 0 3 0 0 3 3 3 0 0 3 0 0 3 3 3 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160	10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160	The first 4 lines after the dimensions are the source points; the following 4 are the destinations. With identical points, the perspective transformation is the identity and the image is preserved.

📐 Simulator EP02_10: Perspective Correction (3×3 Homography) p' = H · p

💡 Instructions: Drag the 4 markers at the corners of the distorted quadrilateral. Click Correct Perspective to map the projected region to an aligned 300×300 pixel rectangle.

Drag the red vertices to change the perspective projection. The homography computes the 3×3 H matrix that rectifies the region.

Figure 2.21: Simulator EP02_10: Perspective Correction (3×3 Homography Transformation)

%%writefile EP02_10.cpp
// your solution

Overwriting EP02_10.cpp

TestSuite("EP02_10.cpp").run()

✔️ EP02_10.cases already exists in casos/
📋 5 case(s) loaded from casos/EP02_10.cases

🔍 Testing C++: EP02_10.cpp
⚠️ EP02_10.cpp: Empty file (fewer than 3 lines). Tests skipped.

2.17.11 EP02_11 🏆 Perspective Correction (Homography) in a Real Image

In this activity, the goal is to apply perspective transformation (homography) to “rectify” a tilted object in a real photograph. You will work with an image of a newspaper, where the grid of a Sudoku puzzle is distorted due to the angle at which the photo was taken.

Your program must read input parameters from the terminal, load the image, compute the \(3 \times 3\) homography matrix, apply the geometric transformation, and display a global validation indicator.

• Read two integers L and C, representing the row and column dimensions (height and width) that the rectified output image should have.
• Read four coordinate pairs \((x, y)\) from the terminal, representing the four corners of the source quadrilateral (the distorted Sudoku in the original image).
• Automatically compute the four destination coordinate pairs using the provided dimensions \(L\) and \(C\), mapping the corners to the edges of the new image: \((0,0)\), \((C-1, 0)\), \((0, L-1)\), and \((C-1, L-1)\).
• Load the local image sudoku.png and convert it to grayscale.
• Compute the homography matrix and apply the spatial transformation to the image.
• Output: Calculate and print the sum of all pixels of the resulting image.

📌 Important:

• Input file: The image sudoku.png must be in the same folder as the script. The program must read it directly from disk (e.g., using mm::read("sudoku.png") or cv2.imread).
• Point Order: Ensure that the reading of the 4 source points and the generation of the 4 destination points strictly follow the same corner order: Top-Left (TL), Top-Right (TR), Bottom-Left (BL), and Bottom-Right (BR).
• Dimensions in OpenCV: Remember that functions such as cv2.warpPerspective expect the output image size in the format (width, height), which is equivalent to (C, L).
• Interpolation: To ensure mathematical consistency of the pixel sum with the automatic grader, use the default bilinear interpolation (flags=cv2.INTER_LINEAR).
• Credits: The image used is “Sudoku en periódico” by Héctor Rodríguez, licensed under CC BY 2.0.

2.17.11.1 🧠 Problem Context

The homography has 8 degrees of freedom, requiring at least 4 point correspondences to be computed. Unlike affine transformations, it maps any quadrilateral to another quadrilateral, allowing lines that converge to vanishing points to become parallel again:

Operation	Characteristic	Typical Application
Homography	Projection between planes	Document rectification, scanning of plates and QR Codes.
Inverse Mapping	Scanning from destination to source	Avoids “holes” or empty pixels in the final rectified image.
Warping	Spatial resampling	Correction of lens distortion and panorama stitching.

2.17.11.2 📌 Examples

Input	Output	Observation
500 500 100 120 420 95 80 440 450 460	32982820	The first two inputs are the output dimensions (\(L\) and \(C\)). The following 4 lines are the \((x, y)\) coordinates of the Sudoku corners in the original image + PAD. The output is the total sum of pixels of the rectified image.
200 200 100 120 420 95 80 440 450 460	5277150	Same source points as the previous example, but generating a smaller output image (\(200 \times 200\)). The pixel sum decreases proportionally due to the scale.

2.17.11.3 Sudoku image acquisition and conversion to grayscale

Figure 2.22 shows the reading of the original image followed by its conversion to grayscale and resizing to a \(500 \times 500\) pixel matrix, preparing the data for the next step.

The perspective correction, applied at Figure 2.23 via the homography matrix, eliminates distortions caused by the camera angle and produces a frontal, regular view of the Sudoku grid.

%%writefile tmp/fig_02_sudoku_original.cpp
#define MM_OUT "tmp/fig_02_sudoku_original.png"
//| label: fig-02-sudoku-original
//| fig-cap: "Aquisição da imagem de um Sudoku à esquerda. À direita, conversão para tons de cinza e redimensionamento. Crédito: Héctor Rodríguez de Guardamar, Espanha (CC BY 2.0)."
//| echo: false
//| output: true

#include "morph.hpp"
#include <string>
#include <vector>
#include <filesystem>

int main() {
    std::string url = "https://upload.wikimedia.org/wikipedia/commons/e/e7/Sudoku_en_peri%C3%B3dico.jpg";
    mm::Image sudoku_rgb = mm::read(url);
    mm::Image sudoku_gray = mm::gray(sudoku_rgb);
    mm::Image sudoku_small = mm::resize(sudoku_gray, 500, 500);
    mm::write(sudoku_small, "sudoku.png");   // consumida pela célula fig-02-sudoku2

    mm::show(
        std::vector<mm::Image>{sudoku_rgb, sudoku_small},
        MM_OUT,
        std::vector<std::string>{"Original RGB", "Cinza 500x500"},
        2
    );

// [pdi:panel-io] auto-generated — do not edit by hand
std::filesystem::create_directories("tmp");
mm::write(sudoku_rgb, "tmp/fig_02_sudoku_original_0.png");
mm::write(sudoku_small, "tmp/fig_02_sudoku_original_1.png");
// [pdi:panel-io:end]
return 0;
}

Overwriting tmp/fig_02_sudoku_original.cpp

!g++ -I. -std=c++17 tmp/fig_02_sudoku_original.cpp -o tmp/fig_02_sudoku_original \
  && ./tmp/fig_02_sudoku_original \
  && test -f "tmp/fig_02_sudoku_original.png" \
  || echo "⚠ mm::show não gravou tmp/fig_02_sudoku_original.png"

[1] Original RGB
[2] Cinza 500x500

try:
    mm.show(
        [
            mm.read("tmp/fig_02_sudoku_original_0.png"),
            mm.read("tmp/fig_02_sudoku_original_1.png"),
        ],
        titles=[
            'Original RGB',
            'Cinza 500x500',
        ],
        cols=2,
    )
except Exception as _e:
    print("figura indisponivel nesta trilha (C++): " + repr(_e) + " tmp/fig_02_sudoku_original_0.png (ver a versao Python)")

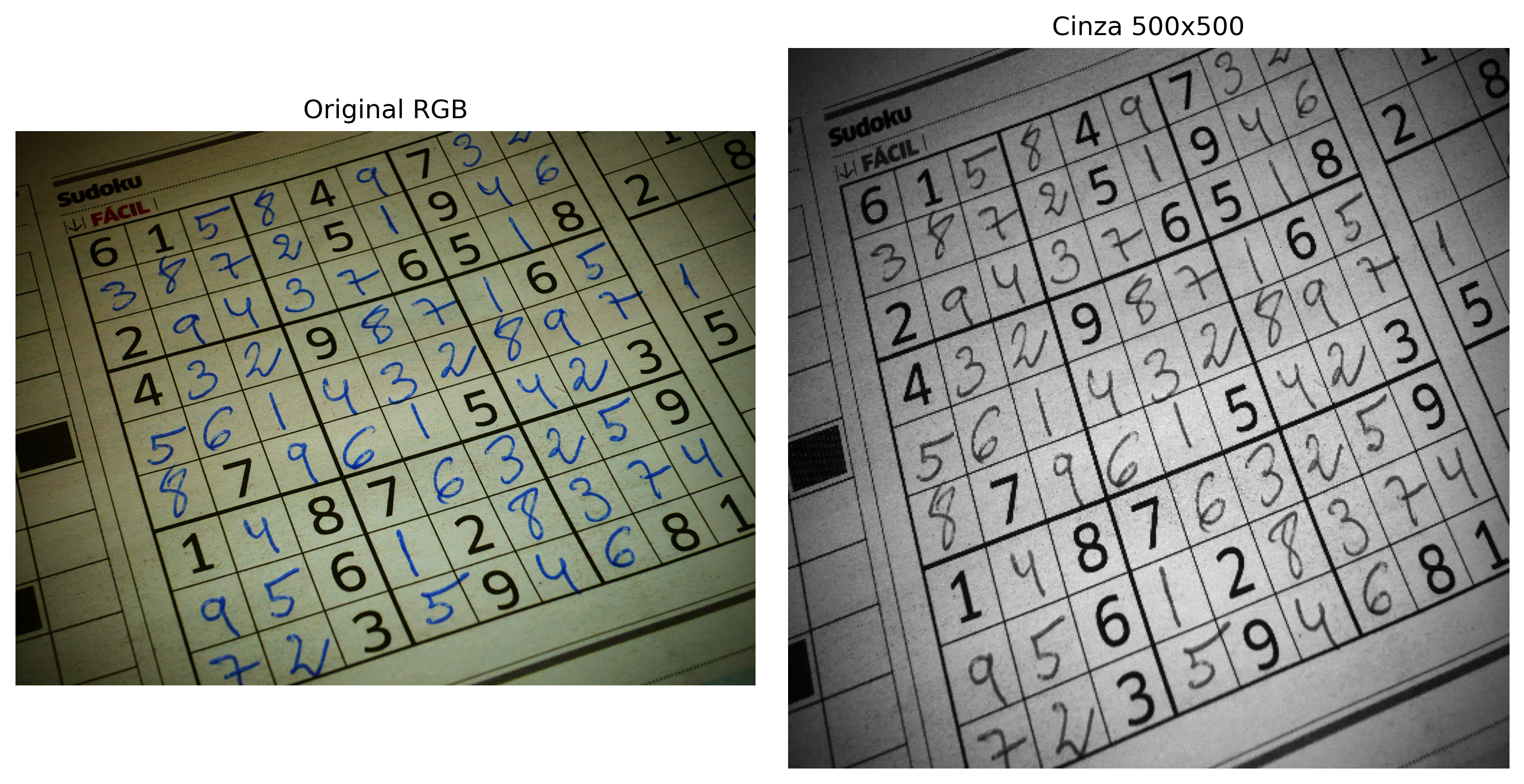

Figure 2.22: Aquisição da imagem de um Sudoku à esquerda. À direita, conversão para tons de cinza e redimensionamento. Crédito: Héctor Rodríguez de Guardamar, Espanha (CC BY 2.0).

%%writefile tmp/fig_02_sudoku2.cpp
#define MM_OUT "tmp/fig_02_sudoku2.png"
#include "morph.hpp"
#include <iostream>
#include <vector>
#include <array>
#include <string>
#include <filesystem>

int main() {
    // 1. Image saved by the previous cell (sudoku.png, 500×500, gray)
    mm::Image img = mm::read("sudoku.png");

    // 2. Padding so the grid corners aren't cut off (mm::pad fills with 0)
    const int PAD = 60;
    mm::Image img_pad = mm::pad(img, PAD);

    // 3. Grid corners in the expanded image — TL, TR, BL, BR
    std::vector<std::array<double, 2>> pts1 = {{100, 160}, {390, 45}, {200, 580}, {570, 420}};

    // 4. Destination corners: front view SIZE×SIZE
    const int SIZE = 500;
    std::vector<std::array<double, 2>> pts2 = {{0, 0}, {SIZE, 0}, {0, SIZE}, {SIZE, SIZE}};

    // 5. Homography pts1 -> pts2 and rectification
    mm::Image img_rect = mm::perspective_transform(img_pad, pts1, pts2, SIZE, SIZE);

    // 6. Display
    mm::show(
        std::vector<mm::Image>{img_pad, img_rect},
        MM_OUT,
        std::vector<std::string>{"Original (with padding)", "Rectified front view"},
        2
    );


// [pdi:panel-io] auto-generated — do not edit by hand
std::filesystem::create_directories("tmp");
mm::write(img_pad, "tmp/fig_02_sudoku2_0.png");
mm::write(img_rect, "tmp/fig_02_sudoku2_1.png");
// [pdi:panel-io:end]
return 0;
}

Overwriting tmp/fig_02_sudoku2.cpp

!g++ -I. -std=c++17 tmp/fig_02_sudoku2.cpp -o tmp/fig_02_sudoku2 \
  && ./tmp/fig_02_sudoku2 \
  && test -f "tmp/fig_02_sudoku2.png" \
  || echo "⚠ mm::show não gravou tmp/fig_02_sudoku2.png"

[1] Original (with padding)
[2] Rectified front view

try:
    mm.show(
        [
            mm.read("tmp/fig_02_sudoku2_0.png"),
            mm.read("tmp/fig_02_sudoku2_1.png"),
        ],
        titles=[
            'Original (com padding)',
            'Vista frontal retificada',
        ],
        cols=2,
    )
except Exception as _e:
    print("figura indisponivel nesta trilha (C++): " + repr(_e) + " tmp/fig_02_sudoku2_0.png (ver a versao Python)")

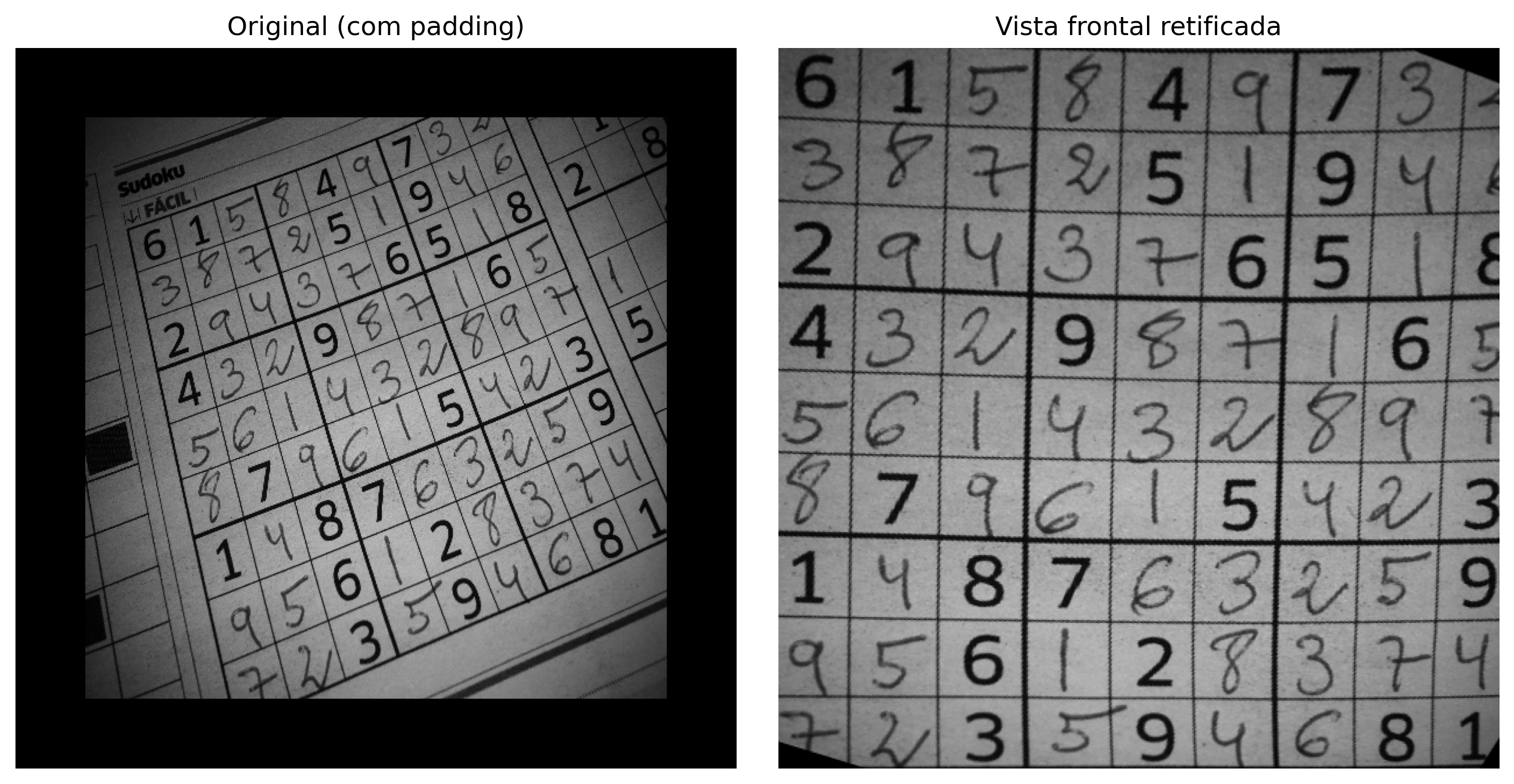

Figure 2.23: Correção de perspectiva por homografia 3×3: imagem com padding e a vista frontal retificada, via mm::perspective_transform (solve 8×8 dos 4 pontos + mapeamento inverso projetivo).

🎮 Simulator EP02_11: Sudoku Perspective 3×3 Homography · CC BY 2.0

📷 Original (Expanded) — Drag the Corners Photo: Héctor Rodríguez · CC BY 2.0

✅ Corrected (400×400) — Frontal View

Loading Sudoku image...

Figure 2.24: EP02_11 Simulator: Sudoku Perspective Correction (3×3 Homography with Bilinear Resampling)

%%writefile EP02_11.cpp
// your solution

Overwriting EP02_11.cpp

TestSuite("EP02_11.cpp").run()

✔️ EP02_11.cases already exists in casos/
📋 4 case(s) loaded from casos/EP02_11.cases

🔍 Testing C++: EP02_11.cpp
⚠️ EP02_11.cpp: Empty file (fewer than 3 lines). Tests skipped.
