1  Fundamentals and First Steps

This chapter inaugurates Part 1 of the book, dedicated to the fundamentals of Digital Image Processing (DIP). The mathematical representation of digital images and the main methods for their manipulation are presented.

Python language and the morph.py library (ZAMPIROLLI, 2025) are used.

1.1 Objectives

At the end of this chapter, you will be able to:

  • Understand the physical and mathematical nature of the digital image \(f(x,y)\).

  • Identify the bands of the electromagnetic spectrum relevant to DIP.

  • Perform basic operations: reading, displaying, and saving images.

  • Access and modify pixel intensities individually.

  • Apply manual thresholding.

  • Set up the Python development environment.

  • Handle array structures (NumPy) without falling into memory traps.

1.2 Before you begin: Interactive Notebooks

This material was built under the concept of Literate Programming, conceived by Donald Knuth in the 1980s (KNUTH, 1984). Knuth — also the creator of the TeX system for digital typesetting — proposed that programs be written as a logical narrative for human beings, interleaving code and documentation.

To run a cell, press Shift + Enter or click the ▶️ button.

NoteNote on the format

In rendered versions (PDF or HTML), the code is presented in static blocks for reading and reference purposes. Interactive execution requires access via Google Colab (available at the top of the page) or in a local environment via VSCode or Jupyter Notebook.

1.3 Fundamentals

The study of image-based systems encompasses an ecosystem of integrated disciplines that transform raw visual data into structured knowledge. While some areas focus on generating representations, others are dedicated to processing and analyzing this data to support complex technological applications.

The diagram presented in Figure 1.1 establishes the distinction and complementarity between Digital Image Processing (DIP) and Computer Vision (CV). DIP, highlighted in green, focuses on image-to-image transformation, aiming at quality improvement or preprocessing, such as noise removal and contrast enhancement.

In contrast, CV, marked in blue, focuses on interpreting visual content to extract models or information, such as object and gesture recognition. The intersection region illustrates the synergy between the areas, where DIP prepares the visual data for interpretation by CV. The map also demonstrates the interconnections of both disciplines with areas such as Robotics, Computer Graphics, Artificial Intelligence (AI), and Neuroscience.

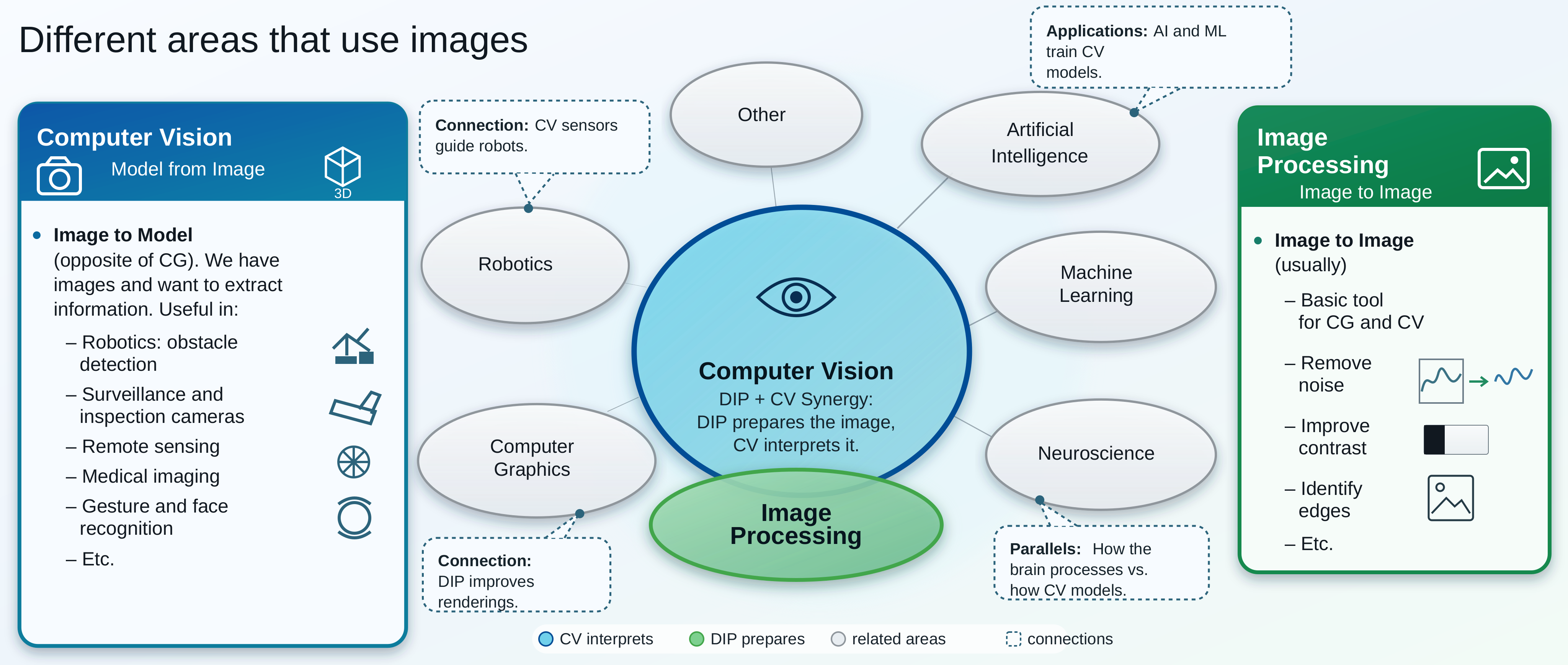

Figure 1.1: Relational diagram detailing the fundamental distinctions, synergies, and interconnections between DIP and CV in the context of image-based systems.

1.3.1 👁️ Computer Vision

  • Focus: Image → Model (inverse path of Computer Graphics).
  • Goal: Extract high-level information from images or videos.
  • Typical applications:
    • Robotics – obstacle detection, localization, and autonomous navigation.
    • Surveillance and inspection – event recognition, license plate reading, quality control.
    • Remote sensing – satellite image analysis, environmental mapping.
    • Medical imaging – tumor detection, organ segmentation, diagnostic support.
    • Human–computer interaction – gesture recognition, facial expression analysis, eye tracking.
  • Relationship with other fields: leverages Machine Learning and AI techniques to classify and interpret scenes; serves as the “eyes” of Robotics.

1.3.2 🖼️ Digital Image Processing (DIP)

  • Focus: Image → Image (typically—transformation of one image into another).
  • Objective: Enhance visual quality or extract low-level features.
  • Common applications:
    • Noise removal (mean, median, and Gaussian filters).
    • Contrast enhancement (histogram equalization, gamma adjustment).
    • Edge detection (Sobel, Canny, Laplacian).
    • Segmentation (thresholding, region growing, watershed).
    • Geometric transformations (resizing, rotation, perspective correction).
  • Relationship with other areas (see Table 1.1):
    • It is the foundation for most CV systems (preprocessing).
    • Computer Graphics often applies DIP for postprocessing (e.g., smoothing, enhancement).
    • AI techniques can optimize processing parameters (e.g., filter learning).
Table 1.1: Connection among IP, CV, and other scientific areas.
Area Relation with IP and CV
Artificial Intelligence Provides models (neural networks, SVM) that interpret CV outputs.
Robotics Consumes CV data for decision-making (navigation, manipulation).
Machine Learning Uses descriptors extracted by IP/CV to train classifiers.
Computer Graphics Inverse path: model → image; often applies IP for realistic rendering.
Neuroscience Inspires IP models (e.g., filters similar to retinal ganglion cells).

1.4 PDI Stages

The PDI stages are presented in Figure 1.2, which can be understood as a chain of transformations that reduces data redundancy in search of meaning:

  • Low Level: Acts directly on the pixels of the noisy image to perform enhancements and filtering, producing as output a clean or enhanced image.
  • Medium Level: Receives the processed image and performs segmentation and description, transforming the pixel matrix into structured attributes (shape, size, and texture).
  • High Level: Uses the attribute table to feed logic and artificial intelligence processes, resulting in the final decision or recognition (such as medical diagnosis).

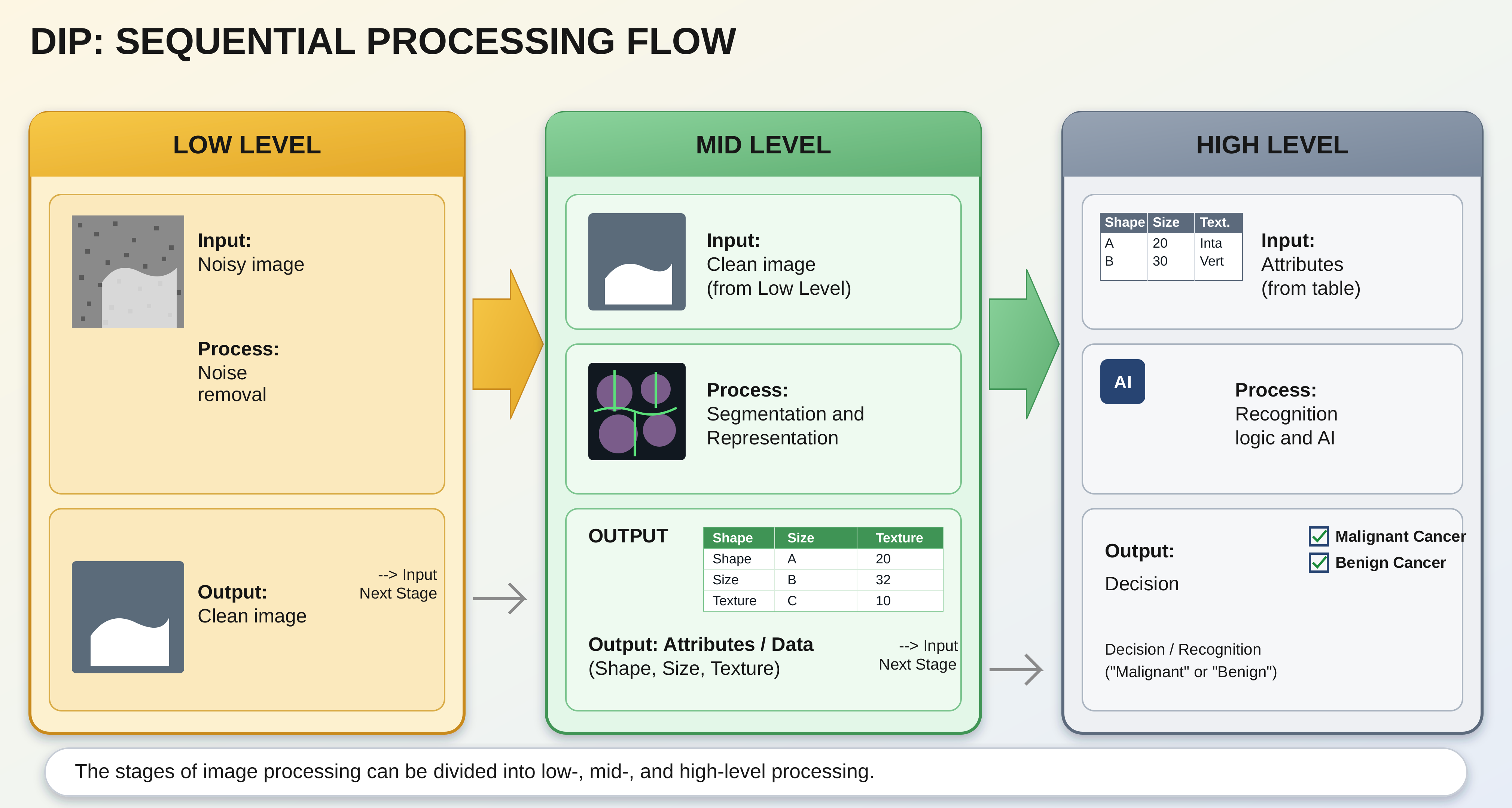

Figure 1.2: Representation of the sequential processing flow: the output of each level becomes the input of the subsequent level.

Figure 1.3 details the complete sequence of digital image processing (DIP), from acquisition to interpretation. The flow begins with Image Acquisition (1) and proceeds through Enhancement (2) and Restoration (3). Next, the content is isolated by Segmentation (4) and refined by Morphology (5). The crucial transition occurs in Representation and Description (6), where visual objects are converted into mathematical data (area, perimeter, etc.), enabling Recognition (7). Auxiliary processes include Color Image Processing and Compression, which contribute to the efficiency of storage and analysis.

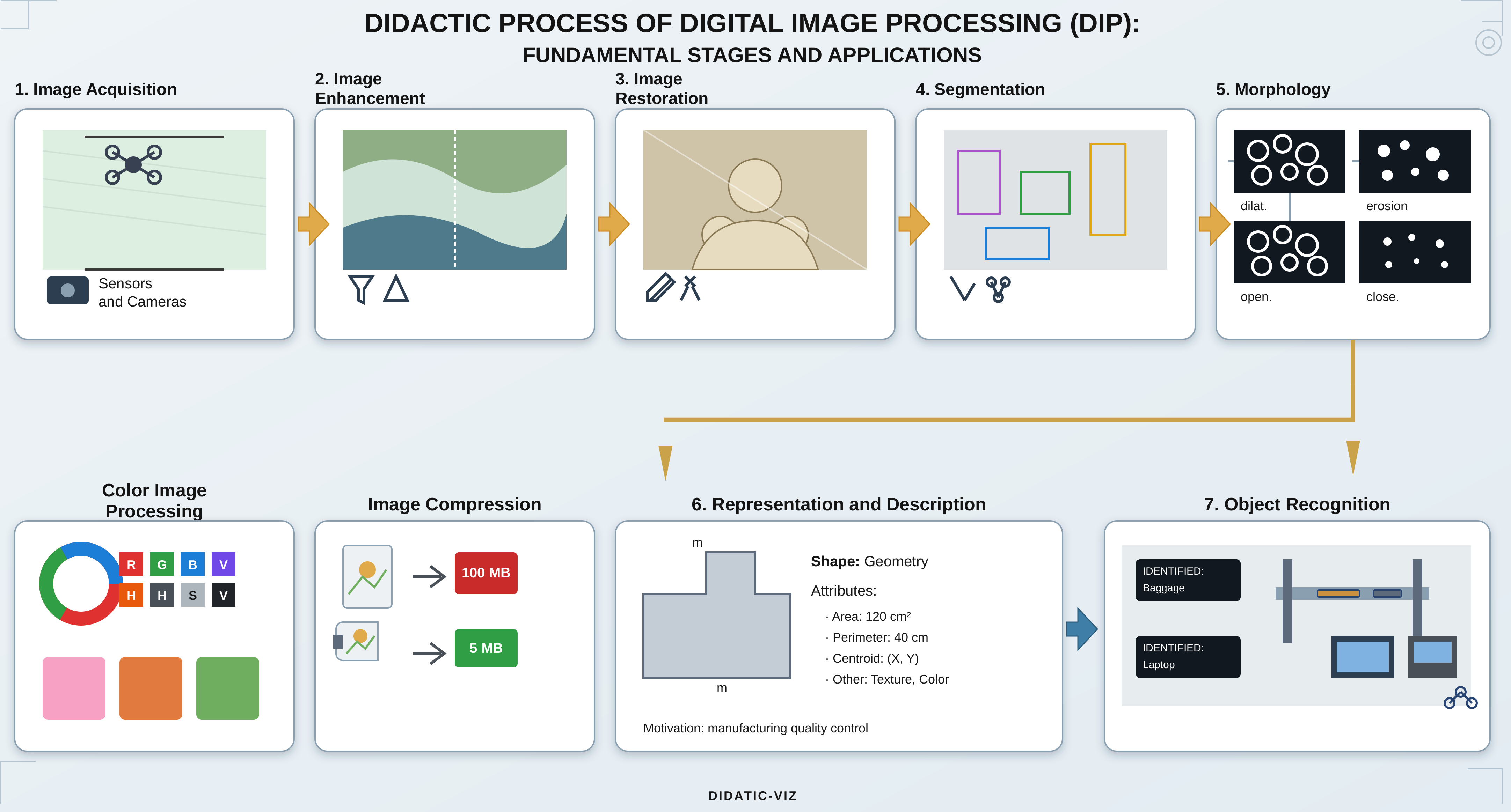

Figure 1.3: Detailed DIP flow: from sensory acquisition to attribute extraction and automated recognition, including color processing and compression.

1.5 Image Formation and the Spectrum

The image formation process is grounded in the interaction between matter and radiant energy. Essentially, an image is conceived when a sensor records the radiation resulting from the interaction with a physical object. In the context of human vision and conventional photography, this phenomenon depends on a light source that illuminates the scene; the characteristics of the objects are then encoded through variations in intensity and color of the light reaching the sensor, as illustrated in Figure 1.4.

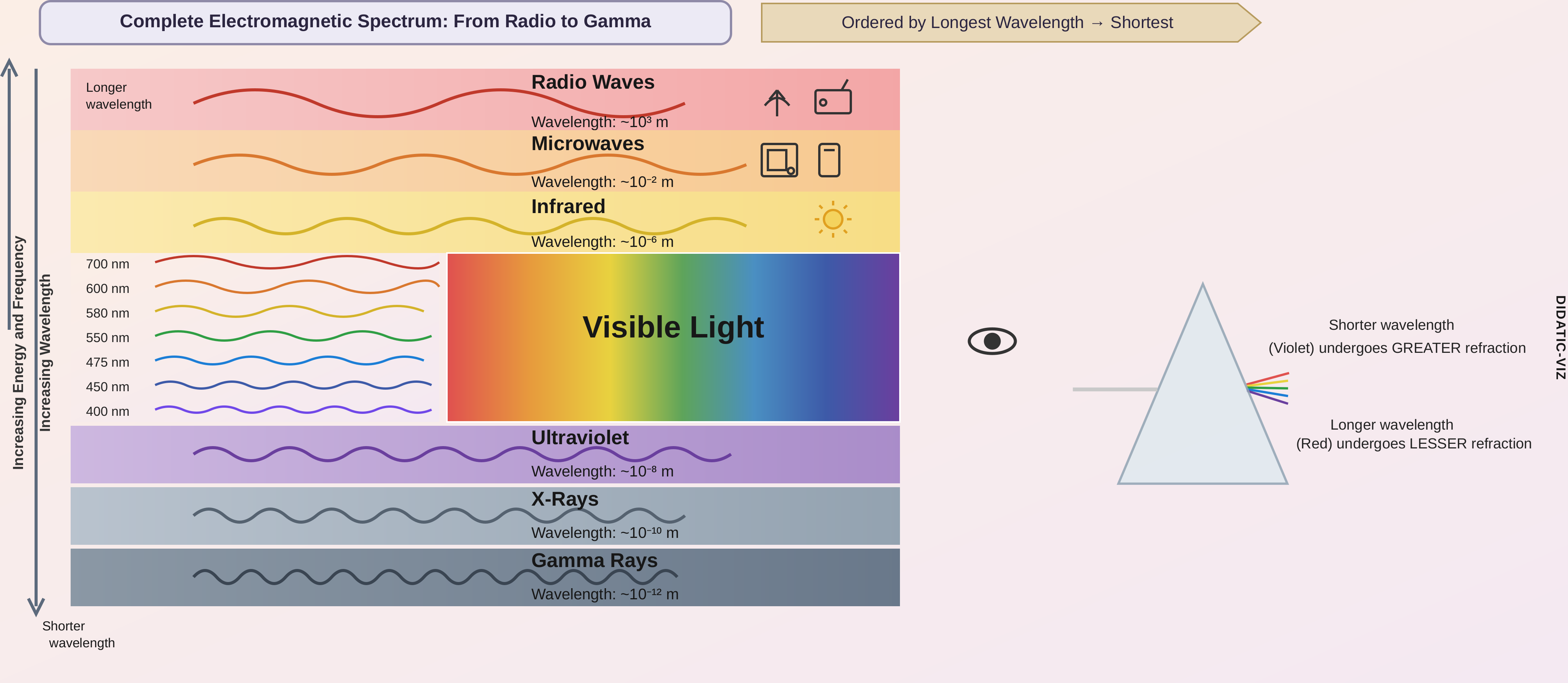

Figure 1.4: Representation of the visible spectrum and its position relative to other electromagnetic radiations, highlighting the variation in wavelengths from 380 nm to 750 nm.

Visible light occupies only a small band of the electromagnetic spectrum — between 380 nm (violet) and 750 nm (red) — as illustrated in Figure 1.5. Conventional digital sensors operate within this same window, but specialized equipment can capture radiation invisible to the human eye, such as infrared and X-rays. In digital image processing (DIP), the image formed depends directly on the spectral sensitivity of the sensor used.

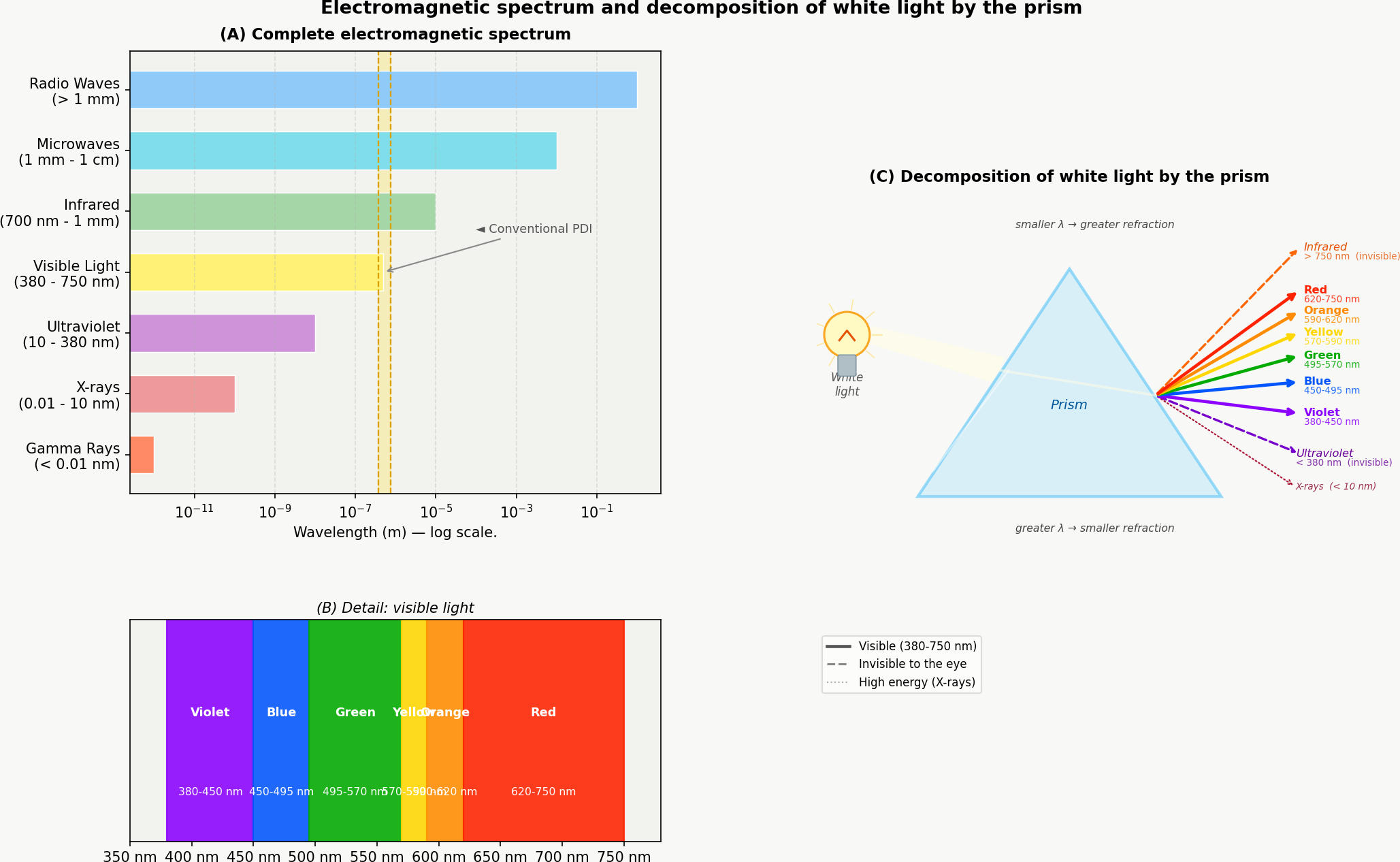

Figure 1.5: (A) Complete electromagnetic spectrum on a logarithmic scale, highlighting the visible range. (B) Detail of visible light (380–750 nm) and its colors. (C) Decomposition of white light by the prism: shorter wavelengths undergo greater refraction, separating UV, visible, and infrared light.

From this physical acquisition process, it becomes possible to mathematically model the digital image as a discrete two-dimensional function, in which each point of the scene is represented by numerical samples of light intensity, thus formalizing the concepts of pixel and digital image presented in the next section.

1.6 What is a Digital Image?

A digital image is formed by a grid of pixels (Picture Elements), where each pixel is the smallest elementary unit of the image.

TipWhat is a Pixel?

A pixel is the smallest addressable unit that makes up a digital image. Each pixel occupies a unique position in the grid and stores one or more numerical values that represent its intensity or color.

Mathematical Representation

Unlike a continuous function, the domain of a digital image is a finite rectangular plane \(\mathbb{E} \subset \mathbb{Z}^2\), which represents the sampling grid. This domain is indexed by integer coordinates:

\[ \mathbb{E} = \{ (x, y) \in \mathbb{Z}^2 \mid 0 \le x < L,\; 0 \le y < H \} \tag{1.1}\]

Where:

  • \(L\): represents the width of the image (number of columns).
  • \(H\): represents the height of the image (number of rows).

The digital image is a function that associates each pair of coordinates \((x,y)\) with one or more values that describe the pixel’s appearance.

\[ f: \mathbb{E} \to \mathcal{V} \tag{1.2}\]

The set \(\mathcal{V}\) defines the possible values for the pixel (codomain), varying according to the image type, as demonstrated in Table 1.2.

Table 1.2: Main types of digital images and their respective sets of possible values for each pixel.
Image type \(\mathcal{V}\) (pixel values) Representation
Binary \(\{0, 1\}\) or \(\{0, 255\}\) ⬛◻️
Grayscale \(\{0, 1, \dots, 255\}\) ░▒▓█
Color (RGB) \(\{0, \dots, 255\}^3\) (ordered triples of values) 🟥🟩🟦

Practical example: A color image in the RGB model can be mathematically represented by a function that associates three intensity values with each pixel. Computationally, this representation corresponds to three overlapping matrices — the red (Red), green (Green), and blue (Blue) channels — in which each element stores the luminous intensity of the respective channel at a given position in the image.

To enable the practical experiments in PDI and VC, this book utilizes the Python scientific ecosystem, integrating libraries focused on matrix manipulation, image processing, and result visualization, as presented below.

1.7 Environment Setup

This material uses Python’s scientific ecosystem, with emphasis on NumPy (matrix computation), OpenCV (computer vision), and the morph.py library (ZAMPIROLLI, 2025), developed for didactic purposes and used throughout this book, as presented in Table 1.3.

The project is currently available in Python and Portuguese. Its organization, however, allows for expansion into other programming languages and languages.

The Programming Exercises (PEs) presented at the end of the chapters can be validated by the testsuite.py module, which allows running test cases in different languages, including Python, C, C++, Java, JavaScript, and R. Thus, the same test cases can be used to verify solutions developed in the notebooks and in Moodle/VPL.

Table 1.3: Main libraries and modules used throughout this book for matrix computation, DIP, CV, visualization, and validation of exercises.
Library Main function
numpy Matrix representation and numerical operations
opencv-python Reading, writing, and computer vision operations
matplotlib Visualization of images and graphs
morph.py Didactic abstraction of DIP operations
testsuite.py Execution and automatic validation of PEs

1.8 Versions of morph.py

The morph.py library has two public versions:

Version 1.1 was adapted to also meet the memory constraints of Moodle/VPL (Virtual Programming Laboratory). In version 1.0, some libraries, such as matplotlib, requests, and skimage, were loaded at the time of import morph. In environments with restricted resources, this loading could exceed the memory limit and produce errors such as Jail: out of memory, 128MiB.

In version 1.1, these imports were replaced by lazy loading: each library is imported only by the method that actually uses it. Thus, the import morph command maintains reduced initial loading, primarily using numpy and cv2, while additional resources are loaded on demand.

The configuration of the notebooks is centralized in the config.py file, available in the same repository. This file checks dependencies, seeks to ensure the use of OpenCV 5.0, and provides morph.py and, when necessary, testsuite.py. When the environment does not have the appropriate version of OpenCV, config.py can reinstall the required version and, if necessary, request a restart of the execution environment.

Thus, the notebooks use a single configuration routine, reducing code repetition and facilitating the reproduction of the computational environment used in this book.

import os, urllib.request

url = "https://raw.githubusercontent.com/fzampirolli/pdi-vc/master/morph/config.py"
if not os.path.exists("config.py"):
    urllib.request.urlretrieve(url, "config.py")

import config
config.setup(testsuite=True)
from morph import mm
from testsuite import TestSuite
✅ Environment ready. Morph: 1.1.9 | OpenCV: 5.0.0 | TestSuite: 1.1.2

1.9 Matrix Fundamentals — Caution with Reference Copying

Since a digital image can be represented by a matrix, it is important to understand how to create and manipulate matrices correctly. In Python, there is a common pitfall when using the * operator with lists:

WarningCaution with Reference Copying

When executing m = [[0]*2]*3, three independent rows are not created. Instead, three references to the same list are created. Consequently, modifying an element in one of the rows will also modify the corresponding element in the other rows.

To visualize this behavior, one can run the code in Python Tutor and compare it with the correct way of creating a matrix using lists: m = [[0]*2 for _ in range(3)].

In practice, for digital image processing (DIP), it is recommended to use NumPy, which provides efficient multidimensional data structures and vectorized operations suitable for image manipulation. The following code presents different ways of creating synthetic images, whose results are displayed in Figure 1.6.

import numpy as np

# Creating a black image (zeros) of 4, 6 pixels
img_preta = np.zeros((4, 6), dtype='uint8')
img_preta[0,0] = 255  # white pixel in the upper-left corner

# Creating a white image (255) of 4, 6 pixels
img_branca = np.ones((4, 6), dtype='uint8') * 255
img_branca[3,5] = 0  # black pixel in the lower-right corner

# Creating a random image for testing (noise)
img_random = mm.randomImage(4, 6, maxValue=255)

print("Random matrix generated:")
print(mm.drawImg(img_random))

mm.show(
    [img_preta, img_branca, img_random],
    titles=[
        "Predominantly black\n(with 1 white pixel at (0,0))",
        "Predominantly white\n(with 1 black pixel at (3,5))",
        "Random image\n(noise simulation)"
    ],
    cols=3,
    figsize=(9, 3),
    axis=True
)
Random matrix generated:
183   3 176 149  97 218
 75 246 144 187 197 190
140  68 216  79 184 110
 43  60   0 108 206 200

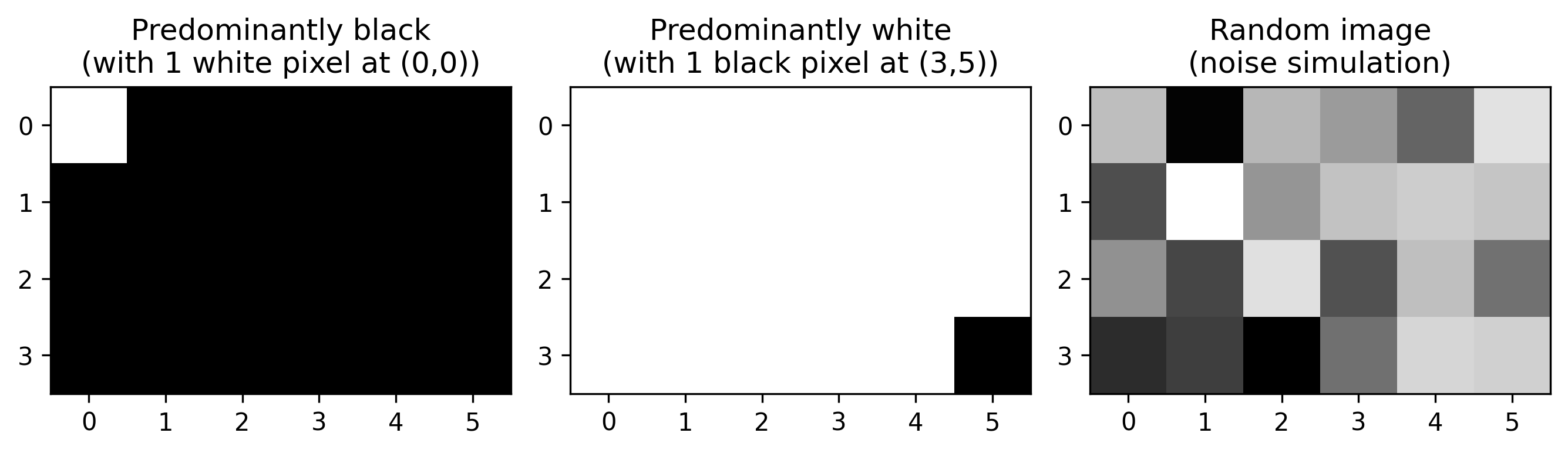

Figure 1.6: Examples of synthetic images represented as matrices.

1.10 Reading and Displaying Images

In libraries such as NumPy, OpenCV, and scikit-image, digital images are often computationally represented as NumPy arrays. In this way, matrix operations and linear algebra concepts can be applied directly to digital image processing (DIP).

One of the fundamental operations in digital image processing (PDI) is image reading.

In the morph.py library, the function mm.read() allows loading images from both local files and URLs, as illustrated in Figure 2.7..

import os
import numpy as np

url     = "https://upload.wikimedia.org/wikipedia/commons/8/87/Mandrillus_sphinx_339428057.jpg"
caminho = "imagens/mandrill.png"

if not os.path.exists(caminho):
    os.makedirs("imagens", exist_ok=True)
    img_obj = mm.read(url, pil=True)
    mm.write(img_obj, caminho)
else:
    img_obj = mm.read(caminho, pil=True)

img = np.array(img_obj)

print(f"Dimensions (H, W, Channels): {img.shape}")
print(f"Data type: {img.dtype}")

mm.show(img, title="Example: RGB capture")
Dimensions (H, W, Channels): (1365, 2048, 3)
Data type: uint8

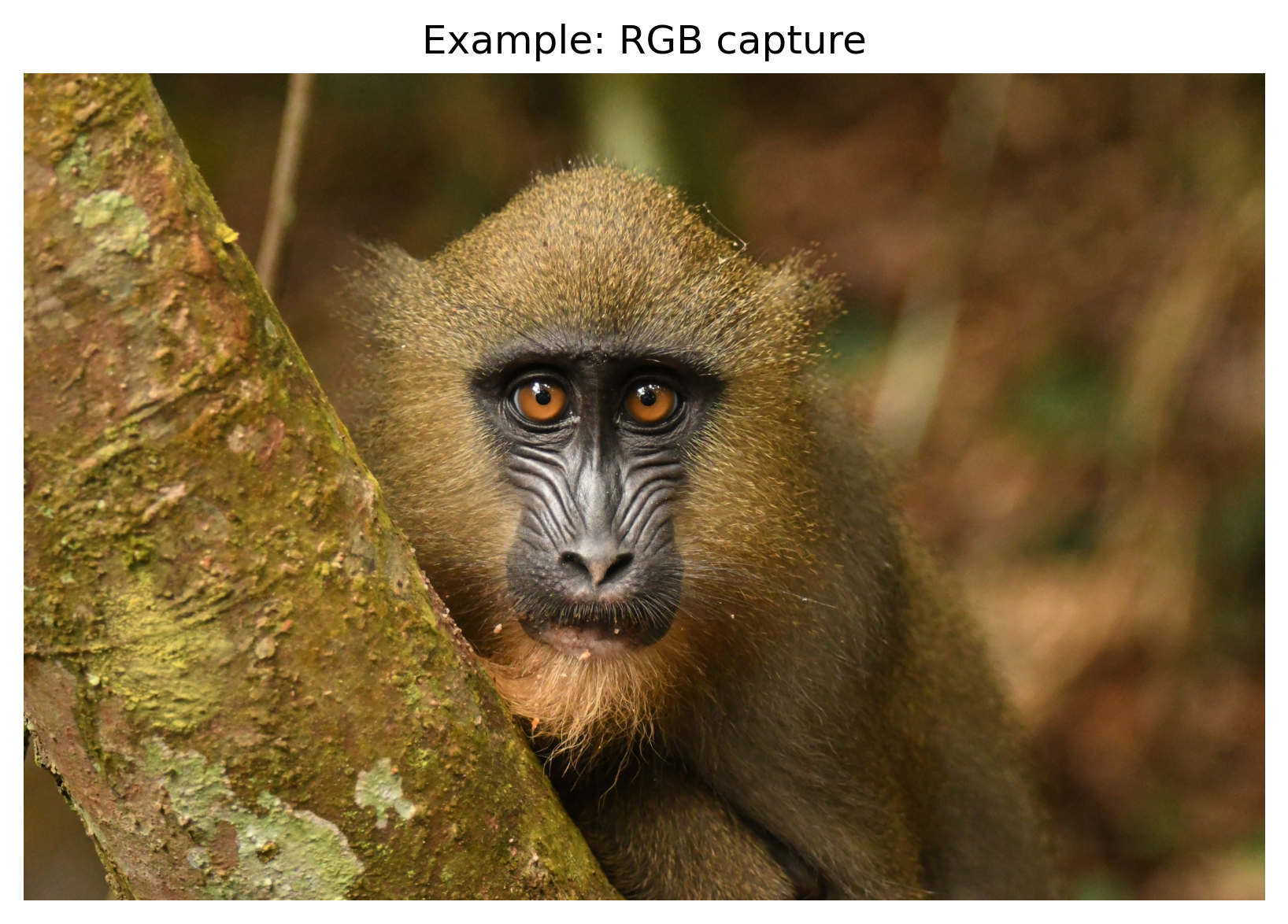

Figure 1.7: Mandrill (Mandrillus sphinx) in natural environment. Credit: Julien Renoult (CC BY 4.0).

1.10.1 Alternative: Downloading the Image for Local Storage

In environments where direct reading from URLs is unavailable—due to network restrictions, firewall policies, or lack of connectivity—an alternative is to download the image to the local file system beforehand. Once stored, the image can be loaded normally using the mm.read() function. In the example below, the file is saved locally with the name mandrill.png.

!wget -O mandrill.png \
    https://upload.wikimedia.org/wikipedia/commons/8/87/Mandrillus_sphinx_339428057.jpg
img = mm.read('mandrill.png')
mm.show(img, title="Example: RGB Capture (local file)")

1.10.1.1 Explanation

  • wget -O mandrill.png <URL> downloads the image and stores it locally with the specified name;
  • mm.read('mandrill.png') reads the file directly from the file system, without requiring additional HTTP requests;
  • this strategy reduces dependence on connectivity during experiments and avoids repeated downloads of the same image.

💡 Note

The ! prefix is used in notebook-based environments, such as Jupyter Notebook, JupyterLab, and Google Colab, to execute operating system commands directly in code cells. In conventional terminals, the command must be used without the ! prefix.

If the wget utility is not installed, the following alternative can be used:

!curl -o mandrill.png \
    https://upload.wikimedia.org/wikipedia/commons/8/87/Mandrillus_sphinx_339428057.jpg

1.11 Type Conversion and Thresholding

As we have seen, a color image in the RGB space is represented by the function:

\[ f: \mathbb{E} \to \{0,1,\dots,255\}^3 \]

That is, for each pixel \((x,y)\), we have three values \((R,G,B)\) that define its color.

Conversion to Grayscale

To convert an RGB image to grayscale, it is necessary to combine the three channels into a single intensity value \(g\), which represents the perceived brightness. Since the human eye is not equally sensitive to red, green, and blue, a weighted average is used. The ITU-R BT.601 standard ({ITU-R}, 2011) defines the following weights:

\[ g = 0.299\,R + 0.587\,G + 0.114\,B \tag{1.3}\]

After the calculation, the value \(g\) is rounded to the nearest integer and adjusted to the interval \([0, 255]\). The result is a new image, now in grayscale, represented by:

\[ f_{\text{gray}}: \mathbb{E} \to \{0,1,\dots,255\} \]

Thresholding

From the grayscale image \(f_{\text{gray}}(x,y)\), a fundamental operation is thresholding, which produces a binary image (only black and white). To do this, a cutoff value \(T\) is chosen (usually in the interval \([0,255]\)) and defined as:

\[ f_{\text{bin}}(x,y) = \begin{cases} 255 & \text{if } f_{\text{gray}}(x,y) > T \\[4pt] 0 & \text{otherwise} \end{cases} \tag{1.4}\]

Example: With \(T = 128\), pixels with intensity above 128 become white (255); the remaining ones become black (0).

Thresholding is widely used to segment objects from the background, extract edges, or create binary masks for further processing.

Note: The value 255 represents maximum white in 8-bit images, while 0 represents absolute black.

Practical example of conversion and thresholding

Figure 1.8 illustrates the main steps to transform a color image into grayscale and then convert it into a binary image by thresholding. The following code implements these steps:

# 1. Convert to Grayscale
img_gray = mm.gray(img)

# 2. Apply threshold (Pixels > 128 become 255, others 0)
limiar = 128
img_binaria = mm.threshold(img_gray, limiar)

# Using the new function
mm.show(
    [img, img_gray, img_binaria],
    titles=["Original", "Grayscale", f"Binary (T={limiar})"],
    cols=3
)

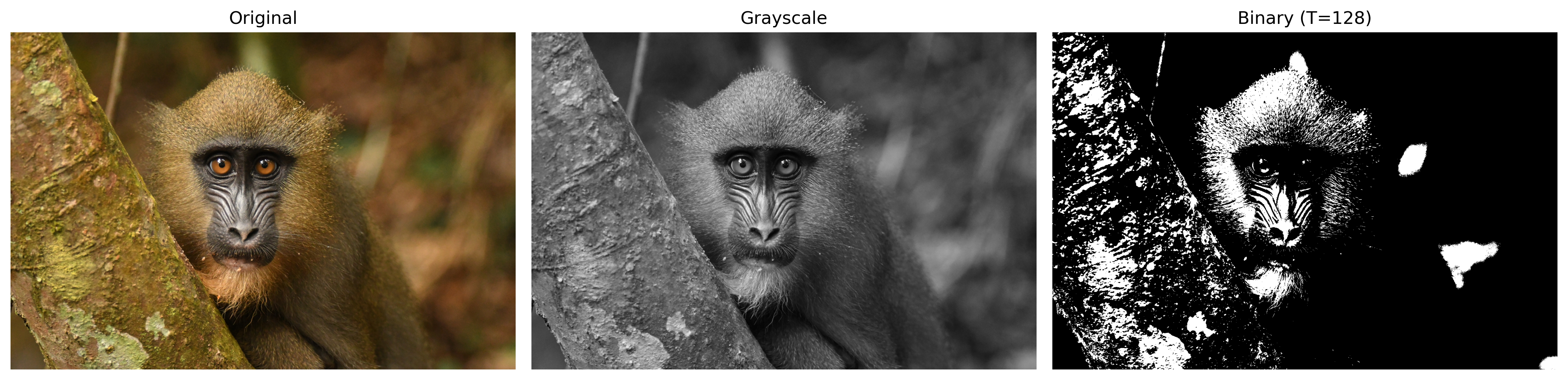

Figure 1.8: Basic image processing: (a) original image, (b) grayscale image, (c) image binarized by threshold (T=128).

1.12 Otsu’s Method Thresholding

As presented in Equation 1.4, thresholding converts a grayscale image into a binary one using a cutoff value \(T\). So far, we have manually set \(T = 128\).

img_bin_fixo = mm.threshold(img_gray, T=128)

However, manually choosing \(T\) is not always trivial. The mm library offers an automatic alternative: when the limiar parameter is not provided, the mm.threshold(img_gray) function computes the value of \(T\) using Otsu’s method (OTSU, 1979). This method, which will be detailed in future chapters, maximizes the inter-class variance of the histogram (frequency of each gray level), automatically separating object and background pixels.

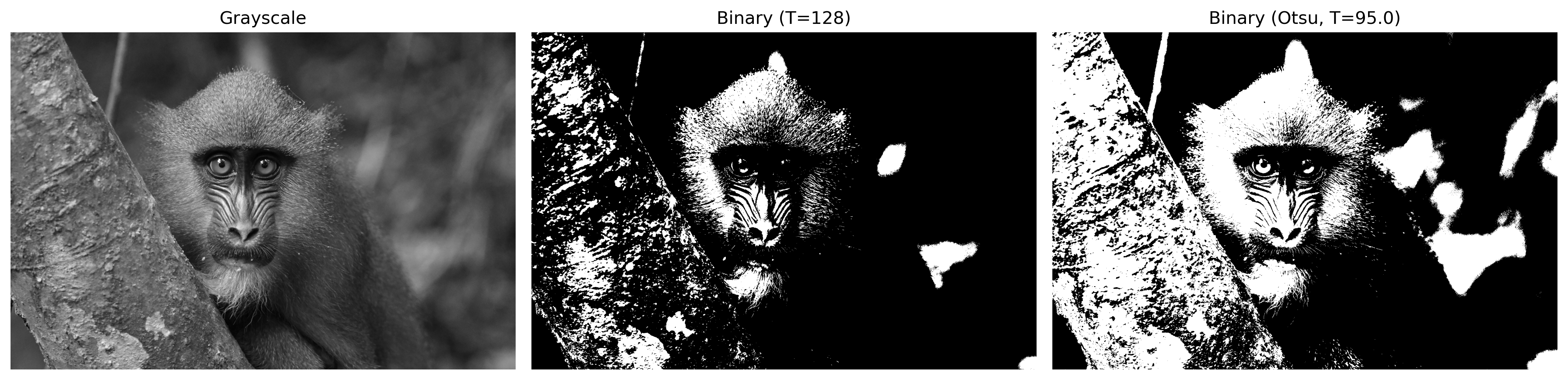

The code below compares manual thresholding (\(T=128\)) with automatic thresholding (Otsu), also showing the computed value of \(T\):

import cv2
# Thresholding with fixed T (manual)
T_fixo = 128
img_bin_fixo = mm.threshold(img_gray, T_fixo)

# Thresholding by Otsu's method (automatic T)
T_otsu, img_bin_otsu = cv2.threshold(img_gray, 0, 255,
                                      cv2.THRESH_BINARY + cv2.THRESH_OTSU)
print(f'Threshold calculated by Otsu: T = {T_otsu}')
# or simply:
# img_bin_otsu = mm.threshold(img_gray)

# Side-by-side display
mm.show(
    [img_gray, img_bin_fixo, img_bin_otsu],
    titles=["Grayscale", f"Binary (T={T_fixo})", f"Binary (Otsu, T={T_otsu})"],
    cols=3
)
Threshold calculated by Otsu: T = 95.0
Figure 1.9: Comparison between manual thresholding (T=128) and automatic (Otsu) on the grayscale image.

The Figure 1.9 shows that the threshold obtained by Otsu automatically adapts to the image, resulting in more efficient binarization than a fixed value, especially when the object and background intensities are well separated in the histogram. This technique is widely used in CV systems for document binarization, object detection, and image preprocessing.

💡 Simplicity of the morph.py library

While OpenCV requires the full call:

T_otsu, img_bin = cv2.threshold(img_gray, 0, 255,
                                cv2.THRESH_BINARY + cv2.THRESH_OTSU)

the mm library abstracts all this complexity: simply call mm.threshold(img_gray). The Otsu threshold is calculated automatically and the binary image is returned directly. This approach allows one to focus on the concept rather than implementation details.

1.13 Accessing Pixels

In Python with NumPy, an image is structured as a multidimensional array. Accessing a specific pixel uses the matrix convention of row (Y axis) and column (X axis): img[row, column].

The code in Figure 1.10 demonstrates how to extract these values in color (RGB) and grayscale images, as well as how to isolate the immediate neighborhood of the point of interest.

import matplotlib.pyplot as plt

# 1. Definition of the target pixel coordinates
r, c = 600, 800

# 2. Direct access to pixel values
pixel_cinza = img_gray[r, c]
pixel_rgb   = img[r, c]

print(f"📌 VALUES AT THE TARGET PIXEL ({r}, {c}):")
print(f"   • Grayscale (Scalar)       : {pixel_cinza}")
print(f"   • Colored (RGB Vector)     : R={pixel_rgb[0]}, G={pixel_rgb[1]}, B={pixel_rgb[2]}")
print("-" * 50)

# 3. Didactic display of the 3x3 neighborhood around the pixel (r, c)
# Crops from row r-1 to r+1, and from column c-1 to c+1
vizinhanca_gray = img_gray[r-1:r+2, c-1:c+2]

print(f"🔍 3x3 NEIGHBORHOOD MATRIX IN GRAYSCALE:")
print(f"   (The central target pixel is highlighted with brackets)\n")

# Formatted printing to highlight the central pixel
for i, linha in enumerate(vizinhanca_gray):
    linhas_str = []
    for j, valor in enumerate(linha):
        if i == 1 and j == 1:
            linhas_str.append(f"[{valor:3d}]") # Highlights the center (100, 100)
        else:
            linhas_str.append(f" {valor:3d} ")
    print("   " + " ".join(linhas_str))

# 4. Visual demonstration using mm.show (optional, but excellent for the book)
# Shows the entire image with a point marking the region
plt.figure(figsize=(5, 5))
plt.imshow(img)
plt.plot(c, r, 'ro', markersize=8, label=f'Pixel ({r},{c})') # Plots (x, y) -> (c, r)
plt.title(f"Localização do Pixel ({r}, {c}) na Imagem")
plt.legend()
plt.axis('on') # Keeps the axes so the student can see the coordinates 100, 100
plt.show()
📌 VALUES AT THE TARGET PIXEL (600, 800):
   • Grayscale (Scalar)       : 81
   • Colored (RGB Vector)     : R=92, G=78, B=67
--------------------------------------------------
🔍 3x3 NEIGHBORHOOD MATRIX IN GRAYSCALE:
   (The central target pixel is highlighted with brackets)

     83    96   105
     85  [ 81]   96
     83    77    84

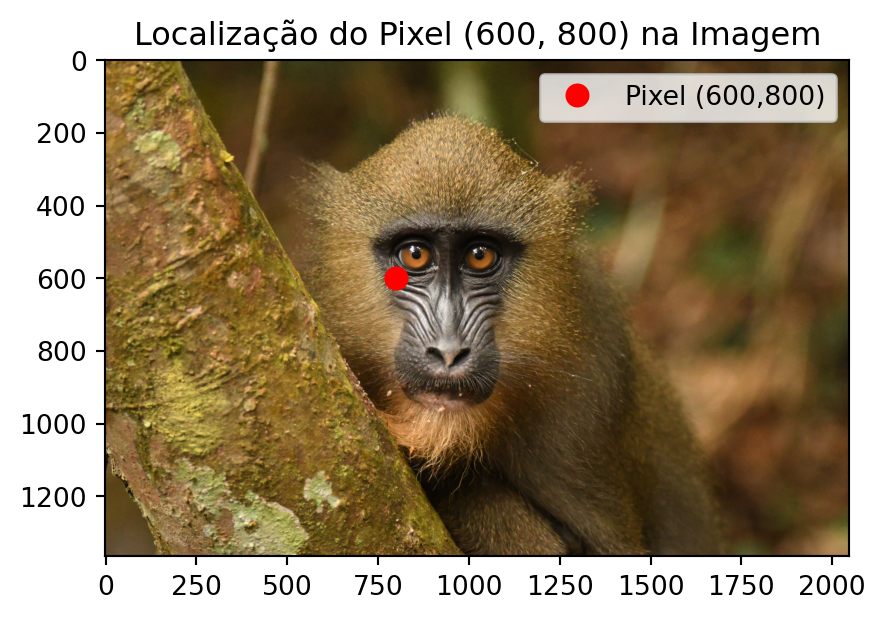

Figure 1.10: Accessing a specific pixel (r, c) and the representation of its neighborhood in the image.

Line-by-line explanation:

  1. img_gray[r, c] — Returns a single integer value (scalar) between 0 and 255, representing the brightness intensity of the gray pixel.
  2. img[r, c] — Returns a vector with three values [R, G, B], corresponding to the intensities of the Red, Green, and Blue channels.
  3. img_gray[r-1:r+2, c-1:c+2] — Performs slicing to extract the \(3\times 3\) submatrix around the pixel. This operation is the basis for implementing spatial filters and convolutions.
  4. The subsequent for loop merely formats this submatrix in the console, displaying the central pixel within square brackets [ ] for didactic purposes.
  5. The function plt.plot(c, r, 'ro') plots a red point over the image to correlate the numerical coordinate with its visual position. Note that Matplotlib uses the standard screen order (X, Y), inverting it to (c, r).

Since indexing in Python is zero-based, the top-left corner of the image is the coordinate (0,0). Always keep this rule in mind: the first dimension of the matrix controls the height (rows/Y) and the second controls the width (columns/X).

1.14 Summary

In this chapter, the fundamentals of digital image representation were presented: the definition of pixel, the structuring of images into matrices, and the impact of sampling and quantization on final quality:

  • Digital image = function \(f(x,y)\) that maps coordinates to intensities (scalar or vectorial).

  • Domain: finite set \(\mathbb{E} = \{(x,y) \in \mathbb{Z}^2 \mid 0 \le x < L,\; 0 \le y < H\}\).

  • Main types: binary (\(\mathcal{V} = \{0, 255\}\)), grayscale (\(\mathcal{V} = [0,255]\)), and RGB (\(\mathcal{V} = [0,255]^3\)).

  • Thresholding converts grayscale into binary; Otsu’s method automatically determines the cutoff value by maximizing between-class variance.

  • The morph.py library (or mm) provides educational functions for basic digital image processing (DIP) operations, such as mm.gray(), mm.threshold(), and mm.show_multiple().

  • NumPy Trap: never use [[0]*n]*m to create matrices — always use np.zeros() or np.ones().

  • Pixel access via img[row, column], with zero-based indexing.

Chapter 2 will cover histograms and contrast equalization.

1.15 🤖 Using Gemini Notebook as a Complementary Tutor

In this edition, in addition to the interactive notebooks on Google Colab, Gemini Notebook is available as a complementary study tool. The platform uses exclusively the documents provided by the author as its knowledge base, ensuring responses that are consistent with the book’s content.

Important🎓 Study with the Intelligent Tutor

Access the chapter’s environment via the link below and especially explore the Study Guide and Conversation options to deepen your understanding.

🚀 ACCESS Gemini Notebook: CHAPTER 01

🌐 Language and Programming Language

The project for this chapter in Gemini Notebook was built using only the Portuguese text and the Python code examples. If you are studying from the English or French edition, or following the C++ track, the tutor’s responses may not exactly correspond to the version you are reading.

⚠️ Notice about AI-Generated Content

AI is a powerful study ally, but the generated content may contain errors or inaccuracies. Always consult books, scientific articles, and other reliable academic sources to validate the information. Whenever possible, run the practical examples provided in this chapter to verify the results.

Available Platform Features

The Gemini Notebook offers an advanced suite of AI-based tools to transform the static content of the book into a dynamic, multimedia learning experience. The platform employs RAG (Retrieval-Augmented Generation) techniques, grounded in the work of Lewis (2020), to base responses strictly on the provided documents and minimize the occurrence of hallucinations.

The main features include:

  • Multimodal Summaries (Audio and Video): Generation of natural conversations between experts in the Audio Summary format (podcast-style) and Video Summary, discussing the central themes of the chapter, such as the differences between PDI and VC, or the interpretation of transformations like thresholding and Otsu’s method.
  • Structure Visualization (Mind Map and Infographic): Automatic creation of diagrams that visually connect concepts, for example, the processing flow from digital image capture, through conversion to grayscale, thresholding, and binary segmentation.
  • Assessment Tools (Quizzes and Flashcards): Generation of multiple-choice Quizzes and Flashcards for knowledge reinforcement, based on the authorial text (e.g., questions about the RGB-to-grayscale conversion formula or about the operation of global and Otsu thresholds).
  • Presentation Support (Slides and Reports): Assistance in structuring Slide Presentations and in writing technical Reports, facilitating the communication of experimental results with images.
  • Data Analysis (Data Table): Organization of data extracted from the text into structured tables, aiding the understanding of practical examples, such as the comparison between different threshold values.
  • Contextual Chat: Enables direct questioning about the code and theory, such as: “How can I implement RGB-to-grayscale conversion using the weights of the ITU-R BT.601 standard?” or “What happens to the binary image if I choose a threshold T=200 instead of T=128?”.

1.16 Exercise List

  1. (15%) In your own words, define digital image and pixel. Give a concrete example of how a color (RGB) image is represented in matrix form in the computer.

  2. (15%) Explain the differences between a binary image, grayscale (8‑bit), and RGB color image, indicating the range of possible values for each pixel in each type.

  3. (20%) Considering the RGB → grayscale conversion formula from the ITU‑R BT.601 standard: \[g = 0.299\,R + 0.587\,G + 0.114\,B\] Compute the grayscale pixel value for \((R,G,B) = (80, 180, 30)\). Round to the nearest integer.

  4. (20%) What is thresholding? Explain the difference between choosing a fixed threshold \(T\) (e.g., \(T=128\)) and using the Otsu method for automatic threshold determination. In a few words, how does the Otsu method select the threshold?

  5. (15%) In the context of the didactic library mm discussed in the chapter, answer:

      1. (7.5%) How do you access the pixel value at position (row=50, column=60) of a grayscale image img_gray?
      1. (7.5%) What is the advantage of using mm.threshold(img_gray) without passing the threshold? Compare it with the equivalent call in OpenCV.
  6. (15%) What does the img.shape property return for a NumPy image in RGB format? Provide a concrete example with a 640×480 pixel image.

1.17 Chapter References

The theoretical foundation of this chapter comprises the following works on DIP and CV:

  • Gonzalez (2018) for the fundamentals of Digital Image Processing (DIP).
  • Singh (2019) for the practical implementation of image processing and analysis methods.
  • Szeliski (2022) for the study of CV and fundamental algorithms.
  • Bradski (2008) for the application of the OpenCV library in a Python environment.
  • Lewis (2020}) for the concept of retrieval-augmented generation (RAG), used to support the processing of information in this material.

This appears to be a Markdown document containing only image links with badges. As there is no Portuguese prose text to translate, the content remains unchanged, preserving all Markdown structure and URLs exactly as provided.

1.18 💻 Practical Part with Programming Exercises

1.18.1 🎯 Objective of this Notebook

The Programming Exercises (PEs) presented below can also be submitted in Moodle activities (VPL activities) that provide automatic feedback.

This notebook was developed to overcome limitations of Moodle usage. With it, you should:

  1. Develop: Write and edit your solution directly in the Colab environment.
  2. Validate: Test your code locally using the same test cases as those in Moodle.
  3. Organize: Save your codes from the VPL activities securely.
  4. Evaluate: When connected to Moodle, simply copy your solution and click on Evaluate in Moodle (if you are on the UFABC network) to record your official grade.

1.18.2 ⚙️ Step-by-Step Instructions

In an execution environment (such as VSCode, Jupyter, or Colab), follow the order below to set up the environment and validate your exercises:

1.18.2.1 Environment Preparation

Run the code cell below to download morph.py and testsuite.py from the course repository — only if they do not already exist in the local directory. With both files in ./, the notebook and the TestSuite subprocesses find the module without any extra path configurations.

Note: The testsuite.py script will automatically look for test cases in all/{cap}/cases on GitHub.

1.18.2.2 Writing the Code

Save your solution in a code cell using the magic command %%writefile. The file name must follow the pattern EPX_Y.*, where X is the chapter, Y is the exercise, and * is the language extension.

Example: %%writefile EP01_01.py

1.18.2.3 Download

Download morph.py and testsuite.py by running the cell below:

import os, urllib.request

url = "https://raw.githubusercontent.com/fzampirolli/pdi-vc/master/morph/config.py"
if not os.path.exists("config.py"):
    urllib.request.urlretrieve(url, "config.py")

import config
config.setup(testsuite=True)
from morph import mm
from testsuite import TestSuite
✅ Environment ready. Morph: 1.1.9 | OpenCV: 5.0.0 | TestSuite: 1.1.2

1.18.2.4 Running the Tests

After saving the file with your solution, run the command below (in a new cell) to evaluate the automated tests:

TestSuite("EP01_01.extensão").run()

Replace the extension according to the language used:

Language Extension
Python .py
Java .java
C .c
C++ .cpp
JavaScript .js
R .r

How it works: The TestSuite downloads the test cases from GitHub, runs your program with each input, and compares the output with the expected one – automatically calculating your grade.

To test Python code directly, without saving a file, use run_code(codigo) passing the code as a string in a variable codigo:

codigo = """
from morph import mm
# ... your code here ...
"""
TestSuite("EP04_01").run_code(codigo)

1.18.3 ⚠️ Important: Rules and Best Practices

1.18.3.1 🔹 About Data Input

Your program must read from standard input (keyboard).

  • Python: Use input().
  • Other languages: Use the equivalent standard reading command (cin, Scanner, etc.).

1.18.3.2 🔹 AI Configuration in Colab

For better learning, it is recommended to disable AI code autocomplete, as it will not be available during evaluations. For example, in the Chrome browser:

  • Go to: Tools > Settings > Generative AI
  • Uncheck: Enable code generation

1.18.3.3 🔹 Academic Integrity (Plagiarism)

This local testing feature applies to EPs without variations. However:

  • Individuality: Each student must develop their own solution.
  • Similarity Detection: The instructor uses tools that detect copies, even with changes to variable names or whitespace.

1.18.4 EP01_01 📏 Three distance metrics in DIP

In this activity, you must write a program that computes the three classical distances in DIP: Euclidean (L2), City‑Block (L1), and Chessboard (L∞).

  • Read 4 real numbers representing the coordinates: \(A_x, A_y, B_x, B_y\).
  • Compute the three distances using the formulas:

\[d_{\text{Euclidean}} = \sqrt{(B_x - A_x)^2 + (B_y - A_y)^2}\]

\[d_{\text{City-block}} = |B_x - A_x| + |B_y - A_y|\]

\[d_{\text{Chessboard}} = \max\big(|B_x - A_x|,\; |B_y - A_y|\big)\]

  • Print the three results, each on a separate line, formatted with two decimal places, in the following order: Euclidean, City‑block, Chessboard.

📌 Important:

  • Use the standard mathematical functions of your language: math.sqrt, abs (or fabs), and max.
  • The output must contain only the numbers (one per line), without additional text.
  • See an interactive simulator for this problem at the Figure 1.11 (graph with draggable points and visualization of the three metrics).

1.18.4.1 🖼️ Why does this matter? – Computational cost

In a 1000×1000 pixel image (1 million pixels), computing the distance from each pixel to a reference point requires 1 million operations. The choice of metric affects performance:

Metric Operations per pixel Relative cost (1M pixels) When to use
Euclidean (L2) 2 subtractions, 2 multiplications, 1 addition, 1 sqrt 🔴 Most expensive – sqrt is costly “Real” distance in continuous space
City‑block (L1) 2 subtractions, 2 abs, 1 addition 🟡 Moderate – no square root Grids, robotics, binary images
Chessboard (L∞) 2 subtractions, 2 abs, 1 max 🟢 Most efficient Piece movements, morphology

The sqrt function is computationally more expensive than operations such as addition, subtraction, multiplication, and absolute value. On modern CPUs, the difference can be small (about 1.5× to 3×), but in embedded systems or in loops with millions of iterations, any gain matters. Therefore, when the goal is only to compare distances (e.g., finding the nearest point), use the squared Euclidean distance.

1.18.4.2 📋 Task (specification for VPL)

Input:
A single line with four real numbers: Ax Ay Bx By

Output:
Three lines, each with a real number with two decimal places (Euclidean, City‑block, Chessboard).

1.18.4.3 📌 Examples

Input Output Observation
0
0
3
4
5.00
7.00
4.00
3‑4‑5 triangle
0
0
1
1
1.41
2.00
1.00
Unit diagonal

Example of testing sqrt in Python, with timeit isolating each operation:

import math
import timeit

N = 50_000_000

def apenas_soma():
    a, b = 3.0, 4.0
    return a + b

def soma_e_sqrt():
    a, b = 3.0, 4.0
    return math.sqrt(a*a + b*b)

t_soma = timeit.timeit(apenas_soma, number=N)
t_sqrt = timeit.timeit(soma_e_sqrt, number=N)

print(f"Simple sum         : {t_soma:.3f} s")
print(f"Sum + sqrt         : {t_sqrt:.3f} s")
print(f"Ratio (sqrt/sum)   : {t_sqrt/t_soma:.2f}x")
Simple sum         : 2.613 s
Sum + sqrt         : 5.177 s
Ratio (sqrt/sum)   : 1.98x
🎮 EP01_01 Simulator: Distance Metrics in Discrete Space Euclidean vs City-block vs Chessboard

Click and drag the points A or B on the Cartesian plane or adjust their coordinates below to compare the three distance metrics in real time.

📐 EUCLIDEAN (L2)
5.00
√(Δx² + Δy²)
🧱 CITY-BLOCK (L1)
7.00
|Δx| + |Δy|
🏁 CHESSBOARD (L∞)
4.00
max(|Δx|, |Δy|)
👆 Drag points A (Purple) or B (Orange) on the grid.
Point A
Point B
Geometric Legend: Dashed line (Euclidean), orthogonal L-shaped path (City-block) and highlight of the maximum dimension (Chessboard).
Euclidean City-block Chessboard (Max)
Figure 1.11: EP01_01 Simulator: Euclidean, City-block, and Chessboard Distances

1.18.4.4 🐍 Python

Simply create a regular code cell and insert the Python code. Input can be simulated using input(), which works as usual.

Example cell:

%%writefile EP01_01.py
# Python code
x1,y1,x2,y2 = int(input()), int(input()), int(input()), int(input())
# Calculation of differences
dx = abs(x2 - x1)
dy = abs(y2 - y1)

# 1. Euclidean distance (L2)
dist_euclidiana = (dx**2 + dy**2)**0.5

# 2. City-block / Manhattan distance (L1)
dist_city_block = dx + dy

# 3. Chessboard / Chebyshev distance (Linf)
dist_chessboard = max(dx, dy)

# Output formatted according to the test cases
print(f"{dist_euclidiana:.2f}")
print(f"{dist_city_block:.2f}")
print(f"{dist_chessboard:.2f}")
Overwriting EP01_01.py
# Expects you to type 4 integers when running this cell.
# In Jupyter or Google Colab, the %run -i magic allows the script to read from the keyboard.
# In a regular terminal, you would use: python3 EP01_01.py (without the '!' and '%run').

# %run -i EP01_01.py
# Sends 4 integers as standard input (stdin) to the script EP01_01.py using a pipe
!echo -e "0\n0\n4\n4" | python3 EP01_01.py
5.66
8.00
4.00
TestSuite("EP01_01.py").run()
✔️ EP01_01.cases already exists in casos/
📋 5 case(s) loaded from casos/EP01_01.cases

🔍 Testing Python: EP01_01.py
✔️ Case 1: OK
✔️ Case 2: OK
✔️ Case 3: OK
✔️ Case 4: OK
✔️ Case 5: OK

📊 Result: 5/5 (100.0%)
🎉 Congratulations! All tests passed.

1.18.4.5 ☕ Java

To run Java in Colab, you need to use a cell with the %%writefile prefix to save the code to a file, compile, and run it.

%%writefile EP01_01.java
import java.util.Scanner;

class EP01_01 {
    public static void main(String[] args) {
        Scanner s = new Scanner(System.in);

        double x1 = s.nextDouble(), y1 = s.nextDouble();
        double x2 = s.nextDouble(), y2 = s.nextDouble();

        double dx = Math.abs(x2 - x1);
        double dy = Math.abs(y2 - y1);

        System.out.printf("%.2f\n", Math.sqrt(dx*dx + dy*dy));
        System.out.printf("%.2f\n", dx + dy);
        System.out.printf("%.2f\n", Math.max(dx, dy));
    }
}
Overwriting EP01_01.java
!javac EP01_01.java
!echo -e "0\n0\n4\n4" | java EP01_01
5,66
8,00
4,00
TestSuite("EP01_01.java").run()
✔️ EP01_01.cases already exists in casos/
📋 5 case(s) loaded from casos/EP01_01.cases

🔍 Testing Java: EP01_01.java
✔️ Case 1: OK
✔️ Case 2: OK
✔️ Case 3: OK
✔️ Case 4: OK
✔️ Case 5: OK

📊 Result: 5/5 (100.0%)
🎉 Congratulations! All tests passed.

1.18.4.6 💻 C

Similarly, use %%writefile to save the code, then compile and run. For C, we use the GCC compiler.

# Install GCC compiler and build tools
# build-essential includes gcc, g++, make, etc.
import platform, shutil, subprocess

def instalar_gcc():
    if shutil.which("gcc"):
        print("✅ GCC already available."); return
    if platform.system() != "Linux":
        print("⚠️ Mac: xcode-select --install | Windows: WSL or MinGW"); return
    try: import google.colab; cmd = ["apt-get", "install", "-y", "build-essential"]
    except ImportError:       cmd = ["sudo", "apt-get", "install", "-y", "build-essential"]
    subprocess.run(cmd, check=True)
    print("✅ build-essential installed!")

instalar_gcc()
✅ GCC already available.
%%writefile EP01_01.c
#include <stdio.h>
#include <math.h>

int main() {
    double x1, y1, x2, y2;
    if (scanf("%lf %lf %lf %lf", &x1, &y1, &x2, &y2) != 4) return 0;

    double dx = fabs(x2 - x1);
    double dy = fabs(y2 - y1);

    // Euclidiana, City-block e Chessboard
    printf("%.2f\n", sqrt(dx * dx + dy * dy));
    printf("%.2f\n", dx + dy);
    printf("%.2f\n", fmax(dx, dy));

    return 0;
}
Overwriting EP01_01.c
# Compiles the .c file generating the executable EP01_01
# -lm is used to link the math library (math.h) if necessary

!gcc EP01_01.c -o EP01_01 -lm
!echo -e "0\n0\n4\n4" | ./EP01_01
5.66
8.00
4.00
TestSuite("EP01_01.c").run()
✔️ EP01_01.cases already exists in casos/
📋 5 case(s) loaded from casos/EP01_01.cases

🔍 Testing C: EP01_01.c
✔️ Case 1: OK
✔️ Case 2: OK
✔️ Case 3: OK
✔️ Case 4: OK
✔️ Case 5: OK

📊 Result: 5/5 (100.0%)
🎉 Congratulations! All tests passed.

1.18.4.7 💻 C++

Similar to Java, use %%writefile to save the code, then compile and run it. Remember that, in Colab, you also need to install the following:

# Install the G++ compiler for C++
# build-essential includes g++, make, etc.
import platform, shutil, subprocess

def instalar_gpp():
    if shutil.which("g++"):
        print("✅ G++ already available."); return
    if platform.system() != "Linux":
        if platform.system() == "Darwin":
            print("⚠️ Mac: xcode-select --install")
        else:
            print("⚠️ Windows: use WSL or MinGW (https://www.mingw-w64.org)")
        return
    try: import google.colab; cmd = ["apt-get", "install", "-y", "build-essential"]
    except ImportError:       cmd = ["sudo", "apt-get", "install", "-y", "build-essential"]
    subprocess.run(cmd, check=True)
    print("✅ C++ compiler ready.")

instalar_gpp()
✅ G++ already available.
%%writefile EP01_01.cpp
#include <iostream>
#include <iomanip>
#include <cmath>
#include <algorithm>

int main() {
    double x1, y1, x2, y2;
    if (!(std::cin >> x1 >> y1 >> x2 >> y2)) return 0;

    double dx = std::abs(x2 - x1);
    double dy = std::abs(y2 - y1);

    std::cout << std::fixed << std::setprecision(2);

    // Euclidiana, City-block e Chessboard
    std::cout << std::sqrt(dx*dx + dy*dy) << std::endl;
    std::cout << (dx + dy) << std::endl;
    std::cout << std::max(dx, dy) << std::endl;

    return 0;
}
Overwriting EP01_01.cpp
!g++ EP01_01.cpp -o EP01_01
!echo -e "0\n0\n4\n4" | ./EP01_01
5.66
8.00
4.00
TestSuite("EP01_01.cpp").run()
✔️ EP01_01.cases already exists in casos/
📋 5 case(s) loaded from casos/EP01_01.cases

🔍 Testing C++: EP01_01.cpp
✔️ Case 1: OK
✔️ Case 2: OK
✔️ Case 3: OK
✔️ Case 4: OK
✔️ Case 5: OK

📊 Result: 5/5 (100.0%)
🎉 Congratulations! All tests passed.

1.18.4.8 🌐 JavaScript (Node.js)

For JavaScript, use %%writefile to create the file and run it with Node:

%%writefile EP01_01.js
function escreva(s) { try { document.write(s + "<br>"); } catch(e) { console.log(s); } }

process.stdin.once('data', data => {
  const valores = data.toString().trim().split(/\s+/);
  const x1 = parseFloat(valores[0]);
  const y1 = parseFloat(valores[1]);
  const x2 = parseFloat(valores[2]);
  const y2 = parseFloat(valores[3]);

  const dx = Math.abs(x2 - x1);
  const dy = Math.abs(y2 - y1);

  // Euclidiana, City-block e Chessboard
  escreva(Math.sqrt(dx * dx + dy * dy).toFixed(2));
  escreva((dx + dy).toFixed(2));
  escreva(Math.max(dx, dy).toFixed(2));
});
Overwriting EP01_01.js
TestSuite("EP01_01.js").run()
✔️ EP01_01.cases already exists in casos/
📋 5 case(s) loaded from casos/EP01_01.cases

🔍 Testing Node.js: EP01_01.js
✔️ Case 1: OK
✔️ Case 2: OK
✔️ Case 3: OK
✔️ Case 4: OK
✔️ Case 5: OK

📊 Result: 5/5 (100.0%)
🎉 Congratulations! All tests passed.

1.18.4.9 📊 R

In Colab, R code can be run directly using the %%R magic command.
The program should read four numbers (x1, y1, x2, y2) and display the Euclidean distance with two decimal places.

Example cell:

%%R
dados <- scan(file = "stdin", n = 4, quiet = TRUE)
x1 <- dados[1]; y1 <- dados[2]; x2 <- dados[3]; y2 <- dados[4]
dist <- sqrt((x2 - x1)^2 + (y2 - y1)^2)
cat(sprintf("%.2f", dist))
# Install R and Rscript
# r-base installs the complete R environment, including Rscript
import platform, shutil, subprocess

def instalar_r():
    if shutil.which("R"):
        print("✅ R is already available."); return
    if platform.system() != "Linux":
        if platform.system() == "Darwin":
            print("⚠️ Mac: https://cran.r-project.org/bin/macosx/")
        else:
            print("⚠️ Windows: https://cran.r-project.org/bin/windows/base/")
        return
    try: import google.colab; cmd = ["apt-get", "install", "-y", "r-base"]
    except ImportError:       cmd = ["sudo", "apt-get", "install", "-y", "r-base"]
    subprocess.run(cmd, check=True)
    print("✅ R environment ready.")

instalar_r()
✅ R is already available.

To test in the same way as in the previous examples, standard input (stdin) should be used in the terminal or the code should be adapted as follows:

%%writefile EP01_01.r
dados <- scan(file = "stdin", n = 4, quiet = TRUE)
dx <- abs(dados[3] - dados[1])
dy <- abs(dados[4] - dados[2])

# Outputs: Euclidean, City-block and Chessboard
cat(sprintf("%.2f\n%.2f\n%.2f\n",
    sqrt(dx^2 + dy^2),
    dx + dy,
    max(dx, dy)))
Overwriting EP01_01.r
!echo -e "0\n0\n4\n4" | Rscript EP01_01.r
5.66
8.00
4.00
TestSuite("EP01_01.r").run()
✔️ EP01_01.cases already exists in casos/
📋 5 case(s) loaded from casos/EP01_01.cases

🔍 Testing R: EP01_01.r
✔️ Case 1: OK
✔️ Case 2: OK
✔️ Case 3: OK
✔️ Case 4: OK
✔️ Case 5: OK

📊 Result: 5/5 (100.0%)
🎉 Congratulations! All tests passed.

1.18.5 EP01_02 📊 Predictive Performance — ML Metrics in CV

In this activity, you will dive into the world of Machine Learning. Your goal is to evaluate the performance of a binary classifier by calculating metrics from a Confusion Matrix.

1.18.5.1 🧠 Why does the right metric matter?

Imagine a R$ 1.00 coin detector. The impact of the error defines the priority metric:

Metric Practical Example Importance in IP/CV
Accuracy Grain Counting Useful when classes are balanced (e.g., half of the grains defective, half healthy).
Precision Security/Biometrics Crucial to avoid False Positives (e.g., not allowing an impostor to access a system due to recognition errors).
Sensitivity Health (Tumors) Crucial to avoid False Negatives (e.g., not letting a tumor go unnoticed in an X-ray examination).
F1-score Banknotes Ideal for a balance between not rejecting genuine notes and not accepting counterfeit ones.

1.18.5.2 📊 The Confusion Matrix

Predicted Positive Predicted Negative
Actual Positive TP (True Positive) FN (False Negative)
Actual Negative FP (False Positive) TN (True Negative)

Task:

  1. Read 4 integer values in the order: TP, FN, FP, TN.
  2. Calculate the metrics using the formulas:

\[\text{Accuracy} = \frac{TP + TN}{TP + TN + FP + FN}\]

\[\text{Precision} = \frac{TP}{TP + FP}\]

\[\text{Sensitivity (Recall)} = \frac{TP}{TP + FN}\]

\[\text{F1-score} = \frac{2 \times \text{Precision} \times \text{Sensitivity}}{\text{Precision} + \text{Sensitivity}}\]

  1. Print the results formatted with two decimal places, one per line.

📌 Important:

  • Use floating-point division to avoid truncated results.
  • The output order must be: Accuracy, Precision, Sensitivity, and F1-score.
  • See the interactive simulation for this EP at Figure 1.12.

1.18.5.3 📌 Example Execution

Input Output Observation
40 0.75 Accuracy
10 0.73 Precision
15 0.80 Sensitivity
35 0.76 F1-score

(Note: TP=40, FN=10, FP=15, TN=35. Total cases = 100)

🎮 Simulator EP01_02: Predictive Performance — ML Metrics Confusion Matrix & Metrics

Select a predefined scenario or adjust the sliders to observe the real-time impact on the confusion matrix and evaluation metrics.

INPUTS (MATRIX PARAMETERS)
40
10
15
35
DISCRETE CONFUSION MATRIX
Pred +
Pred −
Actual +
TP
40
FN
10
Actual −
FP
15
TN
35
REAL-TIME CALCULATED METRICS
Accuracy 0.75
(TP + TN) / Total
Precision 0.73
TP / (TP + FP)
Sensitivity (Recall) 0.80
TP / (TP + FN)
F1-Score (Harmonic Mean) 0.76
2 · (P · R) / (P + R)
Total Samples: 100
Figure 1.12: EP01_02 Simulator: Predictive Performance — ML Metrics
# your solution
TestSuite("EP01_02.py").run()
✔️ EP01_02.cases already exists in casos/
📋 5 case(s) loaded from casos/EP01_02.cases
💥 File EP01_02.py not found.

1.18.6 EP01_03 📈 Mean Average Precision (mAP) — Precision-Recall Curve

In this activity, you will evaluate a binary classifier (e.g., deforestation detection in satellite images, see dgi.inpe.br) using the Precision-Recall curve and the mAP (Mean Average Precision) metric. mAP is standard in competitions such as COCO (Common Objects in Context) and PASCAL VOC (Visual Object Classes) and in YOLO (You Only Look Once) models.

1.18.6.1 🧠 Why is mAP the standard metric?

In EP01_02, you saw that the choice of threshold significantly alters Precision and Recall. The mAP (Mean Average Precision) addresses this: it evaluates the model at multiple thresholds (each threshold should generate a different confusion matrix) and summarizes performance by the area under the Precision-Recall (P-R) curve.

While the F1-Score examines a single equilibrium point, mAP considers the entire curve. The closer to 1.0, the better the detector across all thresholds and classes (e.g., coins of 25, 50, and 1 real).

Metric What it summarizes Limitation
F1-Score P × R balance at a single threshold Depends on the chosen threshold
AP Area under the P-R curve for one class Valid only for a single class
mAP Average of APs across all classes More complex to implement

References: Roboflow — mAP · Explanatory video

1.18.6.2 🔢 How mAP is calculated — step by step

  1. Fixed thresholds (always use this list):

    limiares = [0.00, 0.09, 0.21, 0.31, 0.39, 0.52, 0.60, 0.71, 0.81, 0.89, 1.00]
  2. For each threshold (t), classify the samples: predito = 1 if confiança ≥ t, else 0.
    Compute TP, FP, FN, TN and obtain Precision((t)) and Recall((t)).

  3. Build the P-R curve: pairs (Recall((t)), Precision((t))), ordered by increasing Recall.

  4. Monotonize Precision: \[P_{\text{mono}}[i] = \max_{j \ge i} P[j]\]

  5. Compute the AP (area under the monotonic curve) using the trapezoidal rule (a more accurate approximation than the simple Riemann sum): \[AP = \sum_{i=1}^{m-1} \frac{P_{\text{mono}}[i-1] + P_{\text{mono}}[i]}{2} \cdot (S[i] - S[i-1])\]

  6. mAP = average of the APs across all classes. In this assignment, there is only 1 class, so mAP = AP.

Note

📐 Summary of the difference:
The Riemann sum approximates the area using rectangles, which may underestimate or overestimate. The trapezoidal rule uses trapezoids, reducing error by considering the average of the values at the interval endpoints, and is generally more accurate for piecewise smooth functions, such as the Precision-Recall curve.

1.18.6.3 📋 Task

Read an integer n (number of samples). Then read n lines, each containing: true (0 or 1) and confidence (float 0.0–1.0).

Calculate and print, for the threshold 0.85 (index 9 in the list):

  • Confusion Matrix (TP, FN, FP, TN)
  • Accuracy, Precision, Recall, and F1-Score

Then, for all thresholds, print:

  • Raw Precisions, monotonic Precisions, and Recalls, separated by ,
  • Final mAP

1.18.6.4 📌 Important

  • Fixed threshold for the individual metrics: 0.85
  • Safe division: if the denominator is zero, use 0
  • Formatting: two decimal places
  • Monotonize from back to front
  • Figure 1.13 presents a simulation of this problem

1.18.6.5 📌 Example Run

Input Expected Output
7
0 0.94
1 0.80
1 0.69
0 0.67
1 0.30
1 0.15
1 0.15
# METRICS FOR THRESHOLD 0.85 #
Confusion Matrix:
TP = 0, FN = 5
FP = 1, TN = 1

Evaluation Metrics:
Accuracy: 0.14
Precision: 0.00
Recall: 0.00
F1-Score: 0.00

# METRICS FOR ALL THRESHOLDS #
Precisions: 0.00, 0.00, 0.00, 0.50, 0.50, 0.50, 0.50, 0.50, 0.60, 0.71, 0.71
Monotonic Precisions: 0.71, 0.71, 0.71, 0.71, 0.71, 0.71, 0.71, 0.71, 0.71, 0.71, 0.71
Recalls: 0.00, 0.00, 0.00, 0.20, 0.40, 0.40, 0.40, 0.40, 0.60, 1.00, 1.00
mAP: 0.71

1.18.6.6 🐍 Tip for calculating AP (with trapezoid rule)

def calcular_AP(verdades, confiancas, limiares):
    m = len(limiares)
    precisoes = [0.0] * m
    sensibilidades = [0.0] * m
    for i in range(m):
        p, s = calcular_metricas(verdades, confiancas, limiares[i])
        precisoes[m-1-i] = p
        sensibilidades[m-1-i] = s
    prec_mono = precisoes.copy()
    for i in range(m-2, -1, -1):
        if prec_mono[i] < prec_mono[i+1]:
            prec_mono[i] = prec_mono[i+1]
    AP = 0.0
    for i in range(1, m):
        # Trapezoid rule: average of heights times the base
        area_trapezio = (prec_mono[i-1] + prec_mono[i]) / 2.0
        AP += area_trapezio * (sensibilidades[i] - sensibilidades[i-1])
    return precisoes, prec_mono, sensibilidades, AP
📊 Simulator EP01_03: Precision-Sensitivity Curve & mAP mAP & P-S Curve

Edit the samples (true class and confidence) or choose a predefined scenario to visualize the confusion matrix, the P-S curve, and the mAP value in real time.

SAMPLES (TRUE CLASS | CONFIDENCE)
# Truth Confidence
THRESHOLD FOR INDIVIDUAL METRICS
0.85
Thresholds: 0.00 · 0.09 · 0.21 · 0.31 · 0.39 · 0.52 · 0.60 · 0.71 · 0.81 · 0.89 · 1.00
METRICS AT THRESHOLD 0.85
Pred +
Pred −
Real +
TP
0
FN
5
Real −
FP
1
TN
1
Accuracy
0.14
Precision
0.00
Sens.
0.00
F1
0.00
PRECISION-SENSITIVITY CURVE
mAP = 0.71
P-S Curve Monotonic Area (AP)
Threshold Prec. P.mono Sens.
Figure 1.13: Simulator EP01_03: Mean Average Precision (mAP) and P-R Curve
# your solution
TestSuite("EP01_03.py").run()
✔️ EP01_03.cases already exists in casos/
📋 5 case(s) loaded from casos/EP01_03.cases
💥 File EP01_03.py not found.

1.18.7 EP01_04 🖼️ Reading and Information from a Matrix Image

In this activity, you must write a program that processes a digital image represented as a matrix of grayscale pixels.

  • Read two integers L and C, representing the number of rows and columns.
  • Read the L * C integer values that compose the image matrix (each value between 0 and 255).
  • Calculate and print the following information:
  1. The number of rows.
  2. The number of columns.
  3. The value of the largest pixel (Maximum).
  4. The value of the smallest pixel (Minimum).
  5. The arithmetic Mean of all pixels.

📌 Important:

  • The output must follow exactly the labeled format (e.g., Linhas: X).
  • The mean value must be formatted with two decimal places.
  • See an interactive simulator for this question at Figure 1.14 (interactive grid for visualizing intensities and real-time calculations).

1.18.7.1 🧠 Why Does This Matter? – The Image as Data

Every digital image is, at its core, a data structure. In 8-bit grayscale, each pixel is a scalar value. Extracting basic statistics is the first step toward:

Operation Practical Utility
Maximum/Minimum Identifying whether the image is “washed out” (low contrast) or saturated.
Mean Calculating the overall brightness of the scene for exposure adjustments.
Normalization Rescaling values to ranges such as \([0, 1]\) in neural networks.

1.18.7.2 📋 Task (VPL specification)

Input:

The first line contains the integer L (rows).

The second line contains the integer C (columns).

The following lines contain the elements of the matrix.

Output:

Five lines formatted according to the example:

Linhas: L

Colunas: C

Max: V

Min: V

Media: V.VV

1.18.7.3 📌 Examples

Input Output Observation
2
3
0 128 255
50 100 200
Linhas: 2
Colunas: 3
Max: 255
Min: 0
Media: 122.17
Small high-contrast image
📊 Simulator EP01_04: Local Pixel Statistics 5x5 Matrix

Click on any pixel of the matrix to increment its gray level (step of +51) or use the predefined actions below to observe the limits and the global average.

Global Mean (µ)
0.00
Maximum Value
0
Minimum Value
0
Figure 1.14: EP01_04 Simulator: Pixel Statistics in Discrete 5x5 Matrix
# your solution
TestSuite("EP01_04.py").run()
✔️ EP01_04.cases already exists in casos/
📋 5 case(s) loaded from casos/EP01_04.cases
💥 File EP01_04.py not found.

1.18.8 EP01_05 🔄 Negative of a Grayscale Image

In this activity, you must write a program that computes the negative of a digital image.

  • Read two integers L and C, representing the number of rows and columns.
  • Read the integer values that make up the image matrix.
  • For each pixel, apply the inversion transformation:

\[pixel_{negative} = 255 - pixel_{original}\]

  • Print the resulting matrix, preserving the original format (L rows and C columns).

📌 Important:

  • The values in each row of the output must be separated by a single space.
  • The output must contain only the numbers of the resulting matrix.
  • See an interactive simulator for this problem at Figure 1.15 (real-time comparison between the original matrix and its negative).

1.18.8.1 🧠 Why Does This Matter? – Intensity Inversion

The negative is a basic linear transformation that inverts the brightness scale. It is an essential tool for the human eye to identify light details that are “hidden” in darker backgrounds, being widely used in:

Application Utility
Medical Imaging Enhances the visualization of anomalies in dense tissues (e.g., X-rays).
Astronomy Highlights faint galaxies and nebulae against the void of space.
Digital Arts Aesthetic effects and preparation of selection masks.

1.18.8.2 📋 Task (Specification for VPL)

Input:

The first line contains the integer L.

The second line contains the integer C.

The following lines contain the elements of the matrix.

Output:

The inverted matrix with L rows and C columns.

1.18.8.3 📌 Examples

Input Output Observation
2
3
0 128 255
50 100 255
255 127 0
205 155 55
Where it was 0 (black) becomes 255 (white)
🌓 Simulator EP01_05: Image Negative Transformation p' = 255 - p

Click on the pixels of the matrix Original (p) to change their grayscale levels (step of +51) and observe the effect of complementary inversion on the matrix Negative (255 - p).

ORIGINAL (p)
NEGATIVE (255 - p)
💡 The negative transformation maps dark tones (close to 0) to light tones (close to 255) and vice versa, being useful for highlighting dark details on light backgrounds.
Figure 1.15: EP01_05 Simulator: Negative Image Transformation (Intensity Inversion)
# your solution
TestSuite("EP01_05.py").run()
✔️ EP01_05.cases already exists in casos/
📋 7 case(s) loaded from casos/EP01_05.cases
💥 File EP01_05.py not found.

1.18.9 EP01_06 🎨 RGB → Grayscale Conversion (ITU-R BT.601)

In this activity, you must write a program that converts colored pixels (RGB) to grayscale using the physiological weighting of the ITU-R BT.601 standard.

  • Read two integers L and C, representing the number of rows and columns.
  • Read L × C triples of integers, where each triple represents the R (Red), G (Green), and B (Blue) channels of a pixel.
  • For each pixel, compute the grayscale value (\(g\)) using the formula:

\[g = \text{round}(0.299 \times R + 0.587 \times G + 0.114 \times B)\]

  • Print the resulting matrix (L rows and C columns) containing the converted integer values.

📌 Important:

  • Use the round() function from your language to ensure correct rounding to the nearest integer.
  • The output should contain only the grayscale values, preserving the matrix structure (separated by spaces within each row).
  • See an interactive simulator for this problem at Figure 1.16 (adjust the sliders to see how each color contributes to the final brightness).

1.18.9.1 🧠 Why not just use the average?

The human eye does not perceive all colors with the same intensity. We are much more sensitive to Green than to Blue due to our biological evolution. The ITU-R BT.601 standard uses specific weights to create a grayscale image that appears naturally correct to our vision:

Channel Weight Human Perception
🟢 Green 58.7% Maximum sensitivity (distinguishing foliage).
🔴 Red 29.9% Medium sensitivity.
🔵 Blue 11.4% Low sensitivity (darker shades).

1.18.9.2 📋 Task (VPL specification)

Input:

The first line contains the integer L.

The second line contains the integer C.

The following lines contain triples of integers R G B for each pixel.

Output:

The grayscale matrix with L rows and C columns.

1.18.9.3 📌 Examples

Input Output Observation
1
3
255 0 0 0 255 0 0 0 255
76 150 29 Note how Green (150) is brighter than Blue (29)
🎨 Simulator EP01_06: Color Perception & ITU-R BT.601 weights RGB → Grayscale

Adjust the intensity of the Red (R), Green (G), and Blue (B) channels to observe how each component contributes with weight to the final luminance value in gray levels.

COLOR CHANNEL ADJUSTMENT
80
180
30
Original RGB
Gray Tones
💡 The Green (G) channel has the highest weight (0.587) due to the greater spectral sensitivity of the human visual system to green wavelengths.
Figure 1.16: EP01_06 Simulator: RGB to Grayscale Conversion (Perceptual ITU-R BT.601 Weighting)
# your solution
TestSuite("EP01_06.py").run()
✔️ EP01_06.cases already exists in casos/
📋 7 case(s) loaded from casos/EP01_06.cases
💥 File EP01_06.py not found.

1.18.10 EP01_07 ⚫ Manual Thresholding: Binary Image

In this activity, you must write a program that performs image segmentation through thresholding.

  • Read two integers L and C, representing the dimensions of the matrix.
  • Read an integer T, which will be the threshold (cutoff) value.
  • Read the integer values of the matrix.
  • For each pixel \(p\), apply the following binarization rule:

\[\text{result} = \begin{cases} 255 & \text{if } p > T \\ 0 & \text{if } p \le T \end{cases}\]

  • Print the resulting matrix containing only the values 0 or 255.

📌 Important:

  • Pay attention to the operator: the pixel only becomes white (255) if it is strictly greater than \(T\).
  • The output must preserve the matrix structure (L rows and C columns).
  • See an interactive simulator for this problem at Figure 1.17 (adjust the \(T\) slider to observe how objects are isolated from the background).

1.18.10.1 🧠 What is Segmentation?

Thresholding is the simplest method for separating objects of interest from the image background. By converting grayscale tones into pure black and white, we create a binary map that facilitates object counting or shape identification:

Pixel Value (\(p\)) Condition Final Result
Dark (\(p \le T\)) Background/Noise 0 (Black)
Light (\(p > T\)) Object/Highlight 255 (White)

1.18.10.2 📋 Task (specification for VPL)

Input:

The first line contains the integer L.

The second line contains the integer C.

The third line contains the integer T (threshold).

The following lines contain the elements of the matrix.

Output:

The binarized matrix (0 or 255) with L rows and C columns.

1.18.10.3 📌 Examples

Input Output Observation
2
4
128
0 100 128 200
50 129 255 64
0 0 0 255
0 255 255 0
Note that the value 128 became 0 (since \(128 \le 128\))
🎛️ EP01_07 Simulator: Interactive Image Thresholding Binary: 0 or 255
128
Input (Grayscale)
Output (Binary Mask)
Pixels with intensity greater than 128 (p > 128) become white (255); otherwise, they become black (0).
Figure 1.17: Simulator EP01_07: Interactive Global Thresholding (Binarization p > T)
# your solution
TestSuite("EP01_07.py").run()
✔️ EP01_07.cases already exists in casos/
📋 7 case(s) loaded from casos/EP01_07.cases
💥 File EP01_07.py not found.

1.18.11 EP01_08 🎨 Intensity Range Remapping

In this activity, you must write a program that applies distinct linear transformations to different intensity regions of the image.

  • Read two integers L and C, representing the matrix dimensions.
  • Read the integers T (threshold), δ₁ (delta 1), and δ₂ (delta 2).
  • Read the integer values of the matrix.
  • For each pixel \(p\), apply the conditional remapping rule:

\[\text{result} = \begin{cases} p + \delta_1 & \text{if } p < T \\ p + \delta_2 & \text{if } p \ge T \end{cases}\]

  • Print the resulting matrix with the new intensity values.

📌 Important:

  • δ₁ is the offset applied to dark pixels (below the threshold).
  • δ₂ is the offset applied to bright pixels (greater than or equal to the threshold).
  • Test cases guarantee that the result will always be within the valid range of 0 to 255, so there is no need to handle saturation or rounding.
  • The output must preserve the matrix structure (L rows and C columns).

1.18.11.1 🧠 Conditional Pixel Transformation

In Digital Image Processing (DIP), we often need to handle regions independently. This technique allows, for example, brightening only the shadows of a photograph (increasing dark pixels) without blowing out the highlights of already bright areas, or vice versa.

Intensity Range Condition Operation
Dark Pixels \(p < T\) \(p + \delta_1\)
Bright Pixels \(p \ge T\) \(p + \delta_2\)

1.18.11.2 📋 Task (VPL specification)

Input:

The first line contains the integers L and C.

The second line contains the integers T, δ₁, and δ₂.

The following lines contain the matrix elements.

Output:

The transformed matrix with L rows and C columns, with space-separated values.

1.18.11.3 📌 Examples

Input Output Observation
2 4
128 60 -40
0 100 150 255
80 128 200 30
60 160 110 215
140 88 160 90
Pixels < 128 add 60. Pixels ≥ 128 subtract 40.
🎛️ Simulator EP01_08: Conditional Range Remapping p < T → p + δ₁ | p ≥ T → p + δ₂

Adjust the separation threshold (T) and the brightness shifts (δ₁ and δ₂) to apply differentiated intensity transformations in the dark and light regions of the image.

128
+60
-40
Original Input (p)
Transformed Result
Active rule: p < 128 → p + (+60)  |  p ≥ 128 → p + (-40)
Figure 1.18: EP01_08 Simulator: Conditional Range Remapping (Brightness and Contrast by Threshold)
# your solution
TestSuite("EP01_08.py").run()
✔️ EP01_08.cases already exists in casos/
📋 8 case(s) loaded from casos/EP01_08.cases
💥 File EP01_08.py not found.

1.18.12 EP01_09 🏁 Checkerboard Pattern: Chess Matrix

In this activity, you must write a program that generates a synthetic image in the pattern of a chessboard.

  • Read two integers L (rows) and C (columns).
  • Generate a matrix where the values alternate between 0 (black) and 1 (white).
  • The filling logic must follow the parity rule:
  • The element at position \((0,0)\) is always 0.
  • A pixel at position \((i, j)\) will be 1 if the sum of the indices \((i + j)\) is odd.
  • A pixel at position \((i, j)\) will be 0 if the sum of the indices \((i + j)\) is even.

📌 Important:

  • The colors must alternate correctly both horizontally and vertically.
  • The output must be the matrix printed line by line, with the elements separated by a space.
  • See an interactive simulator for this problem at Figure 1.19 (adjust the dimensions to visualize the construction of the grid and the corresponding textual output).

1.18.12.1 🧠 Synthetic Patterns

Creating geometric patterns is a fundamental exercise for mastering index logic in matrices. In Digital Image Processing, the checkerboard pattern is not merely aesthetic; it is widely used for:

Application Utility
Camera Calibration Estimating intrinsic and extrinsic lens parameters.
Distortion Correction Identifying and correcting the “barrel” or “pincushion” effect in wide-angle lenses.
3D Mapping Projecting known patterns to reconstruct surfaces in structured light systems.

1.18.12.2 📋 Task (specification for VPL)

Input:

A line containing the integer L (rows).

A line containing the integer C (columns).

Output:

The checkerboard matrix with L rows and C columns, printed with spaces between the elements.

1.18.12.3 📌 Examples

Input Output Observation
3
4
0 1 0 1
1 0 1 0
0 1 0 1
Note that each row starts with the inverse of the previous one
🏁 Simulator EP01_09: Checkerboard Matrix Generator (i + j) % 2

Change the number of rows (L) and columns (C) to observe how the parity alternation of grid coordinates builds the binary checkerboard matrix.

×
GRAPHIC GRID
EXPECTED OUTPUT (VALUES)
Figure 1.19: EP01_09 Simulator: Checkerboard Pattern Generator (Parity Logic (i + j) % 2)
# your solution
TestSuite("EP01_09.py").run()
✔️ EP01_09.cases already exists in casos/
📋 7 case(s) loaded from casos/EP01_09.cases
💥 File EP01_09.py not found.

1.18.13 EP01_10 📄 Metadata: Reading a PGM File

In this activity, you must read an image file in PGM (Portable Gray Map) format and extract its dimensions from the header.

  • The PGM (P2) format is a plain text (ASCII) file that stores grayscale images.
  • The file has a header structured as follows:
  1. Version: The identifier P2.
  2. Comments: Optional lines starting with # (should be ignored).
  3. Dimensions: Two integers representing Width and Height.
  4. Maximum: An integer representing the maximum intensity (usually 255).
  • After the header, the pixel data follows.

📌 Important:

  • File Reading: You must open the file indicated in the example using Python’s open() function.
  • Output Order: Contrary to the order present in the file, the expected output must be in tuple format: (Height, Width, Channels).
  • Since PGM files are grayscale, the number of Channels is always 1.
  • See an interactive simulator for this question at Figure 1.20 (adjust the dimensions to see how the ASCII header is generated).

1.18.13.1 🧠 Understanding the PGM Format

The PGM format is one of the simplest for image processing. Because it is plain text, it allows you to view the metadata and even the pixel values by opening the file in a notepad:

Component Example Meaning
Magic Number P2 Identifies that it is a PGM in text format (ASCII).
Comment # CREATOR... Informational line ignored by the processor.
Dimensions 397 343 397 columns (Width) and 343 rows (Height).
Intensity 255 Defines the value of pure white (scale from 0 to 255).

1.18.13.2 📋 Task (VPL specification)

Input:

No keyboard input. The program must read the file "aula01fig03b.pgm" present in the execution directory.

Output:

A tuple containing (Height, Width, 1).

1.18.13.3 📌 Examples

File Name Expected Output Note
“aula01fig03b.pgm” (343, 397, 1) Note the order inversion: Height first
📄 Simulator EP01_10: PGM File Structure ASCII P2 & Format (H, W, C)

Change the width (W) and height (H) dimensions to observe the dynamic assembly of the PGM header and the tuple format of the resulting array in Python (Rows × Columns × Channels).

IMAGE DEFINITIONS
💡 Note the convention: The PGM header declares first W H (Width × Height), while the array in Python/NumPy reports the tuple as (H, W, C) (Rows × Columns × Channels).
FILE CONTENT (.PGM)
P2
# CREATOR: UFABC PDI / EP01_10
397 343
255
120 134 210 0 85 255 ...
Output of Function mm.readImg (Array Format):
(343, 397, 1)
Figure 1.20: Simulator EP01_10: PGM File Structure (ASCII P2 Header and Mapping to Python Tuple)

📝 Note

The file required for this EP will be automatically downloaded from the repository using the following code:

import os, urllib.request

BASE_URL = "https://raw.githubusercontent.com/fzampirolli/pdi-vc/master/all/cap01/imagens"
file = "aula01fig03b.pgm"

opener = urllib.request.build_opener()
opener.addheaders = [('User-agent', 'Mozilla/5.0')]
urllib.request.install_opener(opener)

for f in [file]:
    if not os.path.exists(f):
        url = f"{BASE_URL}/{f}"
        try:
            urllib.request.urlretrieve(url, f)
            print(f"✅ File downloaded: {f}")
        except urllib.error.HTTPError as e:
            print(f"❌ Error {e.code}: Not found at {url}")
# your solution
TestSuite("EP01_10.py").run()
✔️ EP01_10.cases already exists in casos/
📋 1 case(s) loaded from casos/EP01_10.cases
💥 File EP01_10.py not found.

1.18.14 EP01_11 📈 Neighborhood Analysis: 1D Maximum Filter

In this activity, you must implement a simple morphological maximum filter operating on a one-dimensional signal (vector).

  • Read an integer n, representing the size of the vector.
  • Read the n integer elements that make up the original vector v1.
  • Create a new vector v2, where each position \(i\) is the result of comparing the current element with its immediate neighbors:

\[v2[i] = \max(v1[i-1],\; v1[i],\; v1[i+1])\]

📌 Important:

  • Boundaries: At the ends of the vector (indices \(0\) and \(n-1\)), the neighborhood has only two elements (the element itself and the only available neighbor). At index \(0\), compare only \(v1[0]\) and \(v1[1]\). At the last index, compare only \(v1[n-2]\) and \(v1[n-1]\).
  • Output: Print the header “v2:” followed by the values of the resulting vector, one per line.
  • See an interactive simulator for this question at Figure 1.21 (hover over the results to view the neighborhood window used in the calculation).

1.18.14.1 🧠 Why analyze neighbors?

In image processing, the value of a pixel is rarely isolated; it depends on the context around it. The Maximum Filter is the basis of the Dilation operation in mathematical morphology, serving to:

Function Visual Effect
Enhancement Expands bright structures and “thickens” light objects.
Noise Removal Eliminates small black spots (dark “salt and pepper” noise).
Filling Closes small holes or gaps in binary shapes.

1.18.14.2 📋 Task (VPL specification)

Input:

An integer n.

On the following lines, the n integer elements of the vector.

Output:

The string v2: on the first line.

On the following lines, each element of v2 (one per line).

1.18.14.3 📌 Examples

Input Output Observation
5
10
20
5
30
15
v2:
20
20
30
30
30
At index 1: max(10, 20, 5) = 20
📈 Simulator EP01_11: 1D Local Maximum Filter 1x3 Window

Click the elements of v1 (Input) to generate new individual values or hover over the cells of v2 (Output) to inspect the local neighborhood window.

Vector v1 (Input)
⬇️
Vector v2 (Maximum Output)
Hover the mouse cursor over a cell of vector v2 to analyze the local maximum window.
Figure 1.21: EP01_11 Simulator: 1D Local Maximum Filter (1x3 Neighborhood with Border Condition)
# your solution
TestSuite("EP01_11.py").run()
✔️ EP01_11.cases already exists in casos/
📋 7 case(s) loaded from casos/EP01_11.cases
💥 File EP01_11.py not found.
